Specifications:
side 1: Internal Slimline SFF-8654 4i
side 2: 4 x 29pin SFF-8482 connectors with SAS 15pin power port
cable: 30awg
cable length: 0.5/1 Meter
cable Color: Black & Blue.
Description

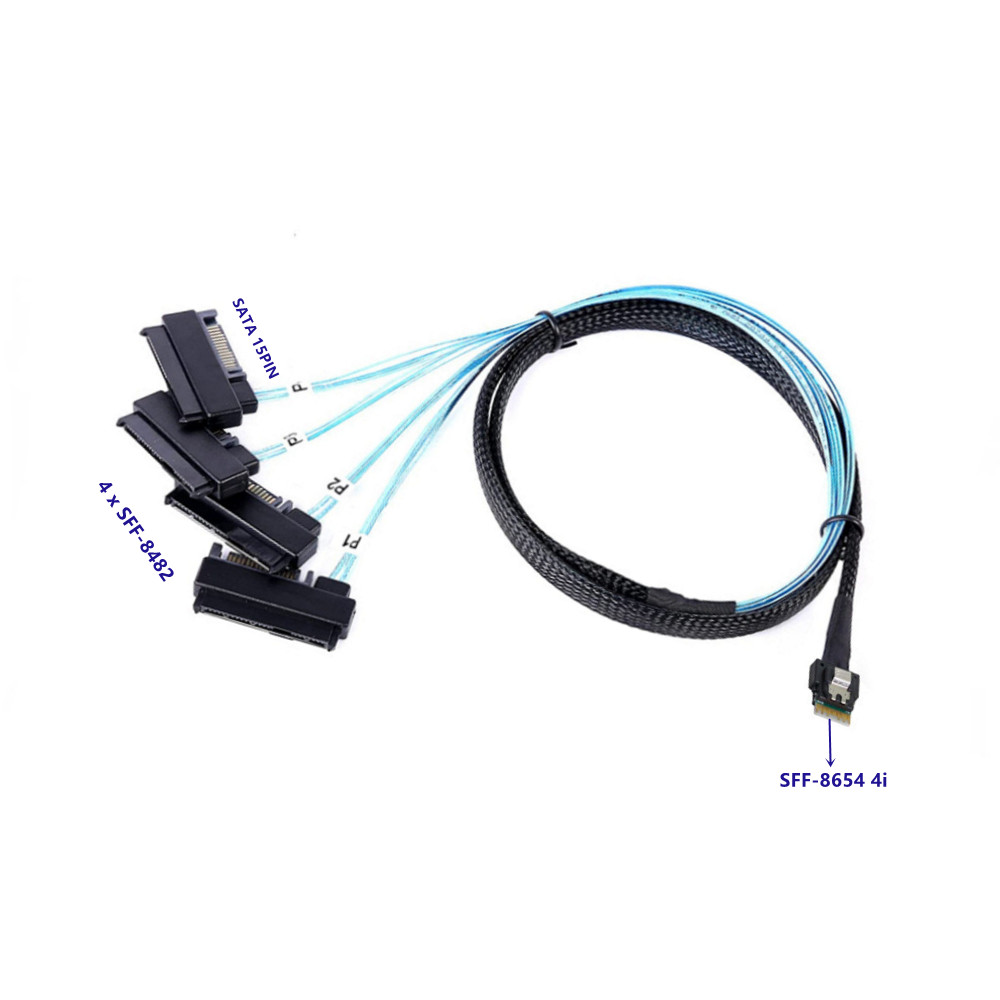

Internal Slimline SFF-8654 4i to 4 x 29Pin SFF-8482 connectors with power connecting a SAS controller (SFF-8654 4i) to four SATA/SAS disks (SFF-8482)
Please note that Slimline (SFF-8654 4i) is host, 4 SAS 29Pin (SFF-8482) is target, internal Mini Serial Attached SCSI x4 (SFF-8654 4i) to (4) x1 (SFF-8482) Serial Attached SCSI (controller based) fan-out cables
Before you buy this cable, Please make sure the Slimline (SFF-8654) on your motherboard or RAID controller. If the Slimline (SFF-8654 4i) on your backplane, this cable will not work with them
Slimline (SFF-8654 4i) connect to the controller, 4 SFF-8482 connect to the HDD (hard disk driver)
Applications
Data/Communications
1.RAID (Redundant Array of Independent Disks )
2.Workstations
3.Rack-mount server
4.Servers
5.Storage rack
Features and Benefits
1.Transmission rate 24Gbps.
2. Meet SAS 4.0 specification.
Electrical Performance
1.Contact Current Rating
0.5Amperes maximum per pin when mated.
2.Voltage Rating
30VAC per contact when mated or unmated.
3.Contact Resistance
30mohm max. initial, 15mohm maximum after stress test.
4.Dielectric Withstanding Voltage
500 VAC for 1 minute no breakdown.
5.Insulation Resistance
1000 Mohm minimum.
Signal Integrity
1. Mated Connector Impedance: 100 ohm±15%
2. Cable Absolute Impedance: 100 ohm±10%
3. Cable Pair Matching: ±5 ohm
4. Common Mode Impedance: 25 to 40 ohms
5. Insertion loss: -6dB maximum up to 4.5Ghz;11dB maximum up to 9Ghz.
6. Crosstalk: -35 dB up to 6Ghz
Product Environmental Compliance
RoHS2.0: Compliant
RoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed
