Product description

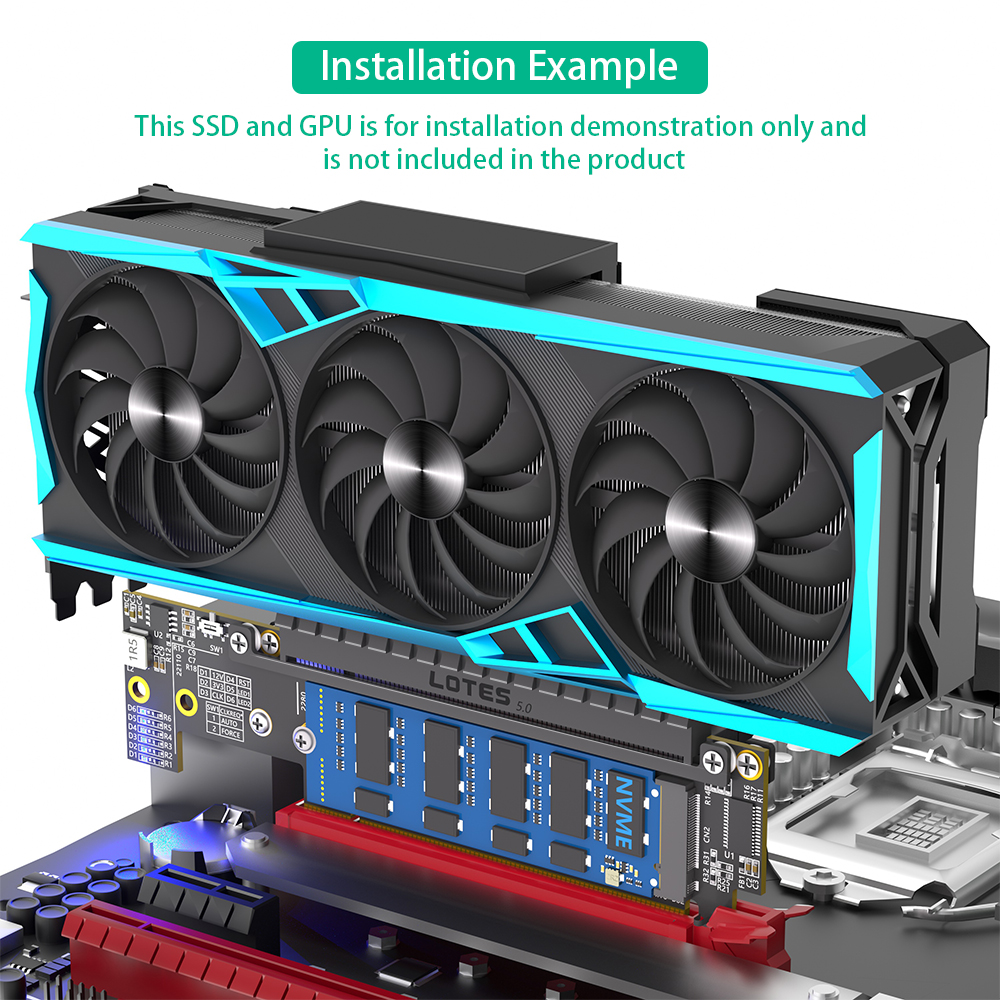

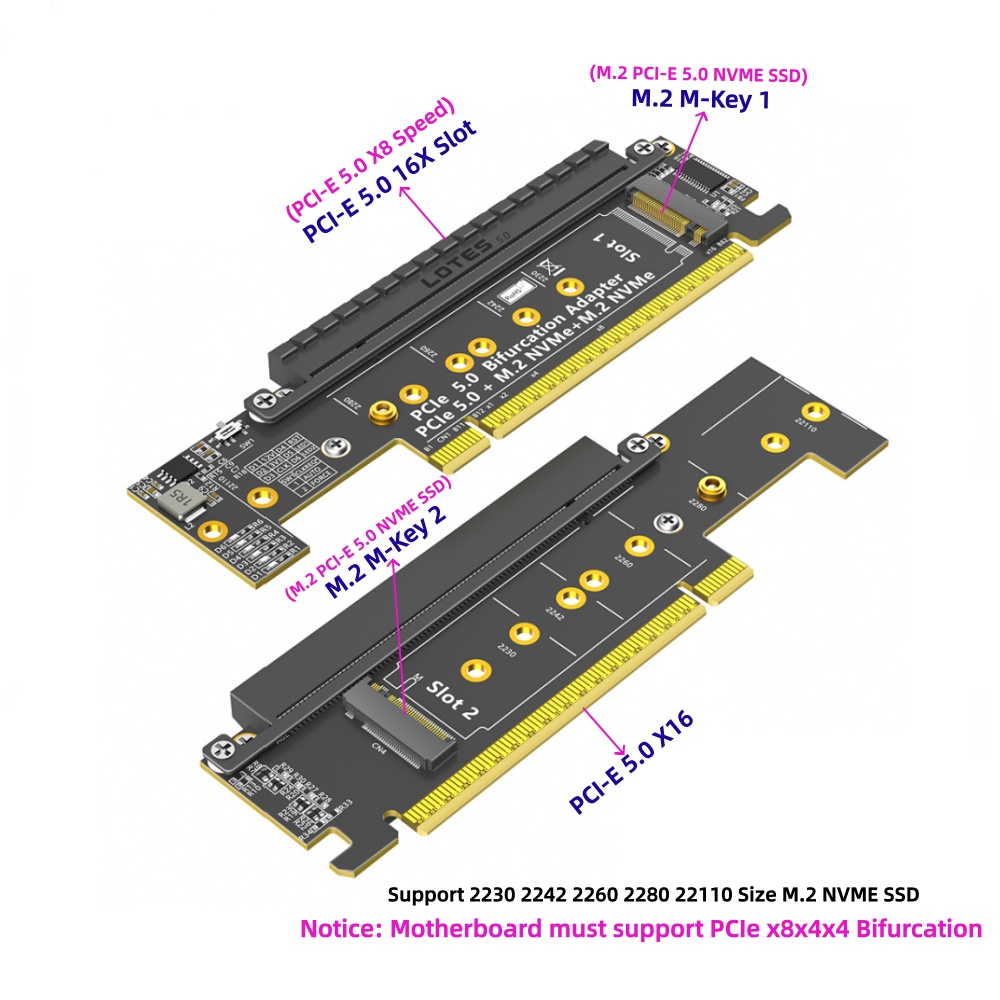

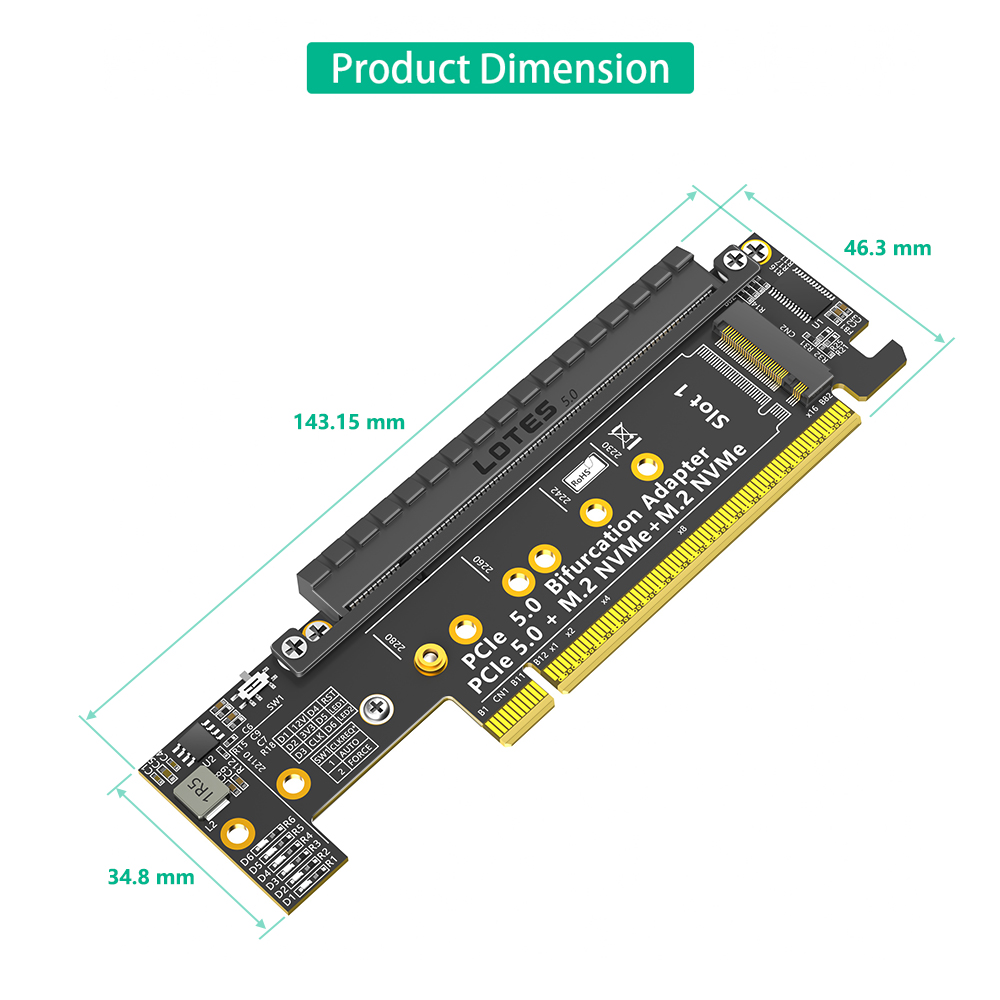

1. Dual NVMe PCIe Adapter can add 2 x M.2 NVMe SSD Slot via PCIe 5.0 x16, but also expand extra PCIe x16 slot (x8 Signal),
which can use for expanding any other PCIe Device 2.Hardware requirement:
01. There is available PCI-e 5.0 or 4.0 x16 Slot on M/B
02. The motherboard can support PCIe x16 Bifurcation itself, and can be set as"PCI-e x8x4x4" in BIOS
03. All of the SSDs are M.2 PCI-e (M Key) NVMe SSD
04. CPU has enough channels to support

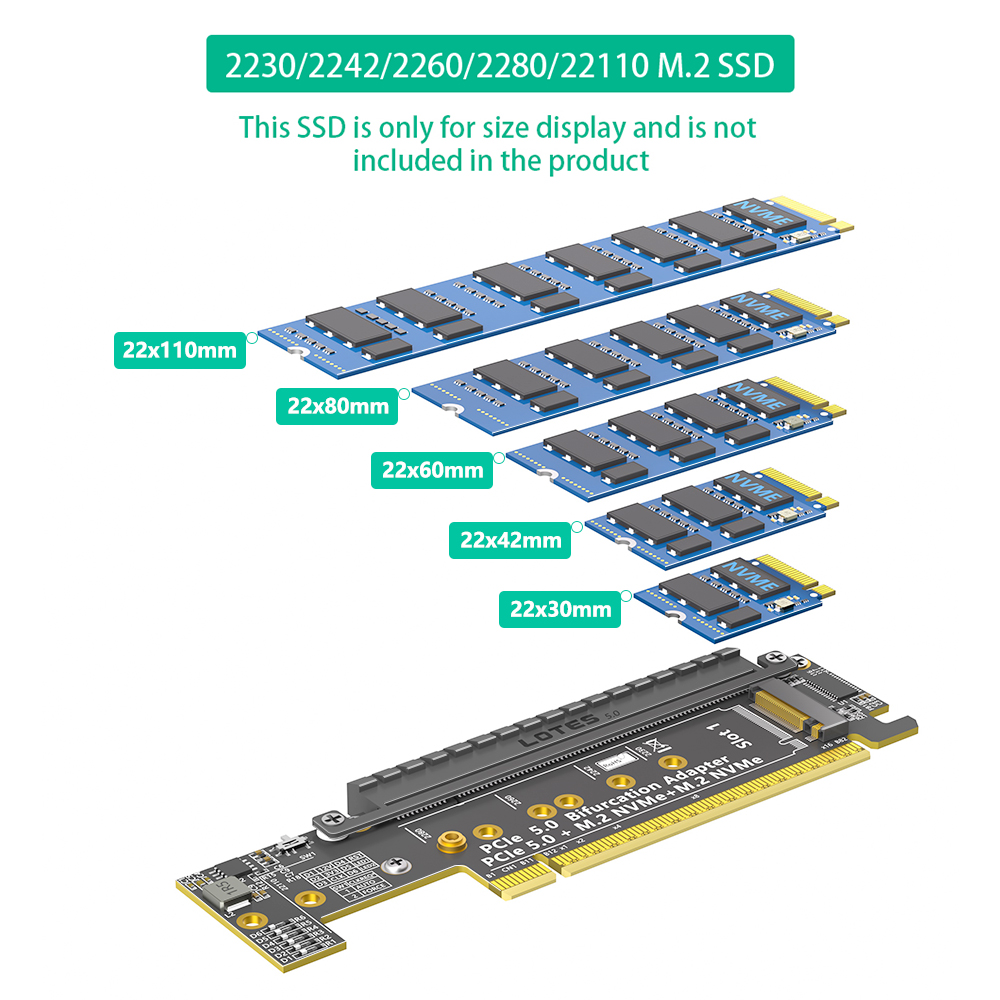

3.Compatible with M.2 PCI-e NVMe SSDs in all sizes:110x22mm, 80x22mm, 60x22mm and 42x22mm, 30x22mm;
Not support any M.2 (SATA-Based B+M Key) SSD; Motherboard Compatibility: Most Server and X299, X399 can support PCIe x8x4x4 Bifurcation

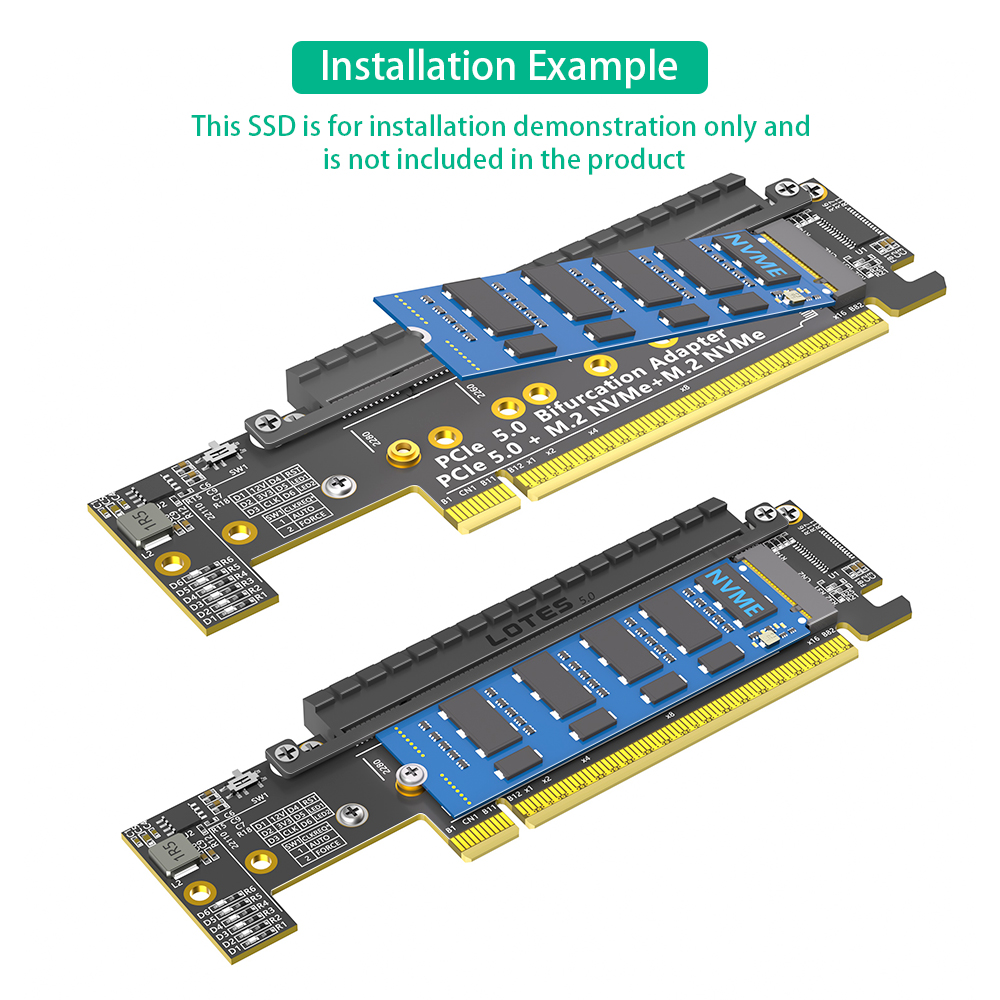

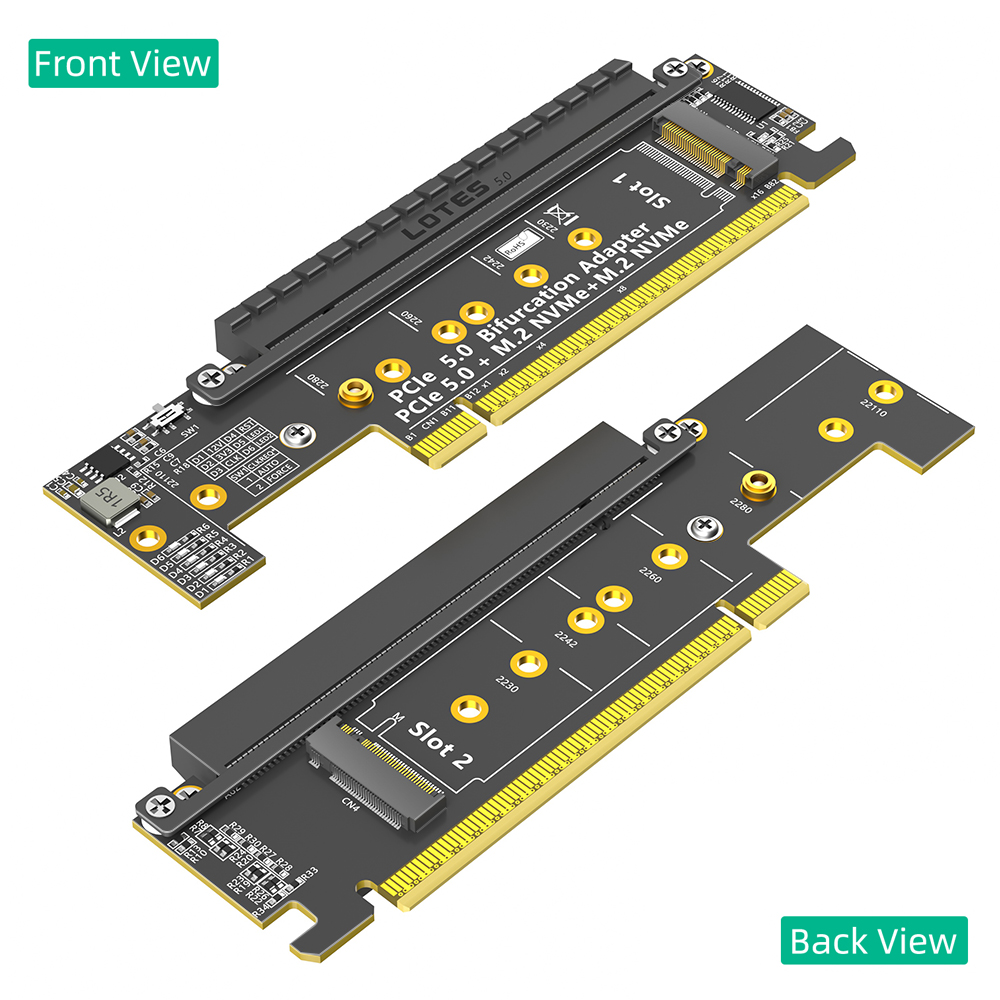

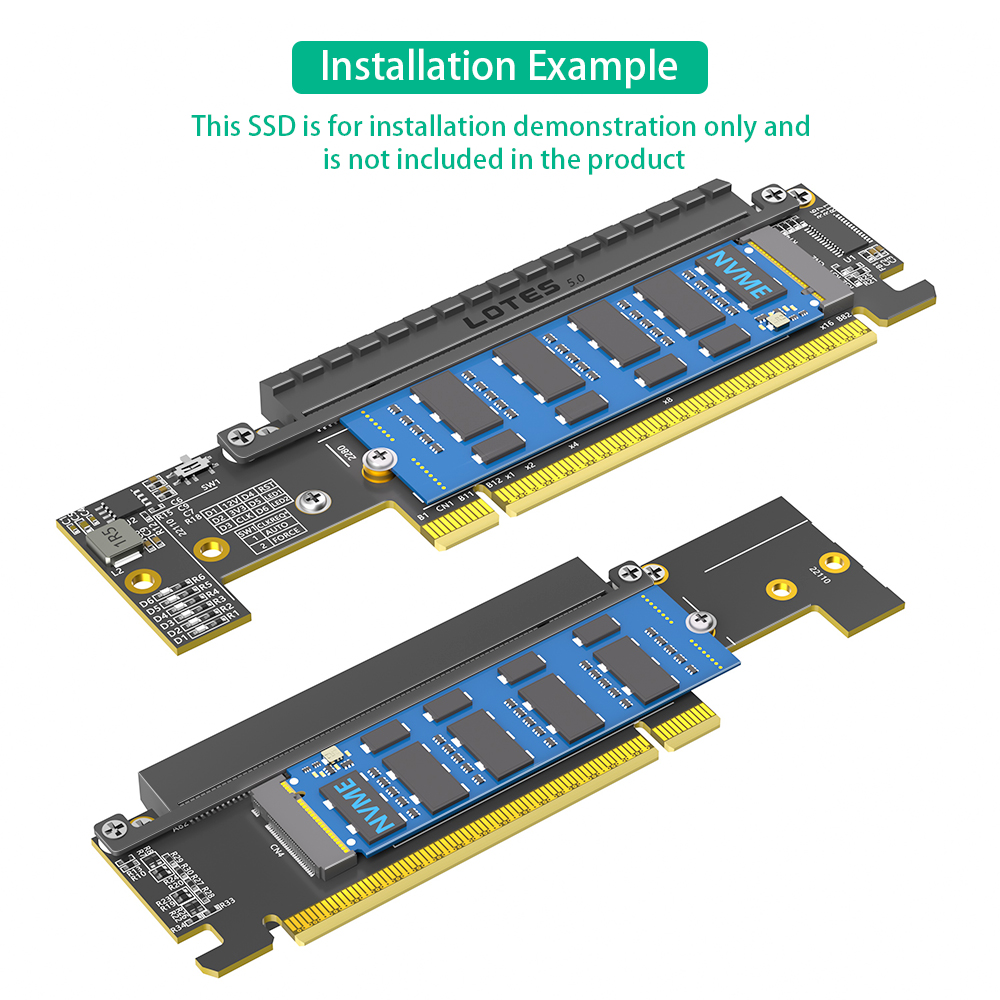

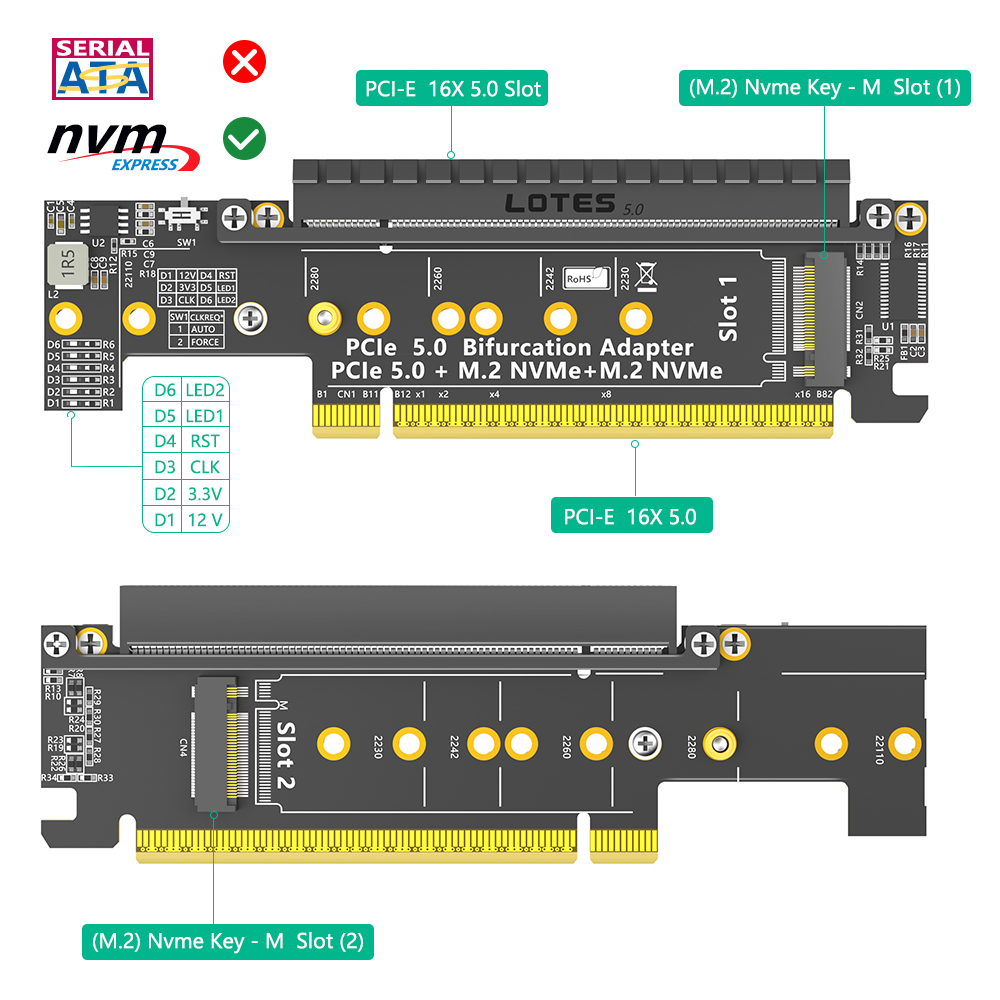

4.Upgraded Design: 1. Two Slots of NVMe SSD are on positive and negative sides. So the card is in small size, And individual LED Indicator design will show each SSD's Working Status.

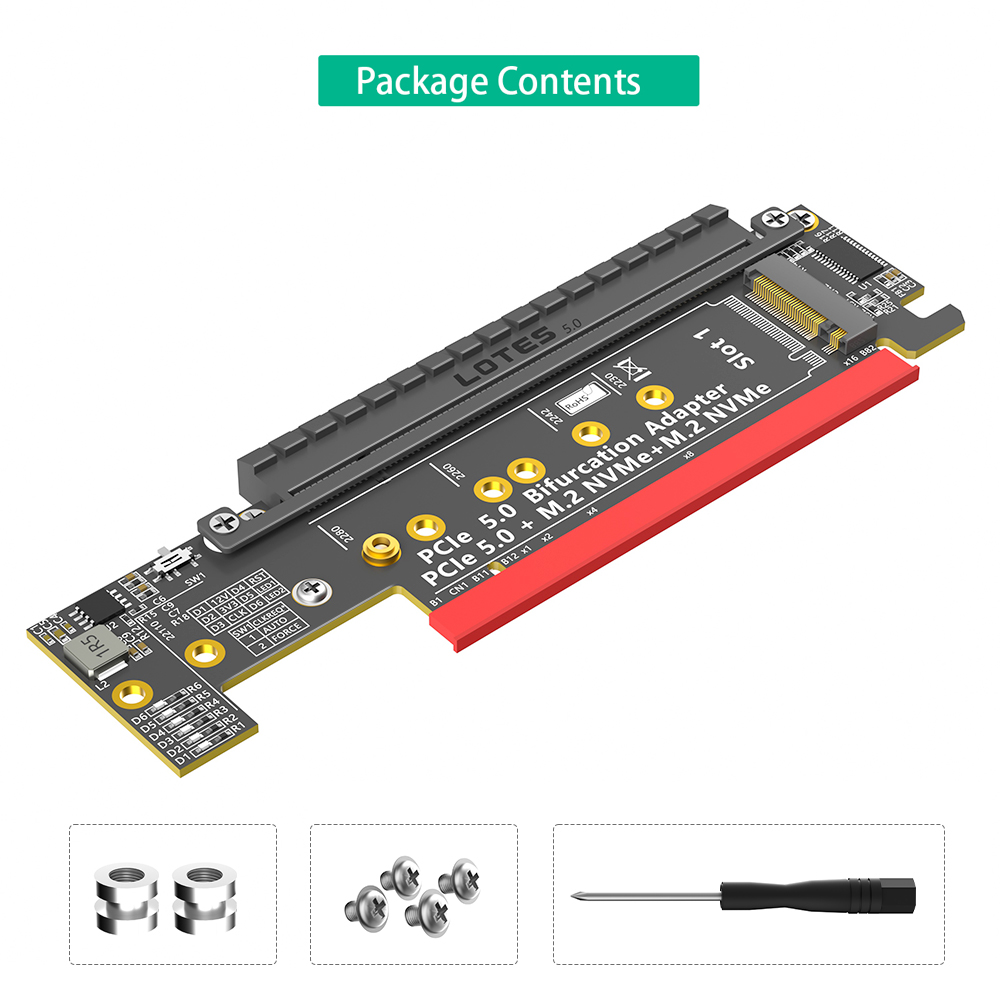

Package Content:
1 x M.2 NVMe to PCI-E 5.0 Adapter
1 x Screw Driver
2 x M2 Sliver screw
2 x Standoff
