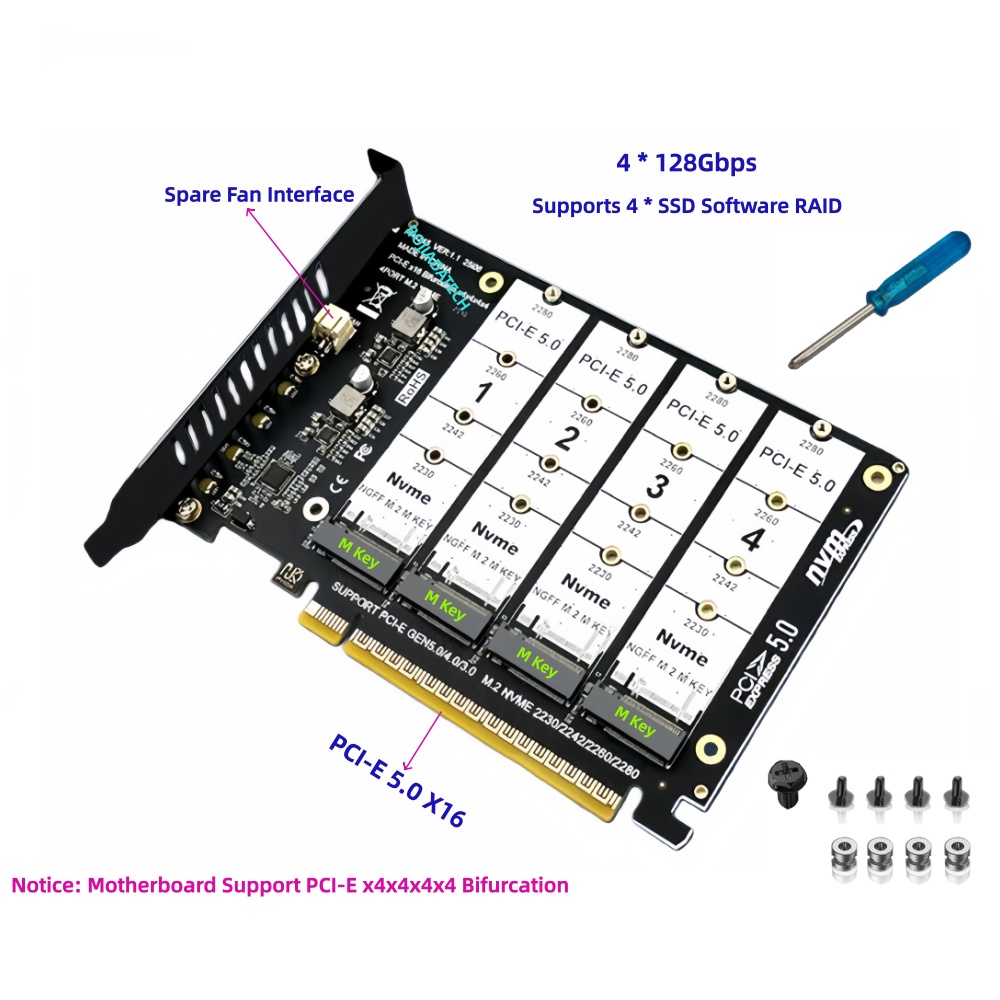

Important Note (Read Before Purchasing) The motherboard must support PCIe x4x4x4x Bifurcation (splitting): This is a prerequisite for using this product. If your motherboard does not support this feature, or if the lanes are set to Auto, only one SSD will be recognized. BIOS Settings: You need to manually set the lane configuration of the corresponding PCIe x16 slot to [x4x4x4x4] mode in your motherboard's BIOS settings. Compatible Motherboards: Mainstream brands such as MSI and ASUS are supported. Please consult your motherboard's manual before purchasing to vconfirm that it supports PCIe splitting. Full Link Support: To achieve maximum speeds, the CPU, motherboard, expansion cards, and SSDs must all fully support PCIe 5.0. PCIe 5.0 X16 Quad M.2 Expansion Card-4-Bay NVMe RAID 0/1/5/JBOD 512Gb/s Speed Supports up to 8TB per SSD compatible with PCIe 4.0/3.0 Extreme Speed: Utilizing the latest generation PCIe 5.0 technology, the theoretical bandwidth reaches up to 512Gbps. Measured speeds exceed 40,000MB/s in RAID 0 mode, and single-drive read speeds exceed 10,000MB/s. Massive Storage: Up to four M.2 2280 NVMe SSDs can be installed simultaneously. Each SSD supports up to 8TB of storage, for a total capacity of an astonishing 32TB. Flexible Configuration:
Supports multiple RAID modes, balancing speed and data security. Windows: RAID 0, RAID 1, RAID 5, JBOD macOS: RAID 0, RAID 1, JBOD Independent Mode: No RAID required, all four SSDs are independently recognized. Broad Compatibility: Backwards compatible with PCIe 4.0/3.0 standards. Includes a standard 2U chassis bracket for compatibility with a wide range of Computer cases. Interface: PCIe 5.0 x16 (supports x16 slots only, not compatible with x1/x4/x8 or PCI slots)

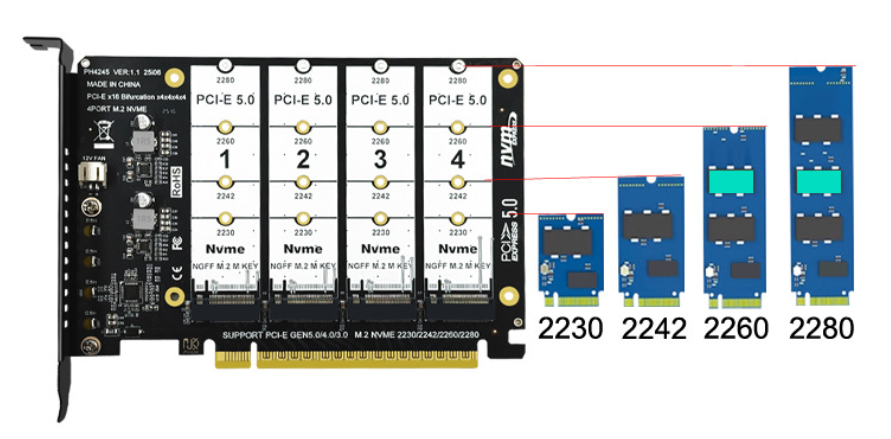

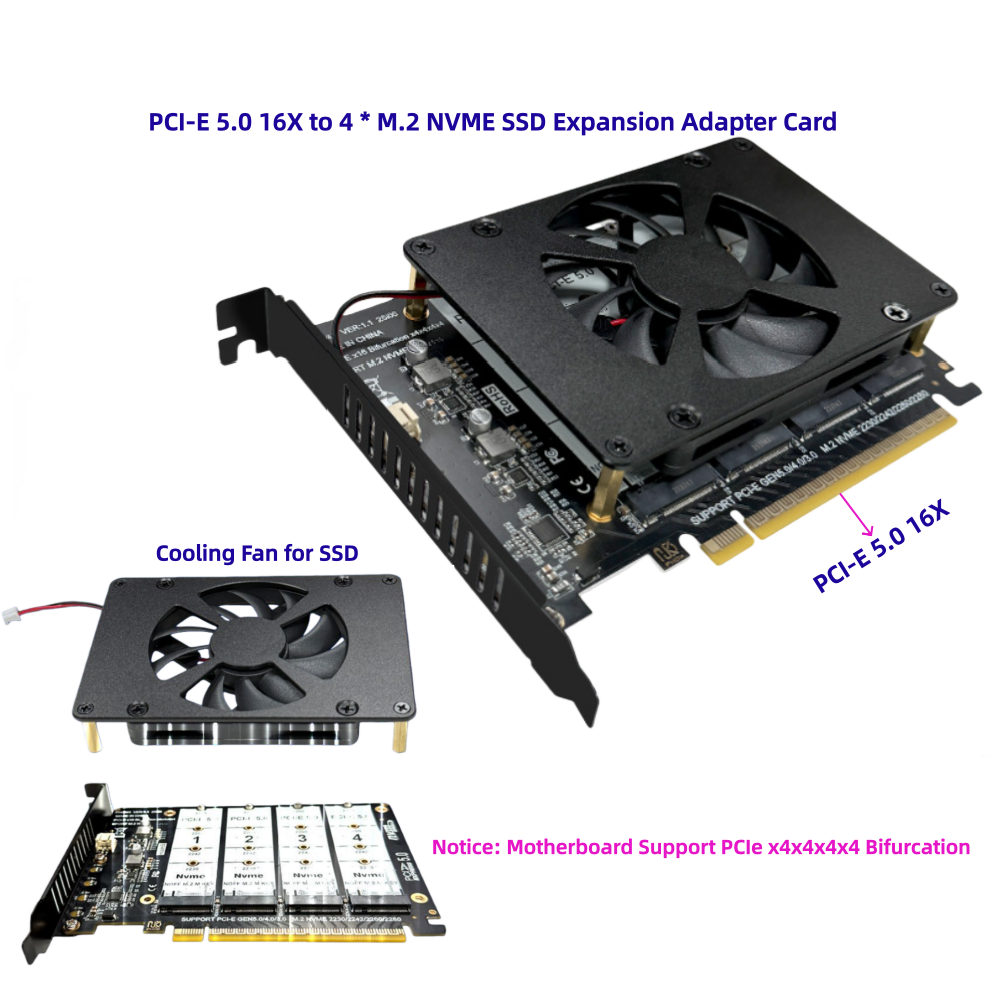

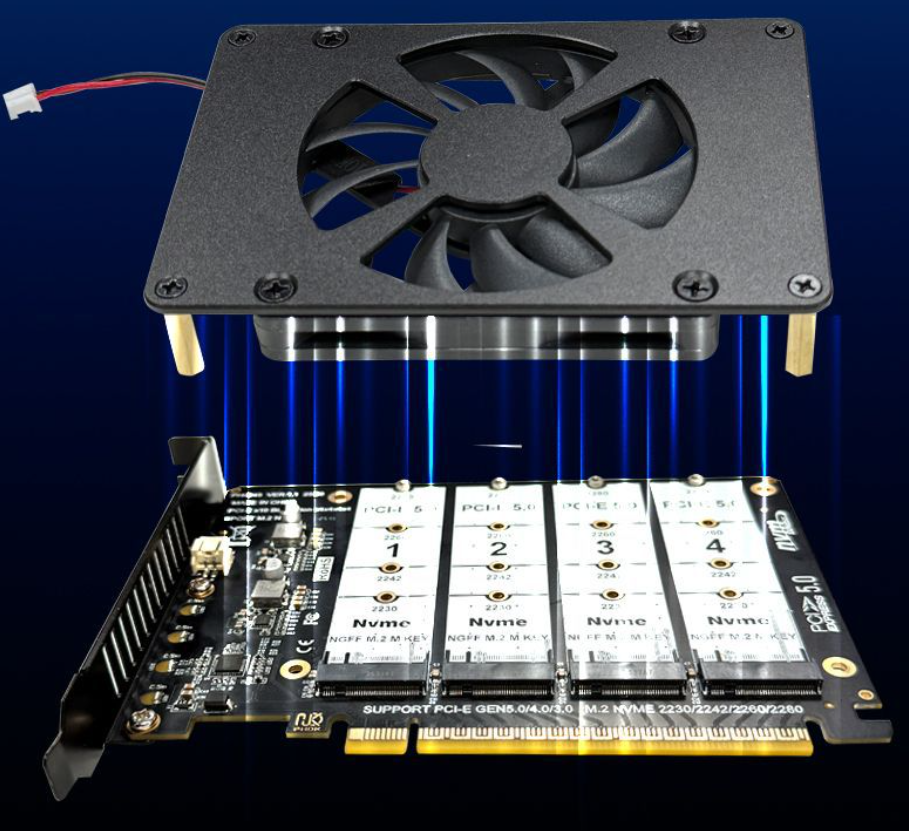

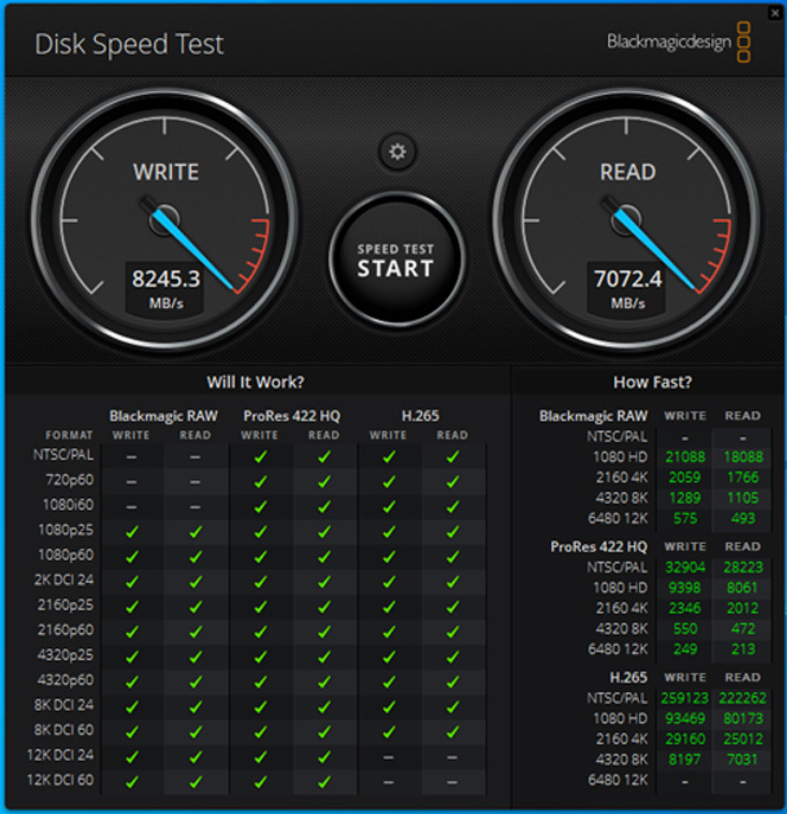

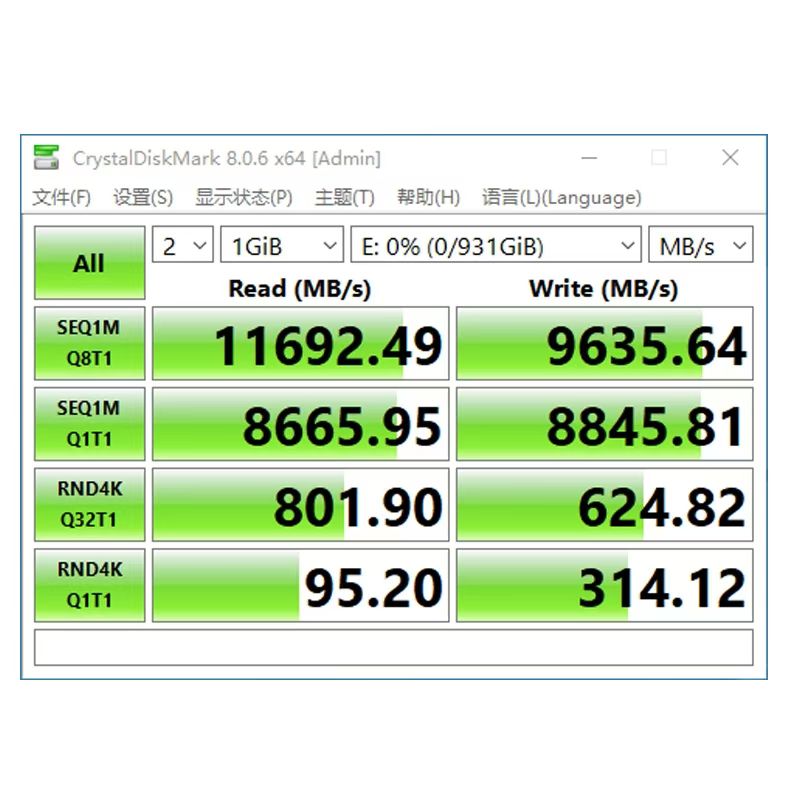

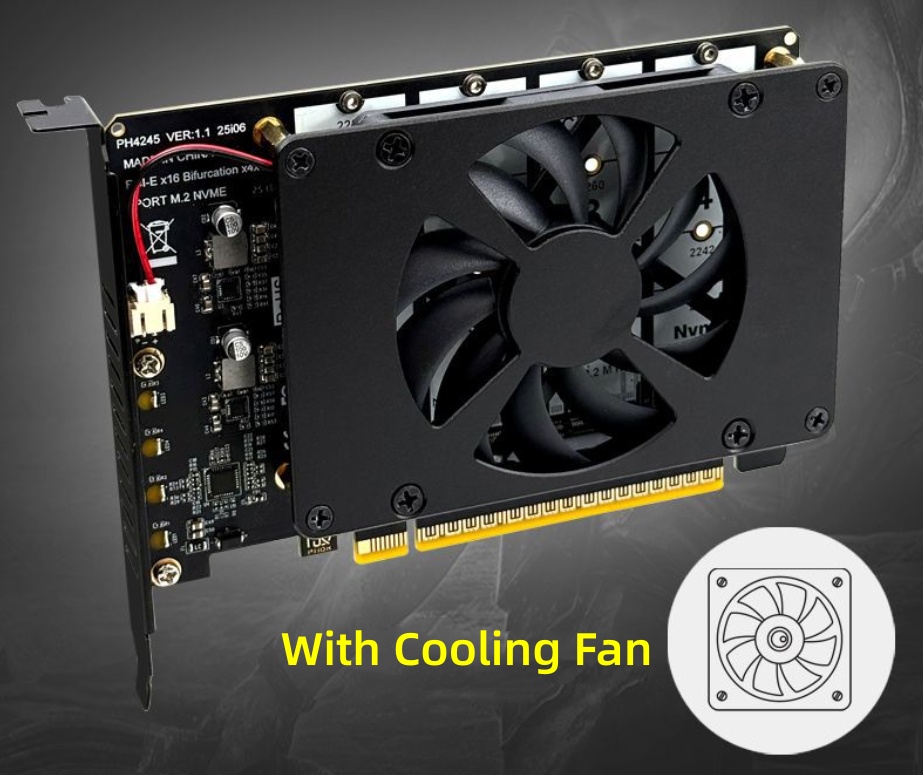

With Cooling Fan Theoretical bandwidth: 512 Gbps Measured speed (RAID 0): 40,000+ MB/s Measured speed per drive (PCIe 5.0 x4): SEQ1M Q8T1: Read 12,351.09 MB/s | Write 10,119.38 MB/s RND4K Q32T16: Read 4,240.80 MB/s | Write 9,452.70 MB/s Supported SSD form factor: M.2 2280 NVMe only (M Key),does not support SATA protocol (B Key) SSDs.
