Description
Specification

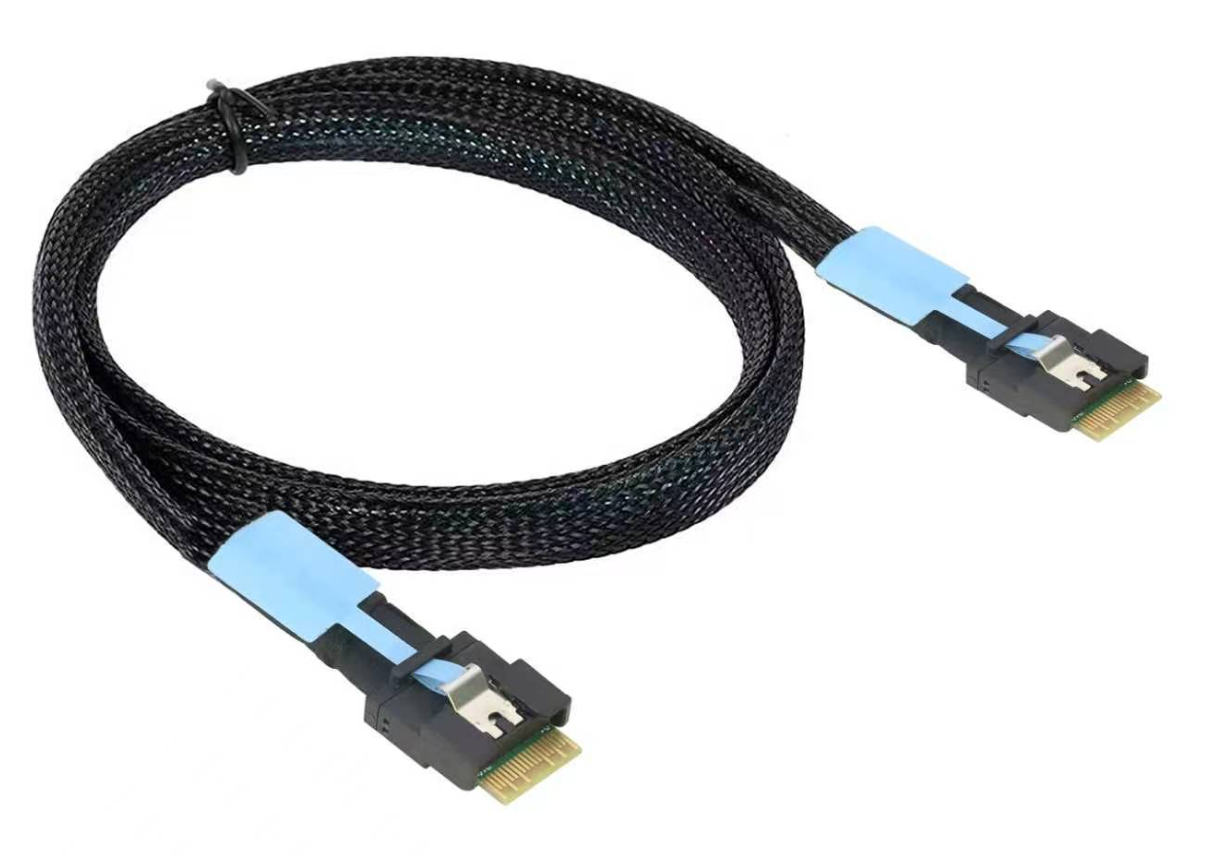

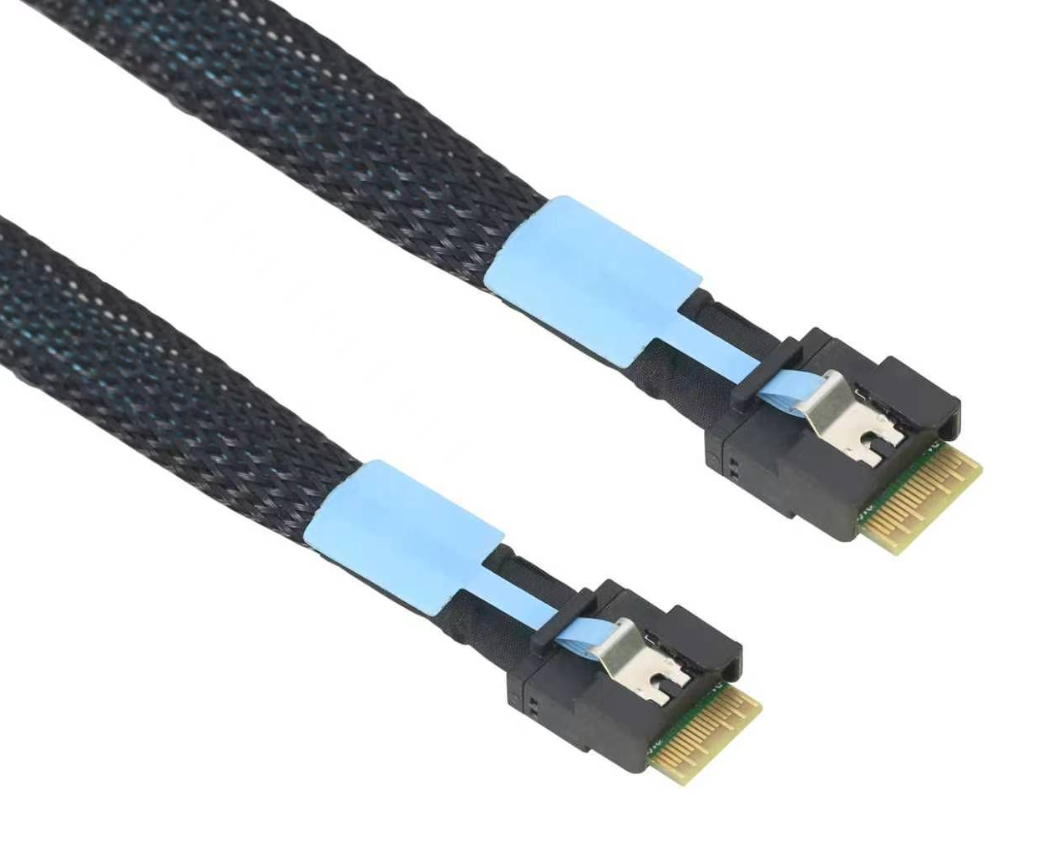

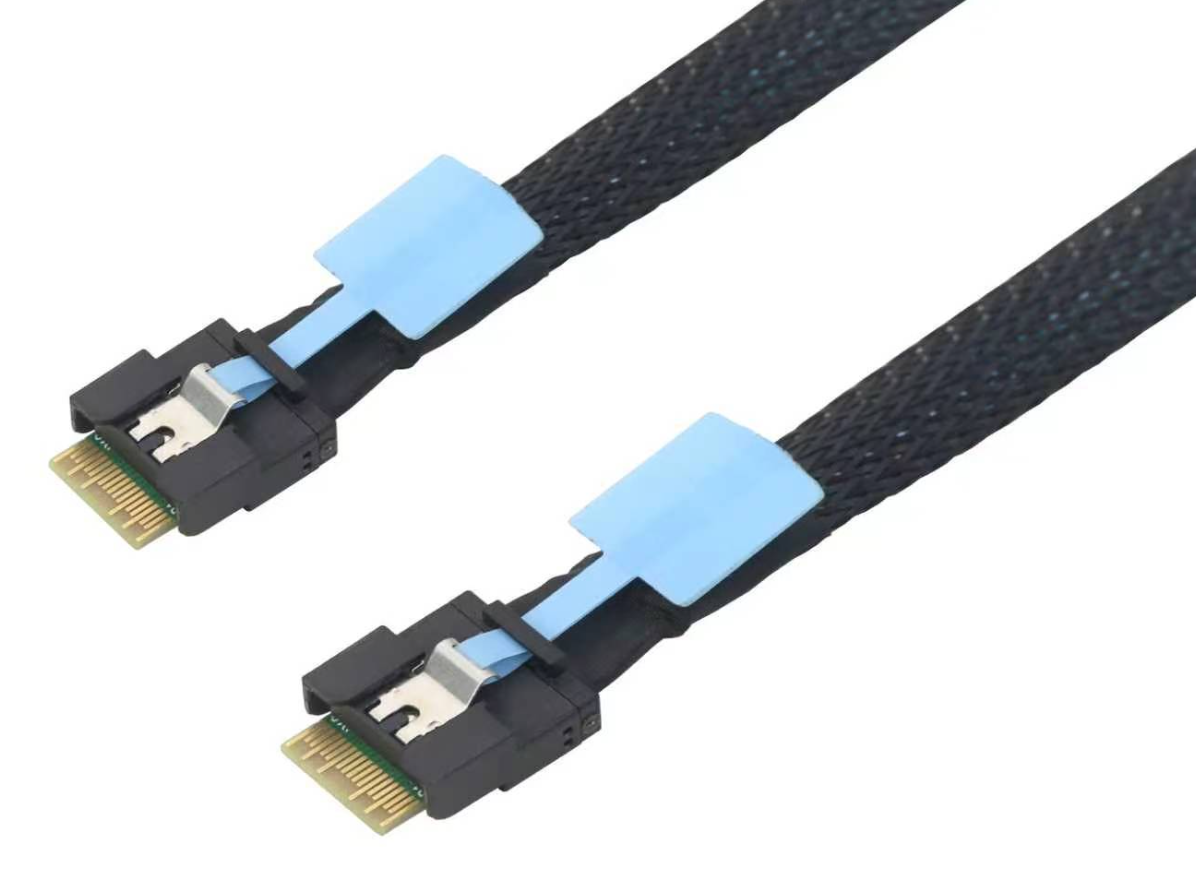

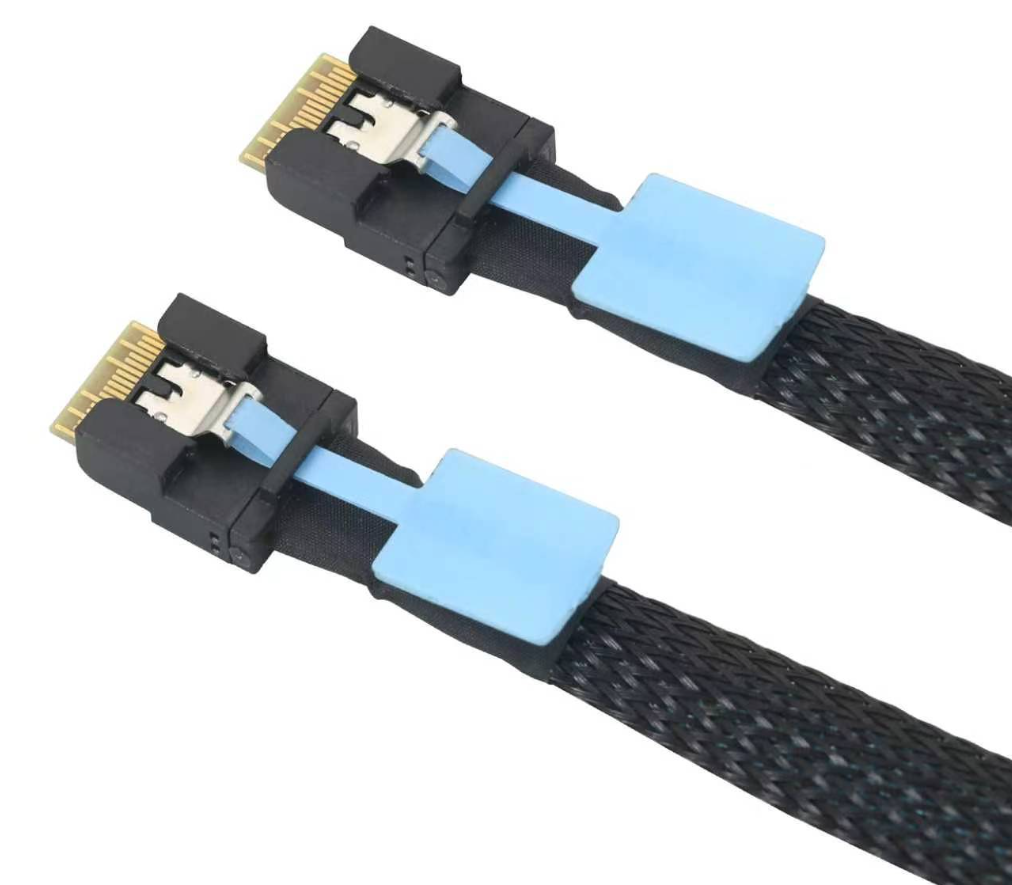

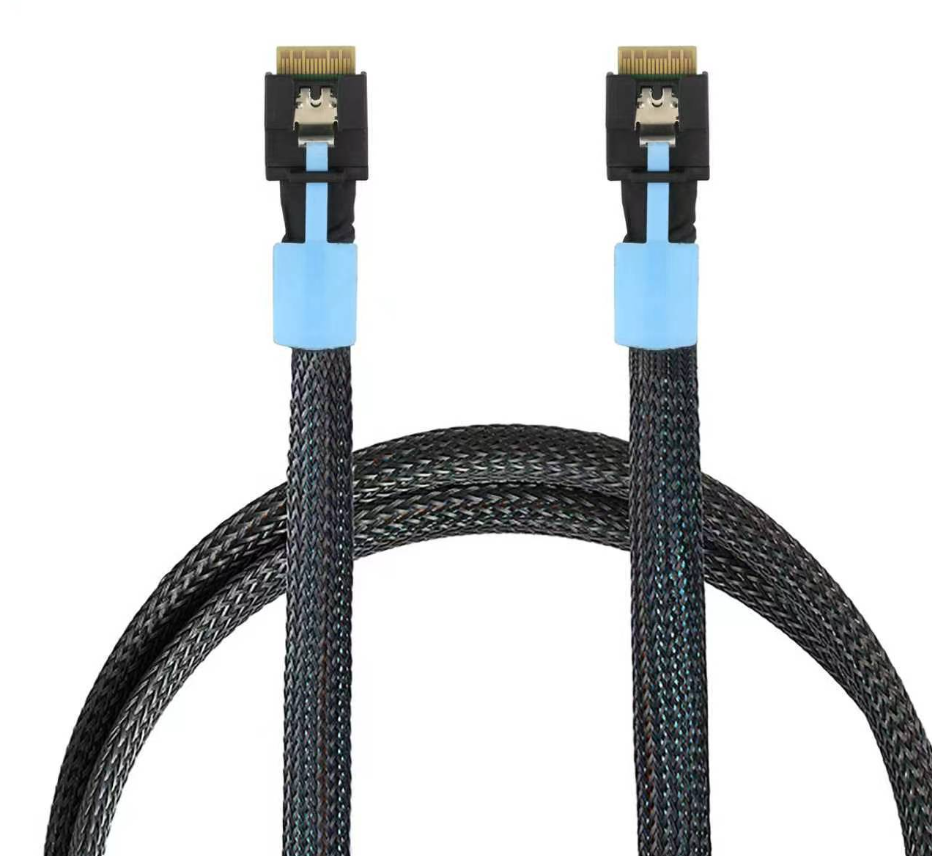

Host side: Slim SAS 4.0 SFF-8654 4i 38PIN
Target end: Slim SAS 4.0 SFF-8654 4i 38PIN
Ultraport SlimSAS conforms to the T10/Serial Attached SCSI (SAS-4) standard and is applicable to all known protocols.
The Ultraport SlimSAS connector takes up the same space as Mini-SAS.
Typical applications include servers, switches, routers, storage racks, etc.
Cable specifications Host/controller

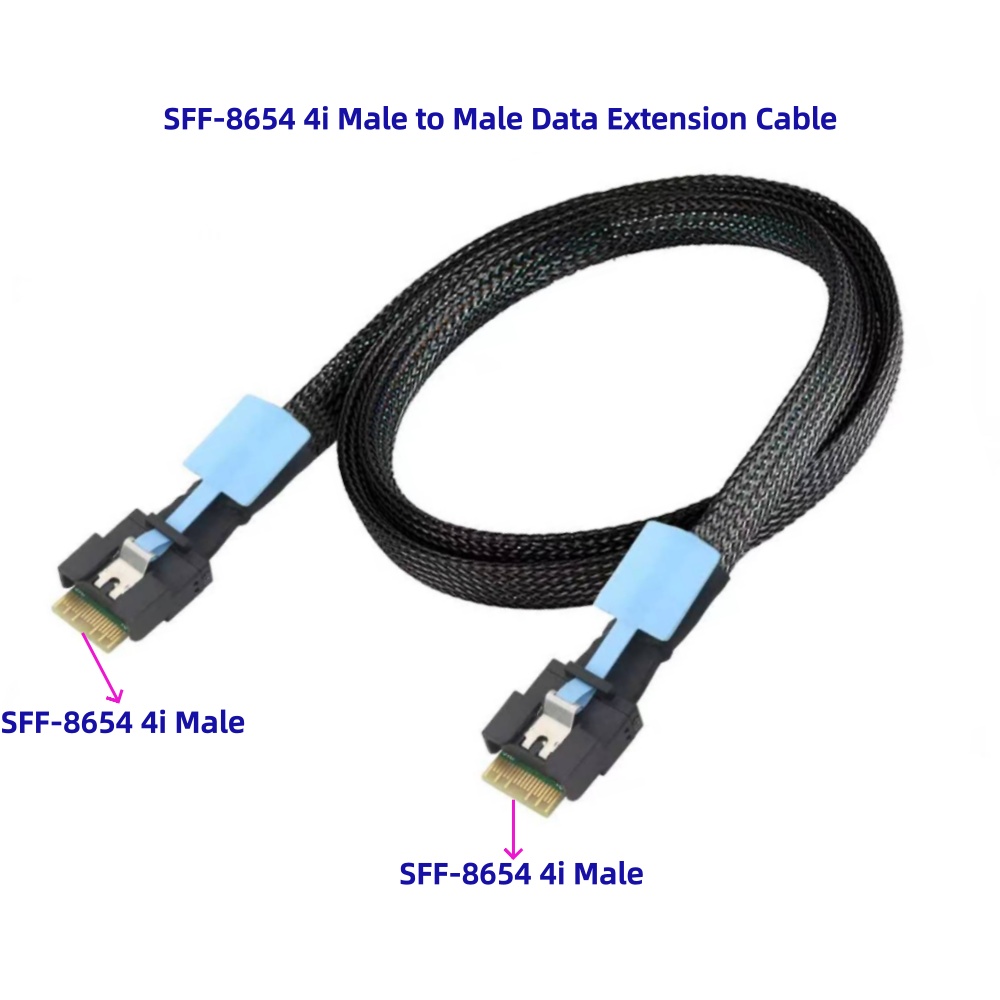

Connection: 1 x 38Pin Mini-SAS SFF-8654-4i male with latch
Drive connection: 1x 38Pin SFF-8654 4i socket-male with latch
Wire: 32AWG silver plated copper
impedance 85 ohms
Support SAS4.0 Fire
protection: VW-1 RoHS compliant
1.Smaller size connector and cable saves device space
2.Provide four channels signal transmission as per industry standard
3.Data speed: 24Gbps for SAS and 8GT/s for PCIe per channel
4.Meet SAS4.0, Ultraport SlimSAS SFF-8654 specification
