Product Description:
Series: Mini SAS
Series: Mini SAS

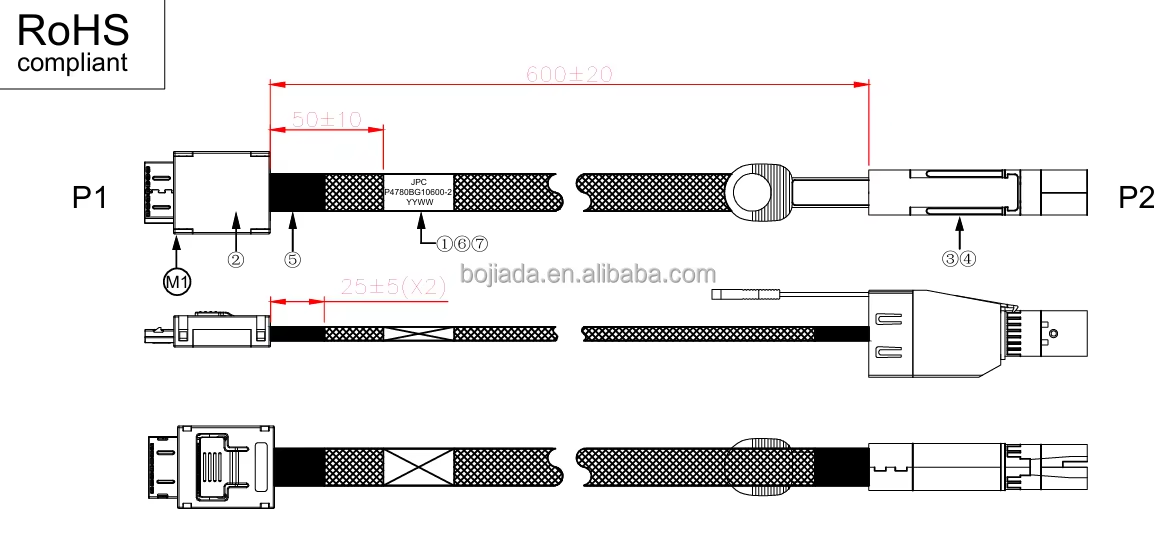

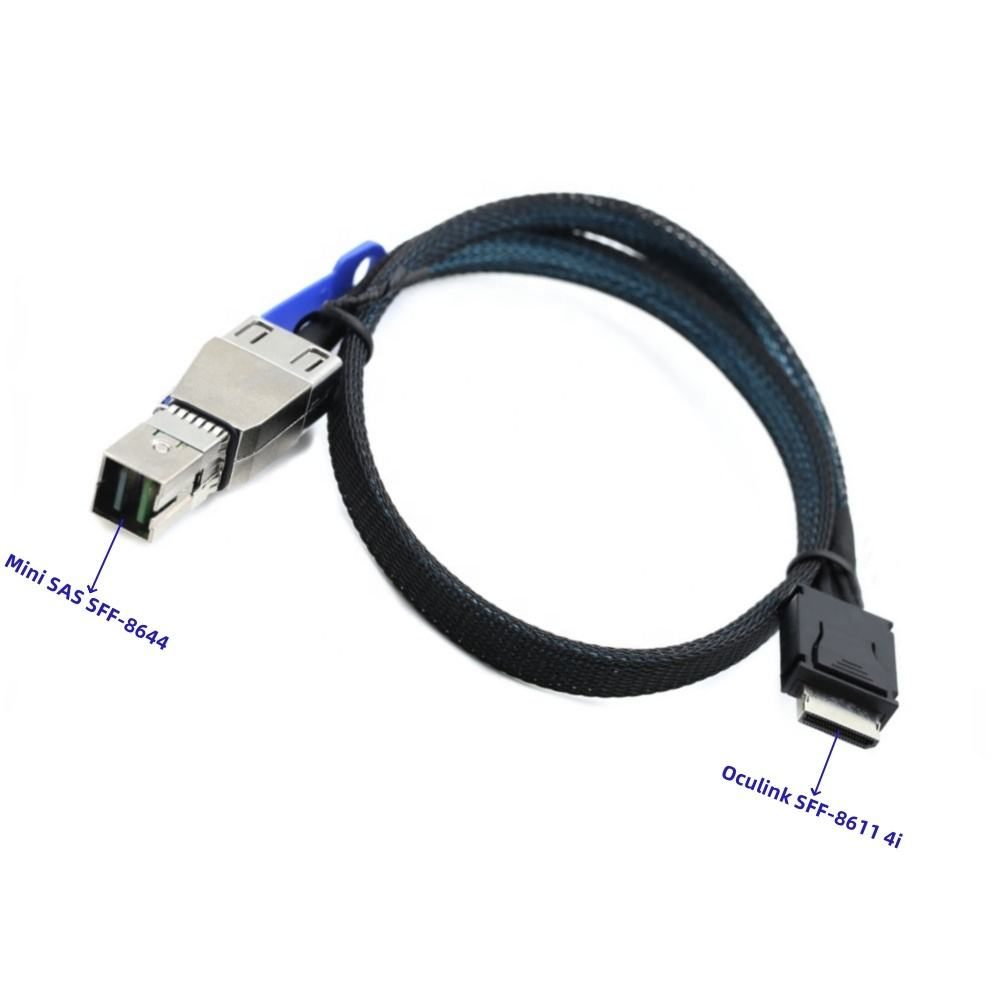

Connector: SFF-8611 4i and SFF-8644
Cable Length: 0.5M /1M
Wire Size: 30AWG, Tinned Copper, OD: 0. 9*2.3,MM
Lock to Mating Part: With Latch
Plating: Au 30u' min over Ni 100u' min
Color: Black
Environmental Compliance: ROHS
Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0
Applications
Data/Communications
1.RAID (Redundant Array of Independent Disks)
2.Workstations
3.Rack-mount server
4.Servers
5.Storage rack
Features
1.Transmission rate 12Gbps.
2. Meet SAS4.0 specification.
Mechanical Performance
Mating Force and Unmating Force
Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.
Mating Force: 55 N maximum for Mini SAS.
Unmating Force: 49 N maximum for Mini SAS.
Mating Force: 45 N maximum for SATA connector.
Unmating Force: 10 N maximum for SATA connector.
Cable Length: 0.5M /1M
Wire Size: 30AWG, Tinned Copper, OD: 0. 9*2.3,MM
Lock to Mating Part: With Latch
Plating: Au 30u' min over Ni 100u' min
Color: Black
Environmental Compliance: ROHS
Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0
Applications
Data/Communications
1.RAID (Redundant Array of Independent Disks)
2.Workstations
3.Rack-mount server
4.Servers
5.Storage rack
Features
1.Transmission rate 12Gbps.
2. Meet SAS4.0 specification.
Mechanical Performance
Mating Force and Unmating Force
Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.
Mating Force: 55 N maximum for Mini SAS.
Unmating Force: 49 N maximum for Mini SAS.
Mating Force: 45 N maximum for SATA connector.
Unmating Force: 10 N maximum for SATA connector.
