Description:

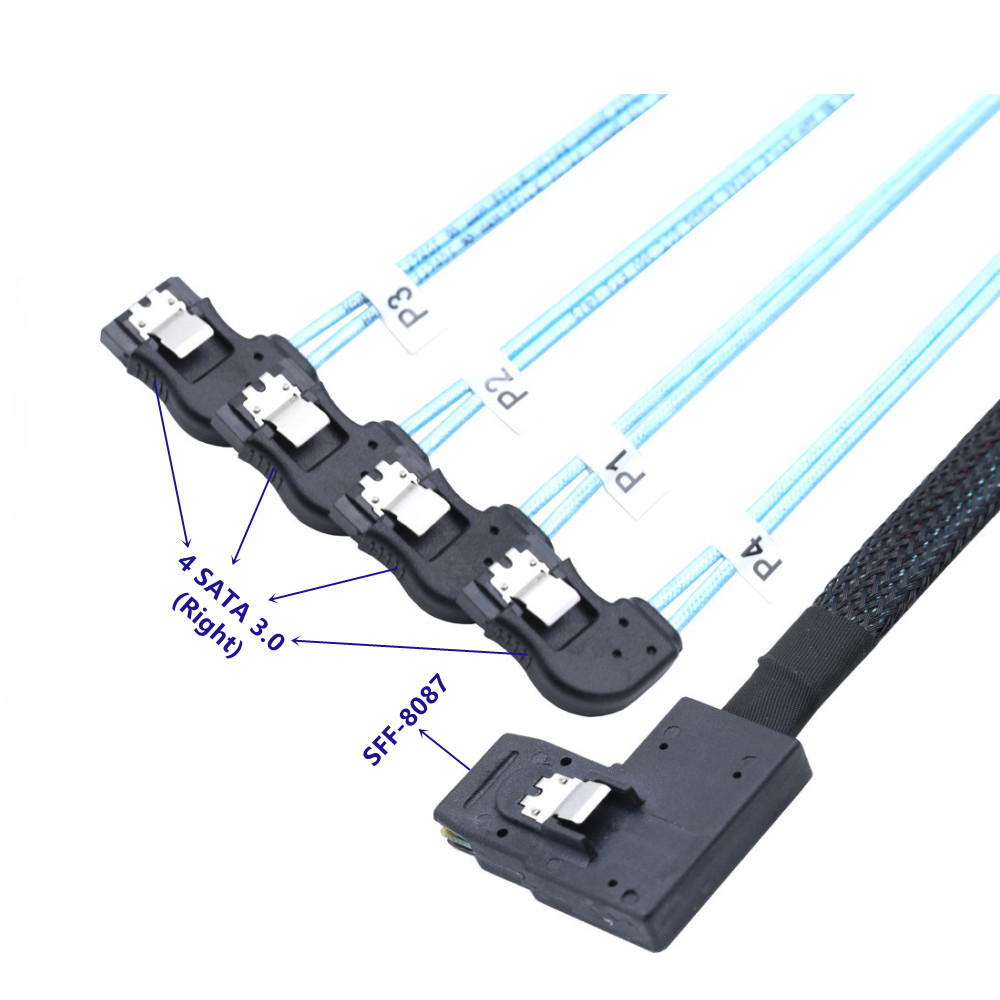

The MINI SAS data cable connects a RAID or PCIe controller with SFF-8087 ports to 4 discrete SATA drives.
The Mini SAS to SATA adapter can provide a reliable internal connection between a serially connected SCSI controller card in a computer system and a directly connected storage device with a SATA connector
Take full advantage of hardware RAID performance with this SATA multi-lane cable;
two cables can connect up to 8 SATA drives to span the RAID controller array, and share performance across two PCIe 2.0 x8 lanes through a compatible host bus adapter.
Each drive supports up to 6Gbs data transfer rate
The flexible design of the SAS branch cable includes an acetate cloth tape on the slender ribbon cable to reduce stress, thereby protecting the cable without rigidity; the braided mesh sheath covers half of the cable for easy wiring;
P1 to P4 are marked on the installation Provides easy ID at the rear; the flat SATA connector has an easy-to-grip tread and stainless steel latch to prevent accidental disconnection and reduce vibration disconnection.
Cable specifications :
Host/controller connection: 1 x 36-pin Mini-SAS SFF-8087-male with latch
SATA drive connection: 4 x 7-pin SATA socket 180 degrees-female with latch
SATA drive connection: 4 x 7-pin SATA socket 180 degrees-female with latch
Wire: 30AWG tinned copper impedance 100 ohms
Fire protection: VW-1
Compatible with 2.5", 3.5" SATA I, II, III hard drives
RoHS compliant
Compatible Products:
Adaptec RAID 5405
Adaptec RAID 5805
Adaptec RAID 2405
Adaptec RAID 51245
Adaptec RAID 51645
Adaptec RAID 52445
Adaptec RAID 5405Z
Adaptec RAID 5445
Adaptec RAID 5445Z
Adaptec RAID 5805Z
Adaptec RAID 31205
Adaptec RAID 31605
Adaptec RAID 3405
Adaptec RAID 3805
Adaptec RAID 1405
Adaptec RAID 5405
Adaptec RAID 5805
Adaptec RAID 2405
Adaptec RAID 51245
Adaptec RAID 51645
Adaptec RAID 52445
Adaptec RAID 5405Z
Adaptec RAID 5445
Adaptec RAID 5445Z
Adaptec RAID 5805Z
Adaptec RAID 31205
Adaptec RAID 31605
Adaptec RAID 3405
Adaptec RAID 3805
Adaptec RAID 1405
