Notice:
1 Our Adapter is free driver, you only need to install set the driver for your 5G Module.
2. The RJ45 port don't have internal manage web page.

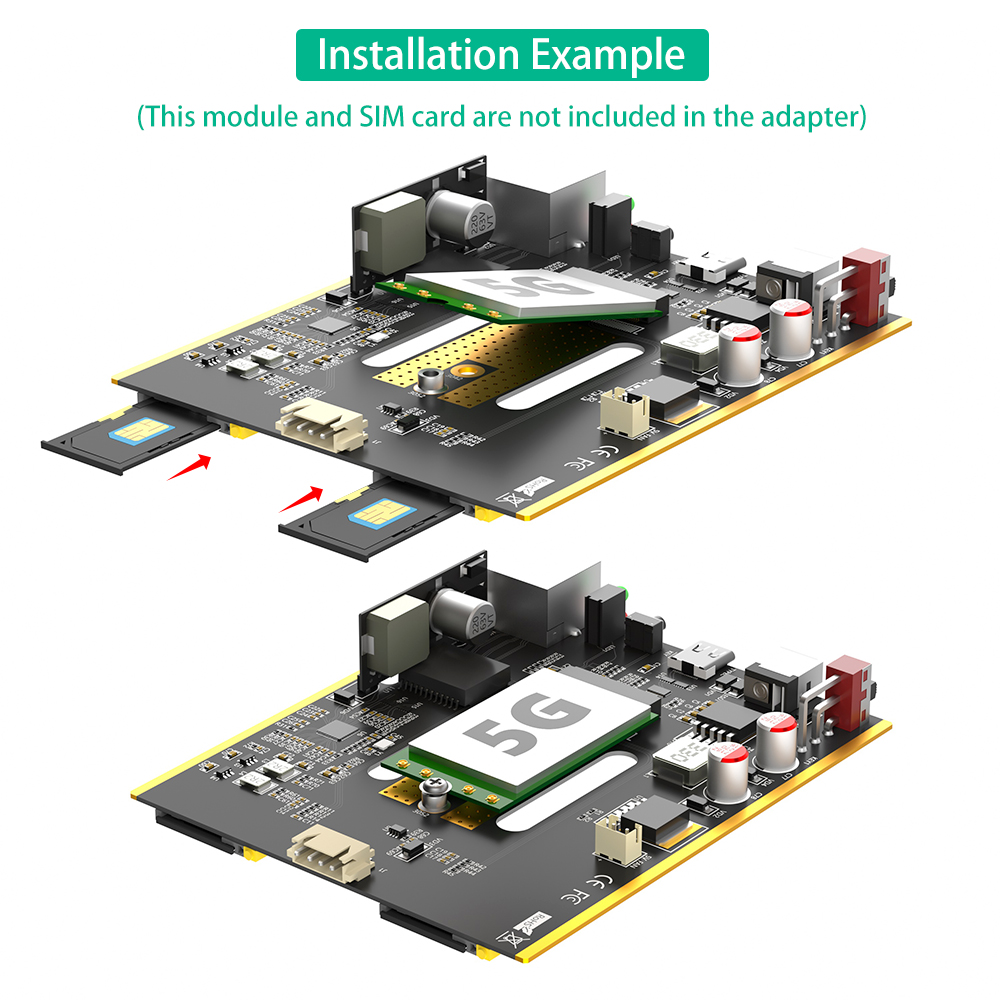

3. The brand new 5G module should be configured first (ensure the PCIE interface and the Internet connection), please contact with your 5G module supplier or manufacturer and read the AT commands manual carefully.
Product Features:

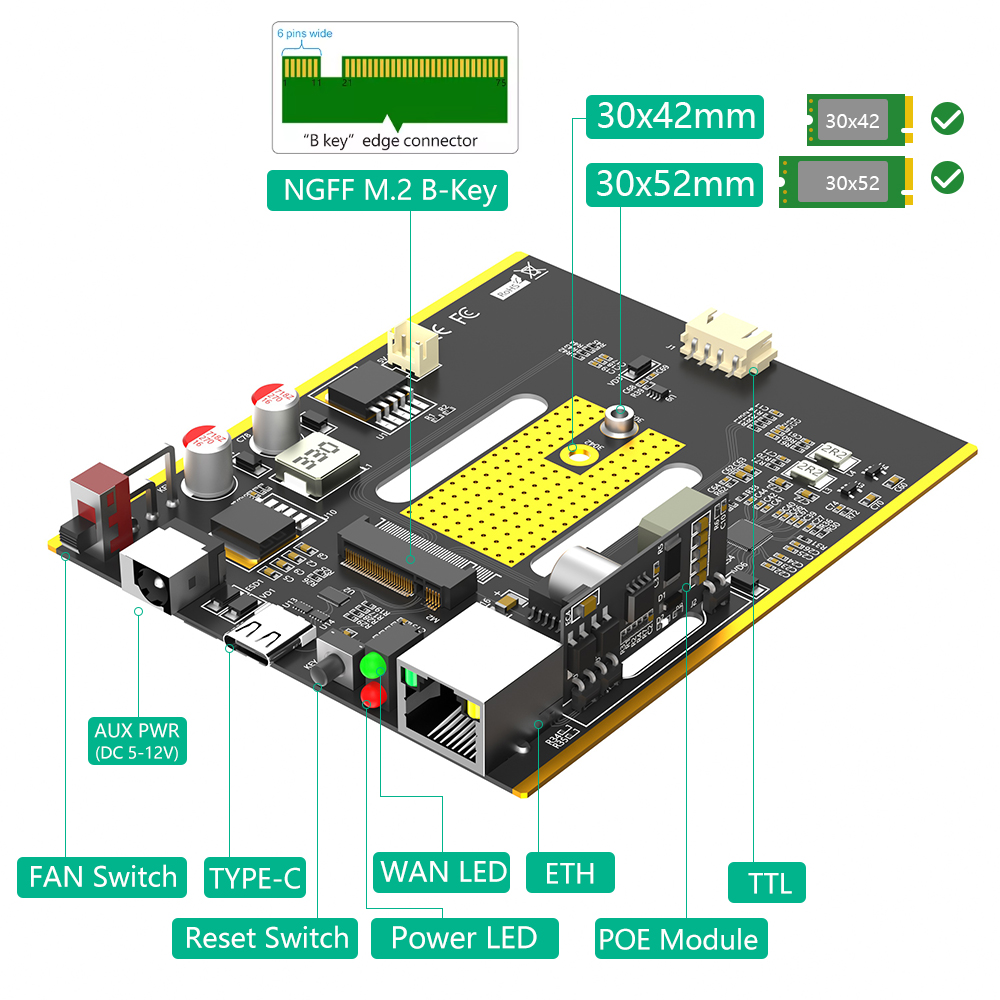

Main Controller: Realtek RTL8125BG
With POE Module

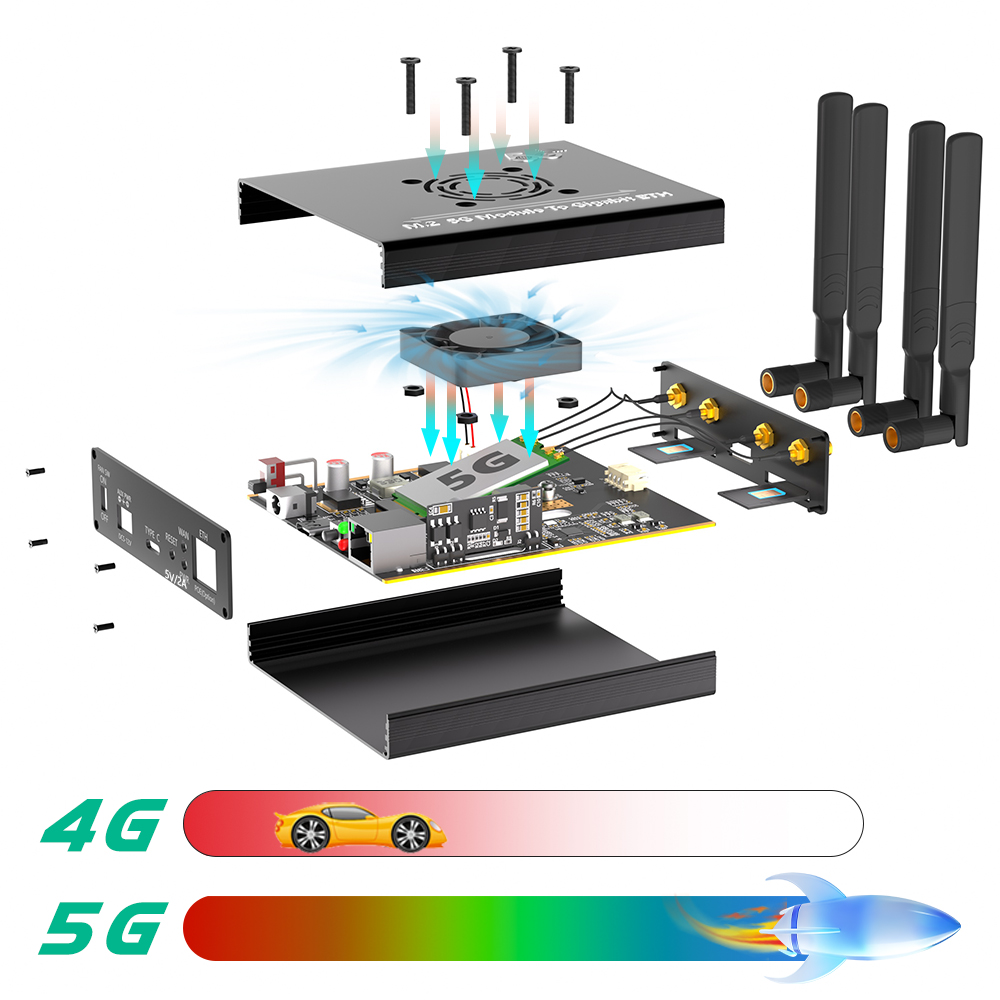

With 4 IPEX SMA Fixed Antennas

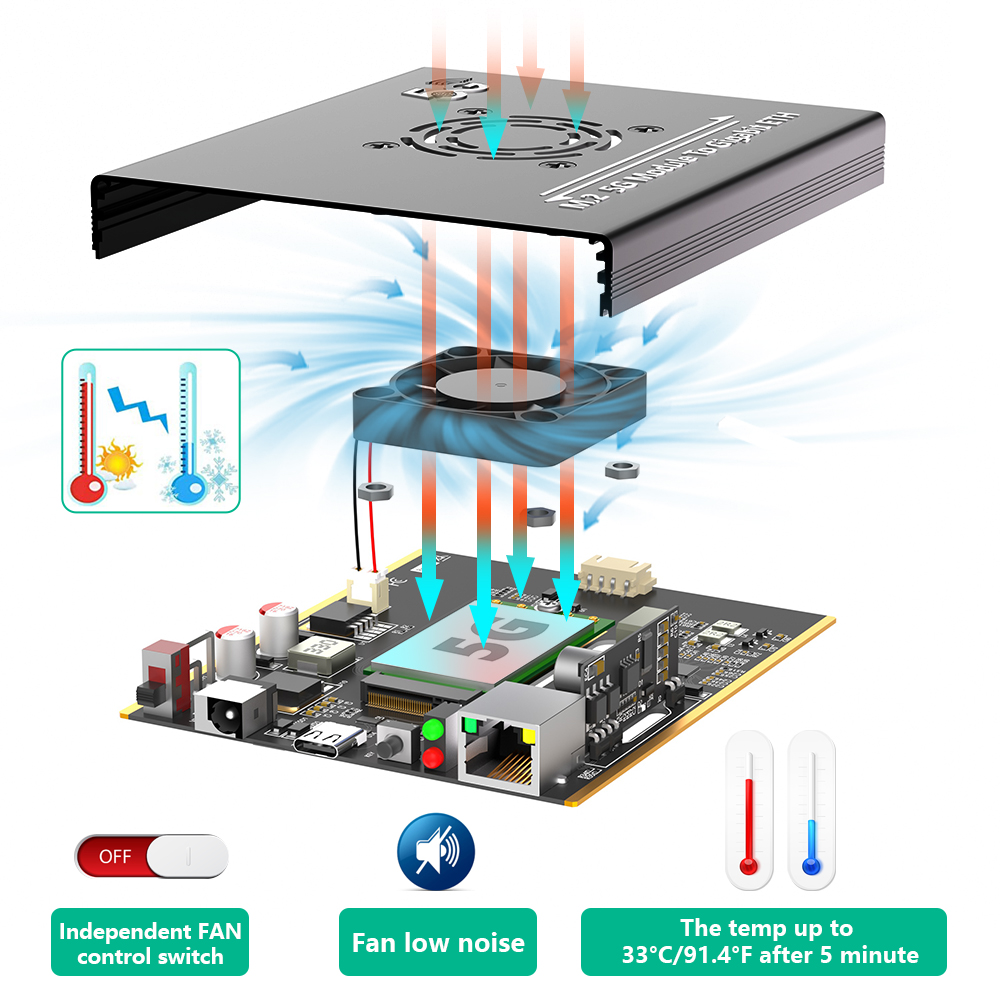

With Cooling Fan for 5G Module

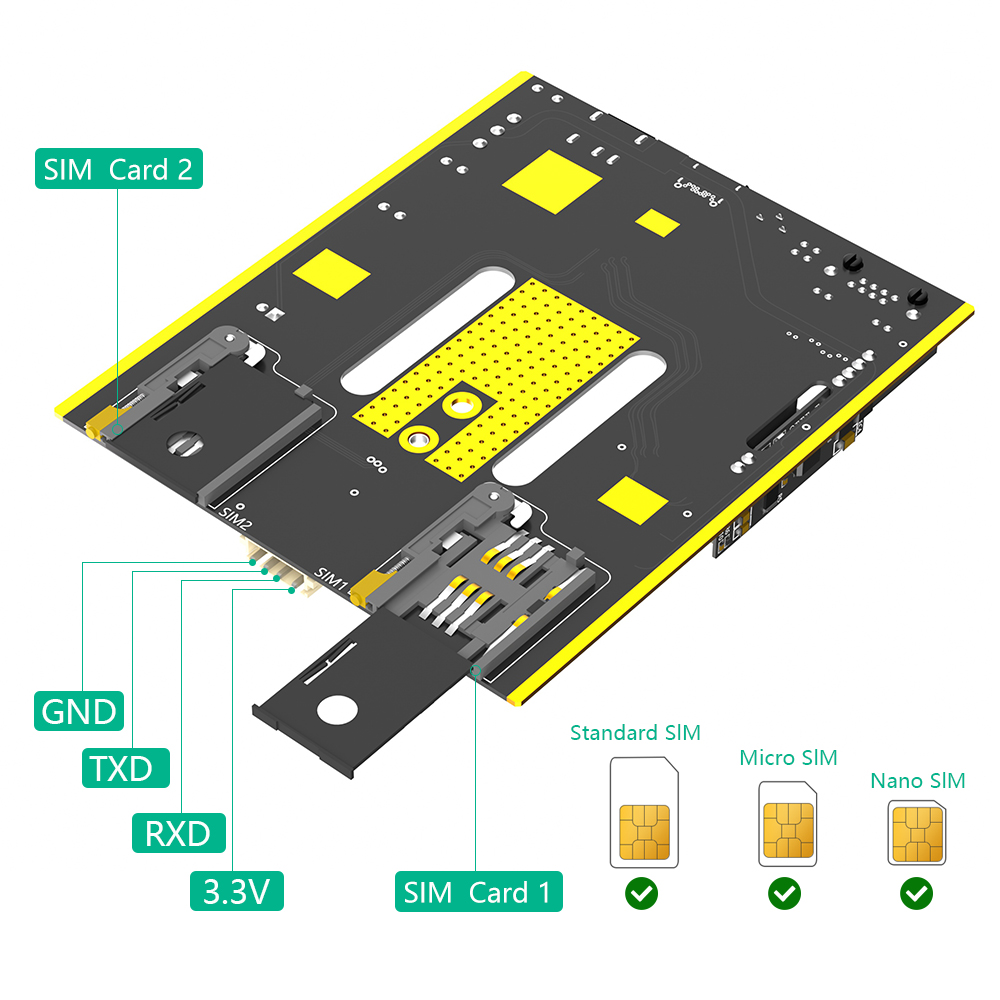

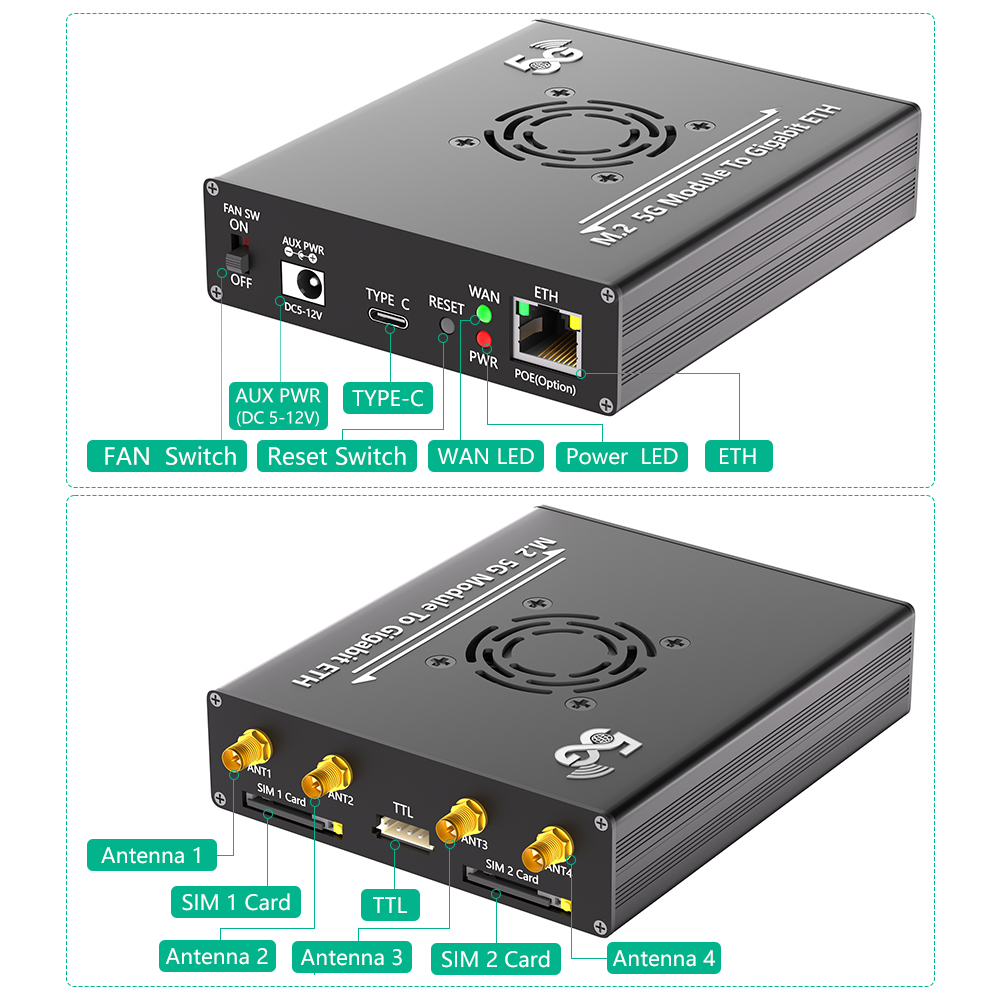

With 5-12V DC Connector Auxiliary Power Supports 3042/3052 type 5G Modules. Supports SIM/Micro SIM/NANO SIM card, and support Dual SIM Card Switch by AT Command. Versatile Compatibility – The Ethernet Network is backwards compatible with multiple data rates (2.5 Gbps, 1 Gbps, 100 Mbps Base-T connectivity). The 2.5G Ethernet port automatically negotiates between higher and lower speed connection.
Supports RM500Q-GL, RM505Q-GL, RM510Q-GL, RM520N-GL, RM521F-GL RM530N-GL (Tested) 5G Modules (5G Module to POE) , ....

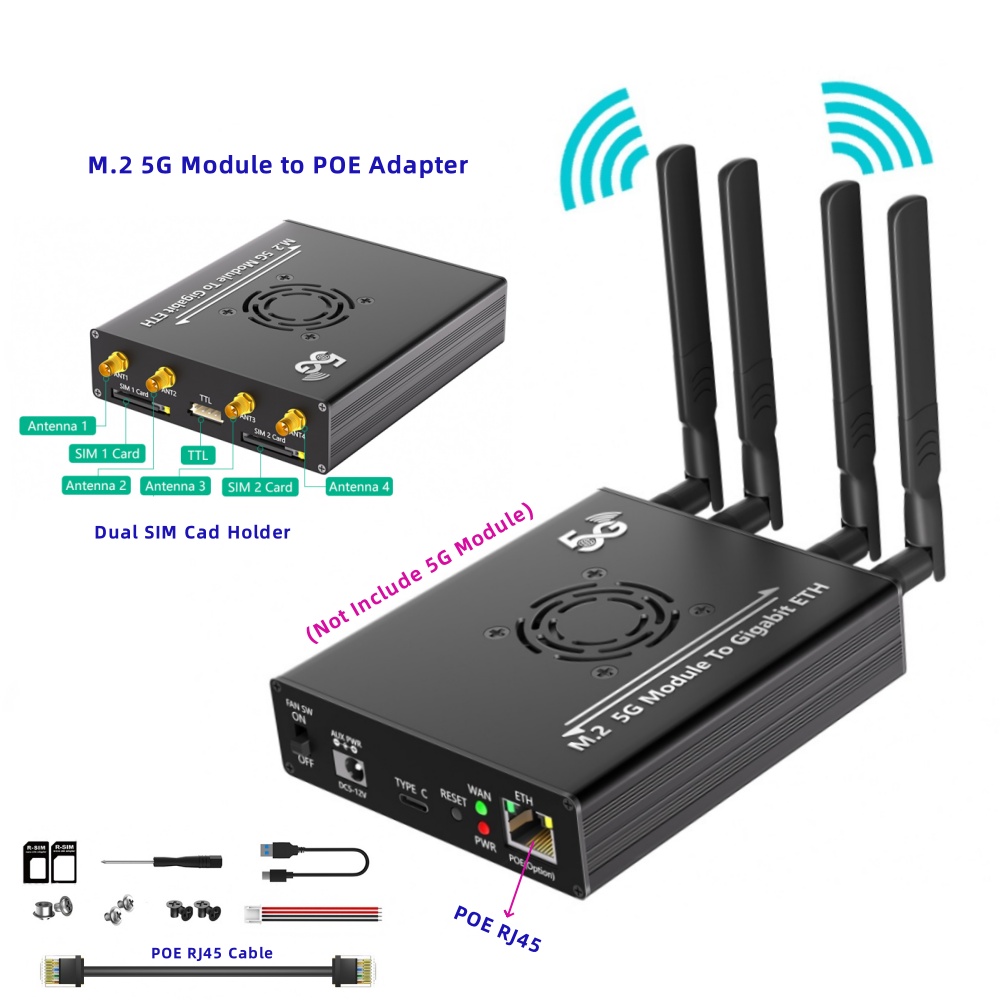

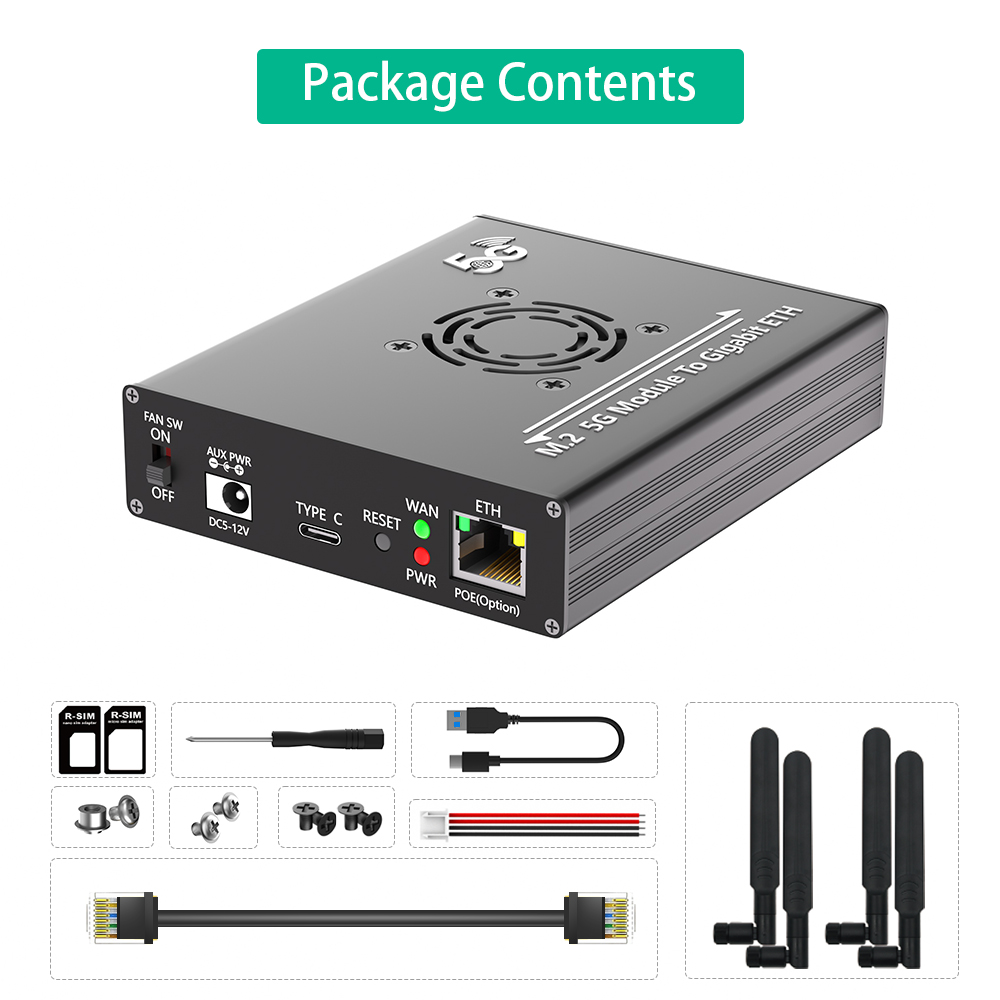

Package contents: 1 x M.2 to Type C adapter 2 x M2 Screw 4 x M2.5 screw 1 x screwdriver 4 x 2.4G/5G antenna 1 x TTL 4Pin Cable 1 x grommet Kit 1 x SIM Card Extension Kit 1 x Type C cable 1 x POE RJ45 Network Cable
