Test Report: Quectel RM520N-GL 5G Module with 4 Layer PCB Adapter from USA Client, 5G Module to ETH RJ45 Port Speed: 190Mbps-220Mbps.
Notice:
1 Our Adapter is free driver, you only need to install set the driver for your 5G Module.
2. The RJ45 port don't have internal manage web page.
3. The brand new 5G module should be configured first (ensure the PCIE interface and the Internet connection), please contact with your 5G module supplier or manufacturer and read the AT commands
manual carefully.
manual carefully.
Product Features:
RJ45 Ethernet Chip : RT8125BG
Use 4 Layer PCB , Improved signal transmission speed .
With 5-12V DC Connector Auxiliary Power

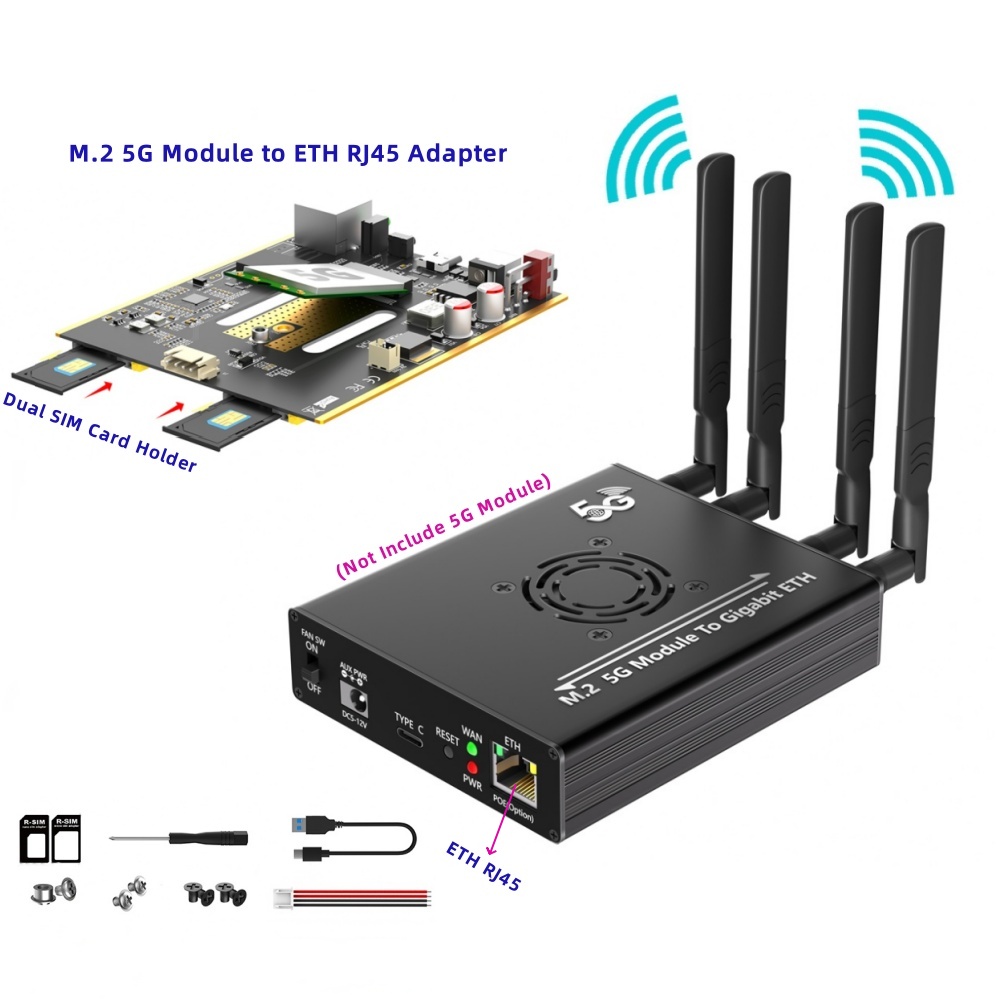

Supports 3042/3052 Type 5G LTE Module. Supports RM500Q-GL, RM505Q-GL, RM510Q-GL, RM520N-GL, RM521F-GL RM530N-GL 5G Modules (5G Module to ETH), .... 5G Module to ETH port or USB port can be realized, the two ports can not be used at the same time. 5G Module network Convert to wired Ethernet output directly. Supports SIM/Micro SIM/NANO SIM card, and support dual SIM Card Switch by AT Command. ETH RJ45 Network Port With 4 IPEX SMA Fixed Antennas With Cooling Fan for 5G Module Versatile Compatibility – The Ethernet Network is backwards compatible with multiple data rates(2.5Gbps, 1Gbps, 100 Mbps Base-T connectivity). The RJ45 Ethernet port automatically negotiates between higher and lower speed connection.
Package contents:
