Description
Specification：

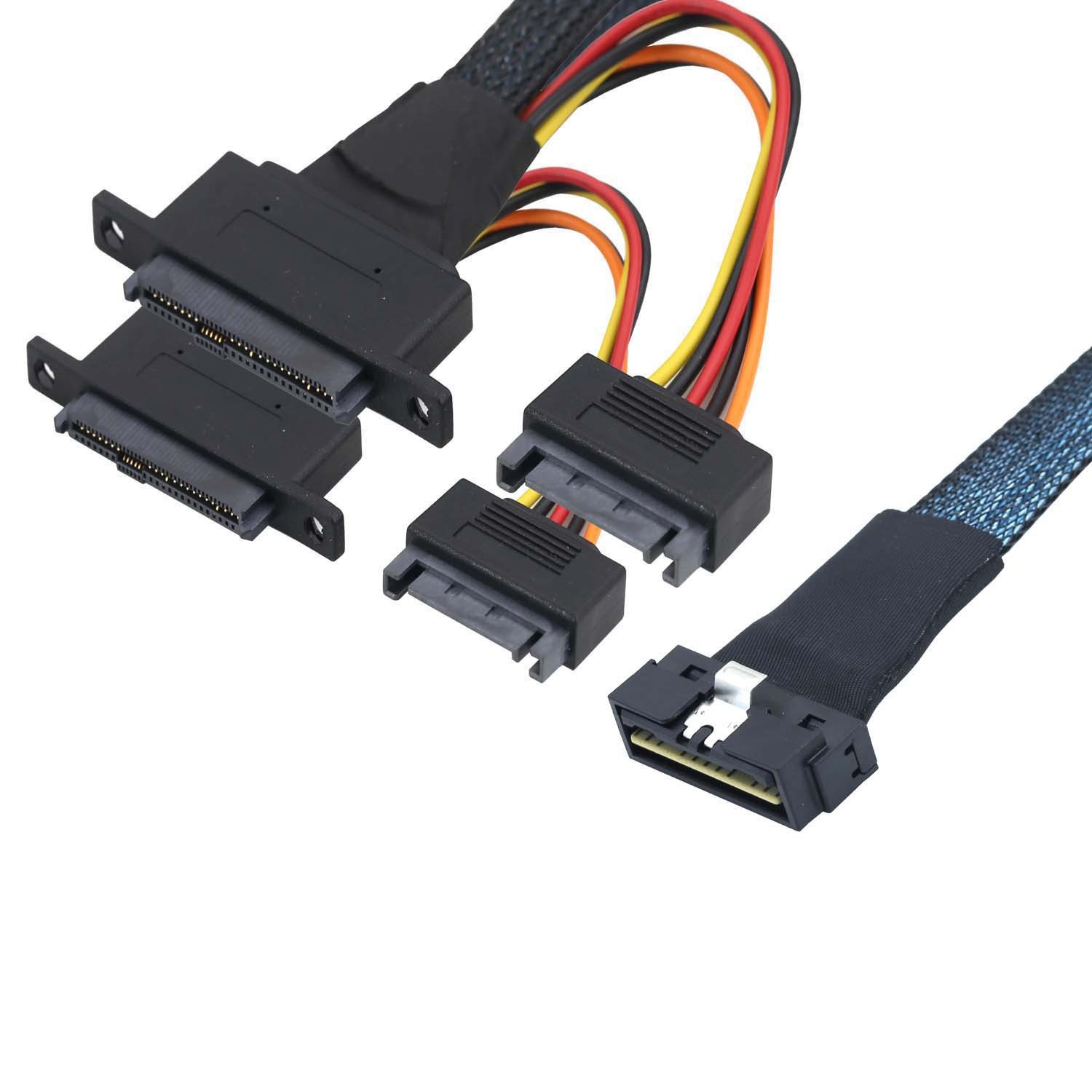

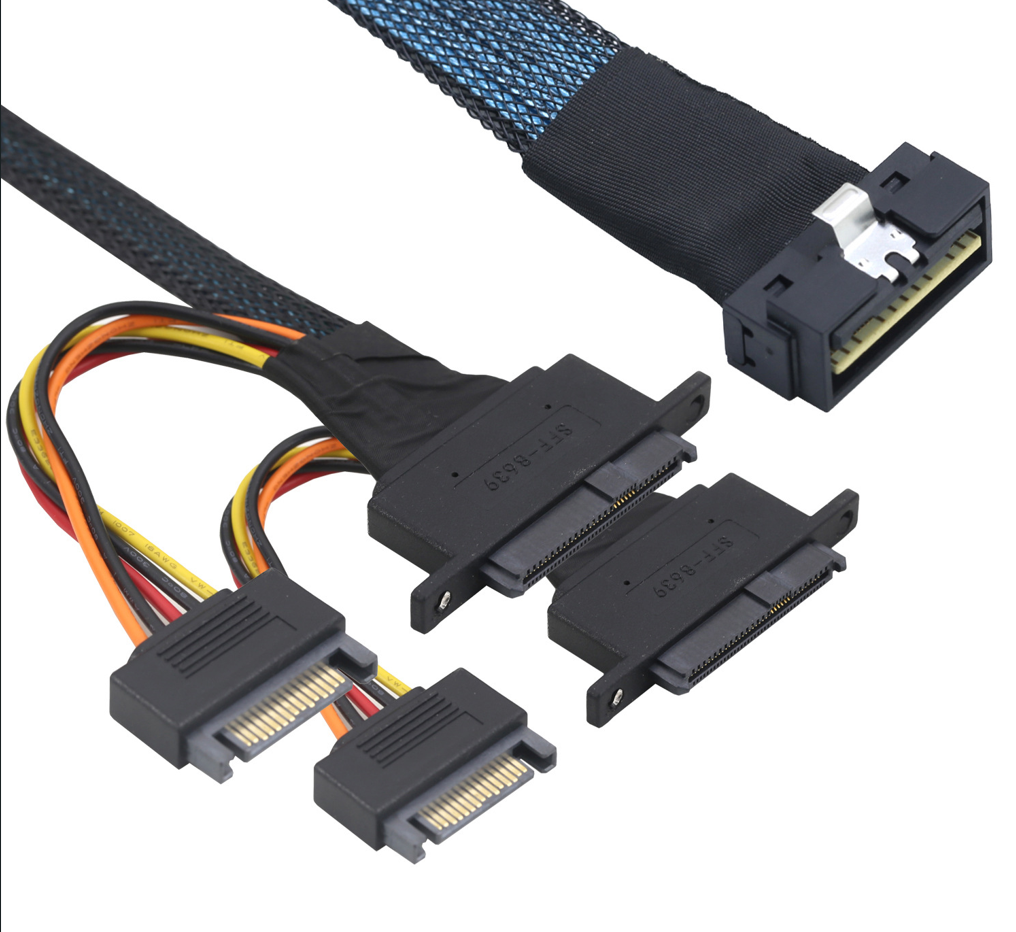

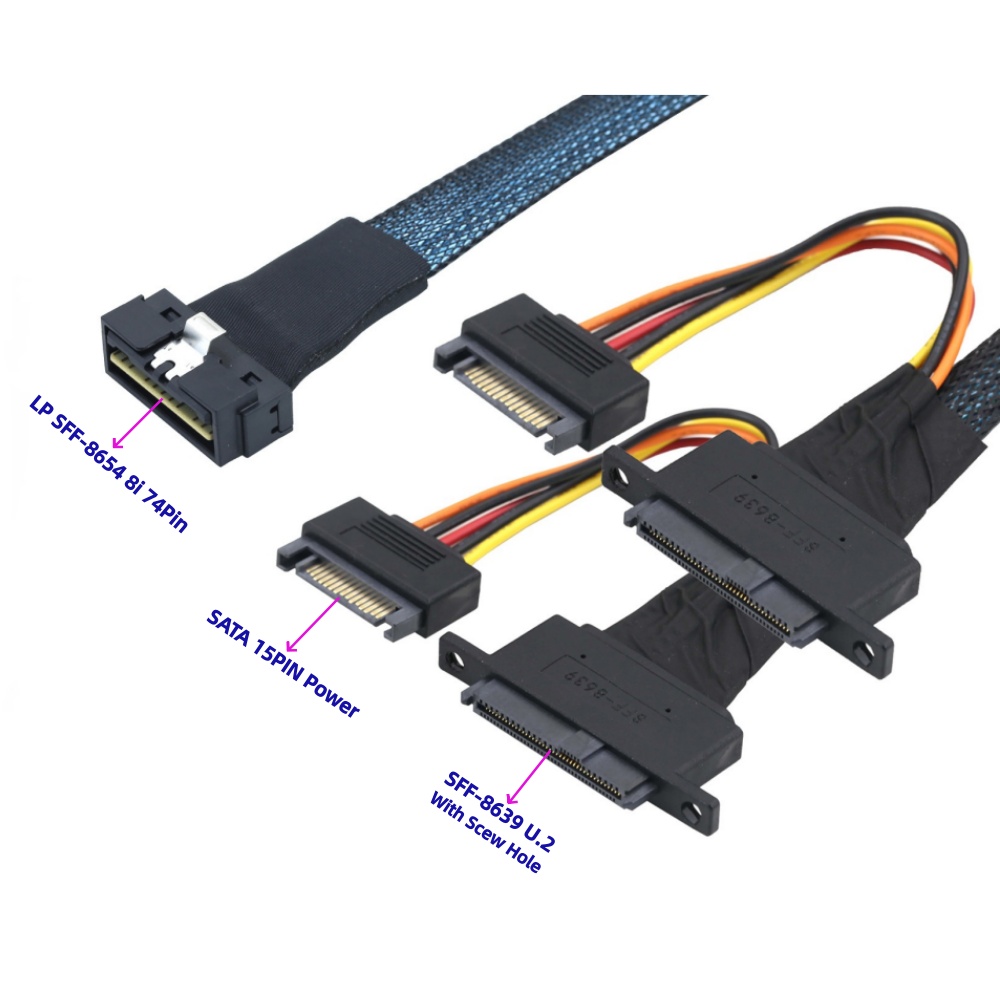

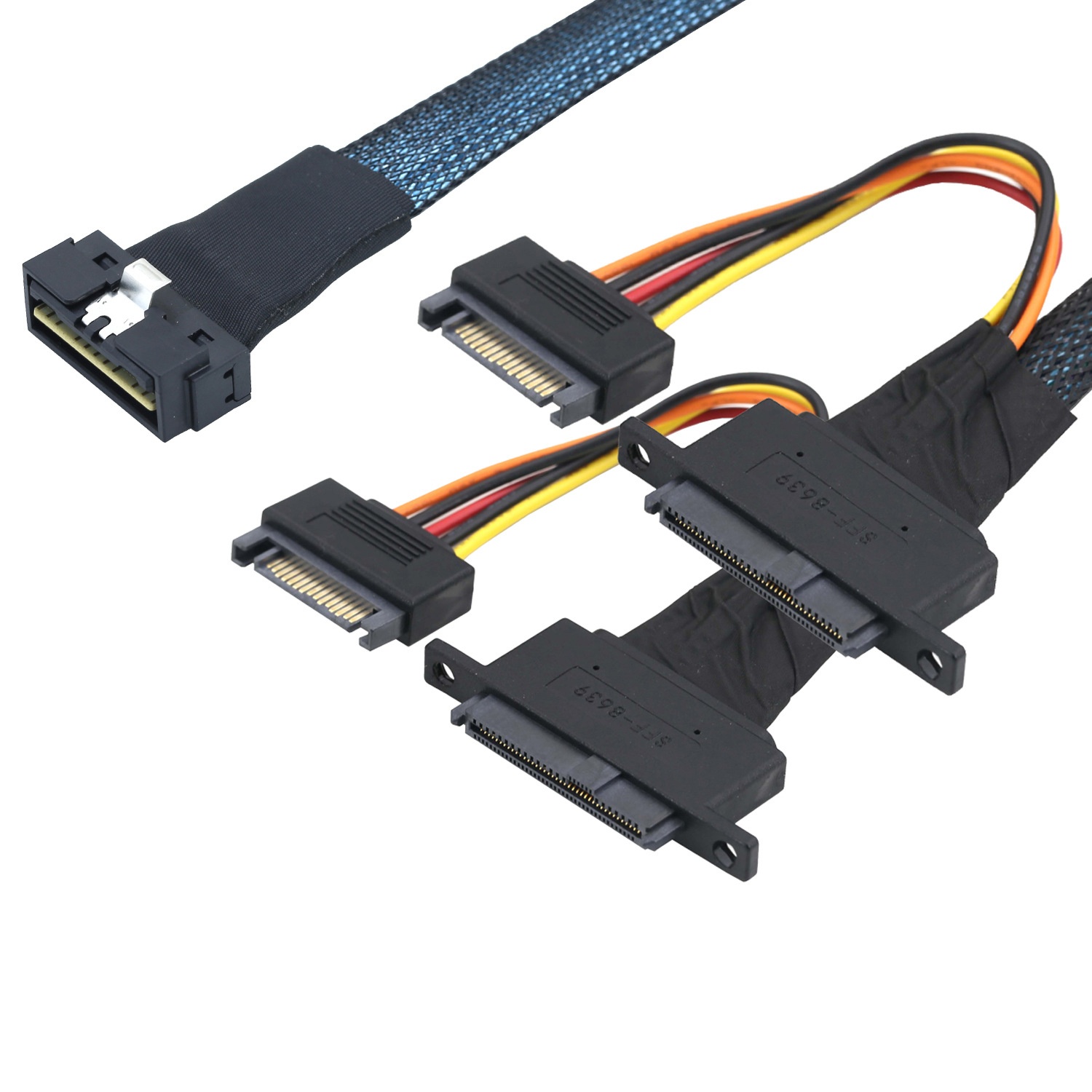

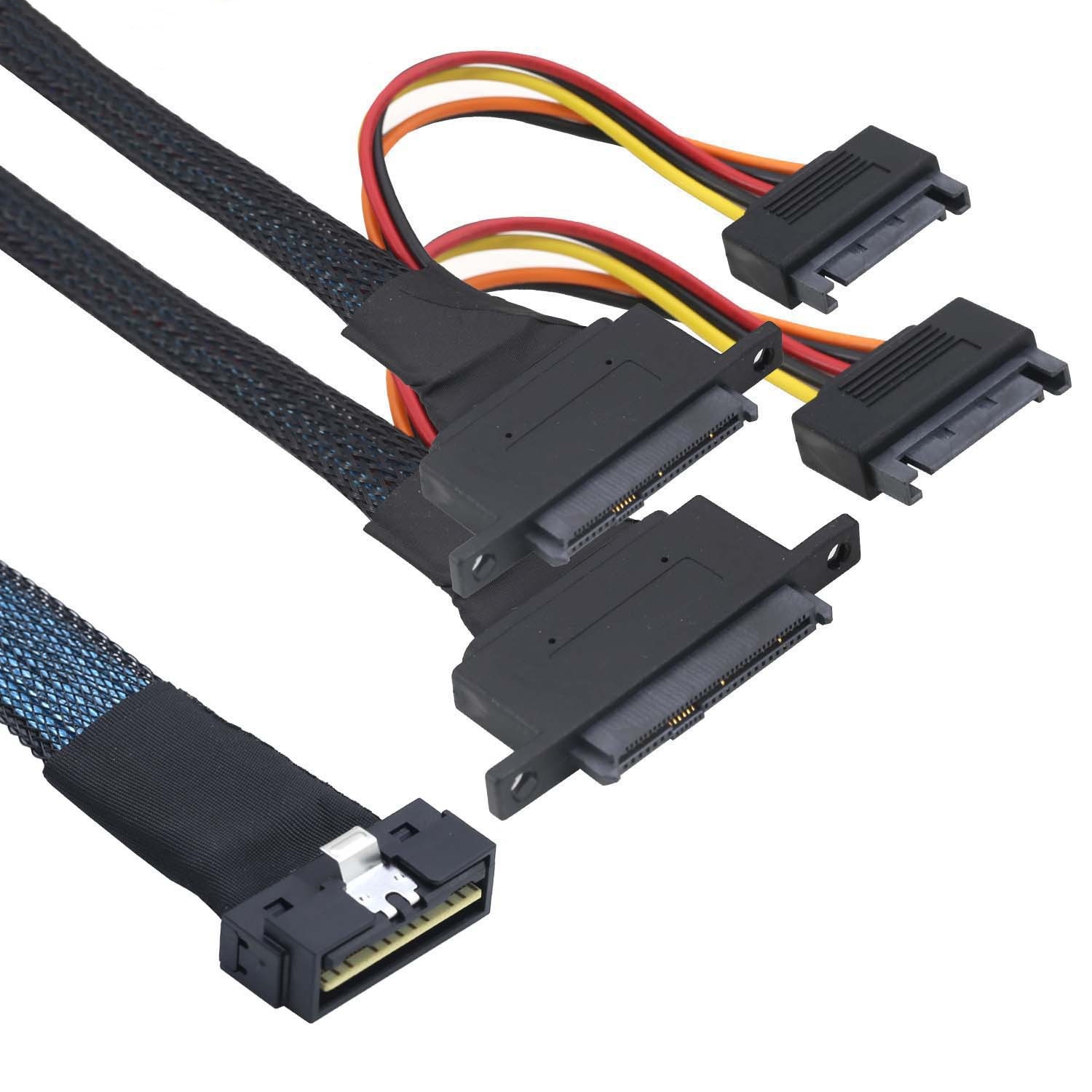

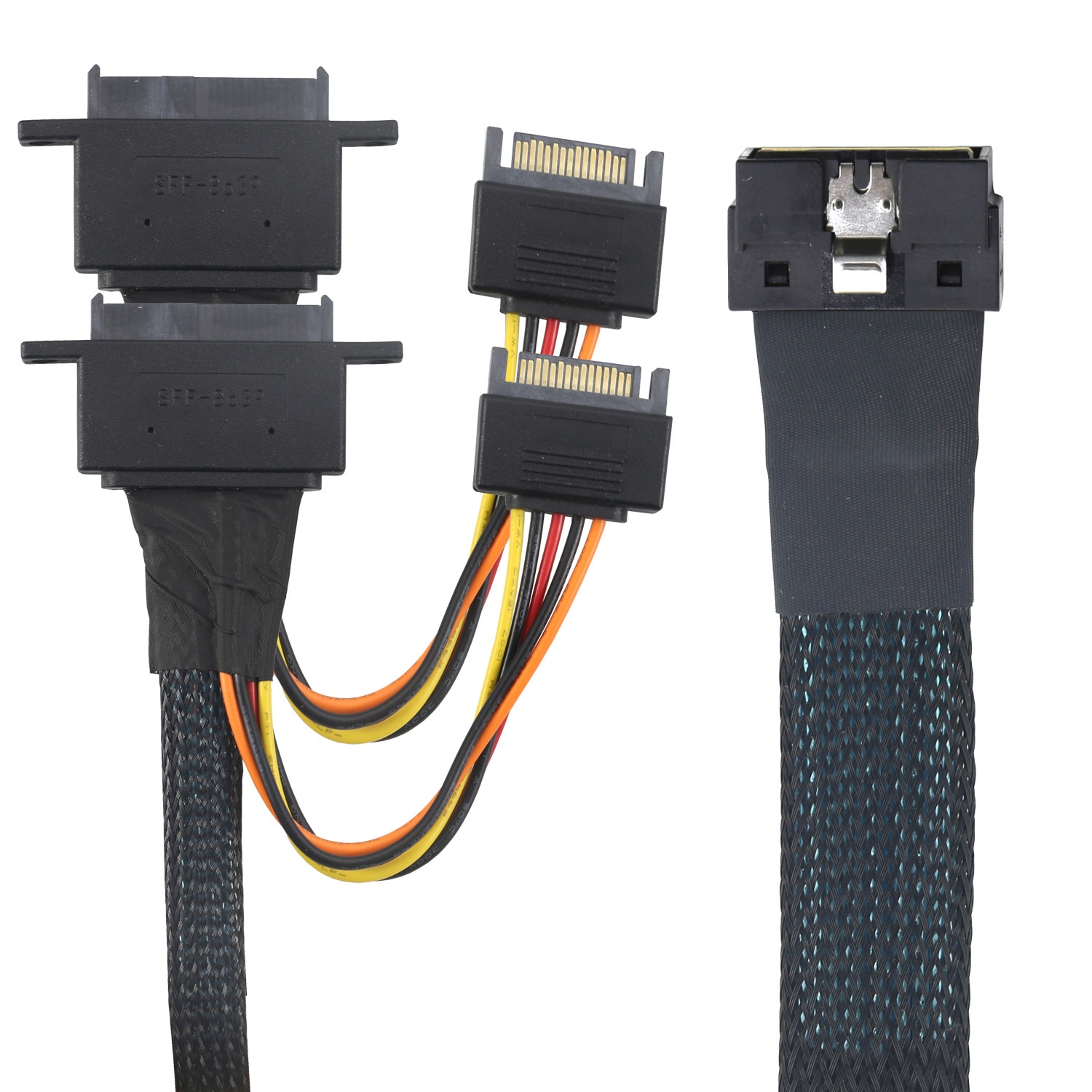

Interface: LP SFF-8654 8i 74PIN
Connector：2 * SFF-8639 U.2 Connector With SATA 15PIN Power
Cable length: 0.5M 0.8M 1M
With Screw Hole
Wire Size: 30AWG/32AWG. Tinned Copper, OD: 0. 9*2.3,MM
Lock to Mating Part: With Latch
Plating: Au 30u' min over Ni 100u' min
Color: Cable white, Over mold Black
Environmental Compliance: ROHS
Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0
Lock to Mating Part: With Latch
Plating: Au 30u' min over Ni 100u' min
Color: Cable white, Over mold Black
Environmental Compliance: ROHS
Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0
Applications：
Data/Communications
1.RAID (Redundant Array of Independent Disks)
2.Workstations
3.Rack-mount server
4.Servers
5.Storage rack
Data/Communications
1.RAID (Redundant Array of Independent Disks)
2.Workstations
3.Rack-mount server
4.Servers
5.Storage rack
