Description

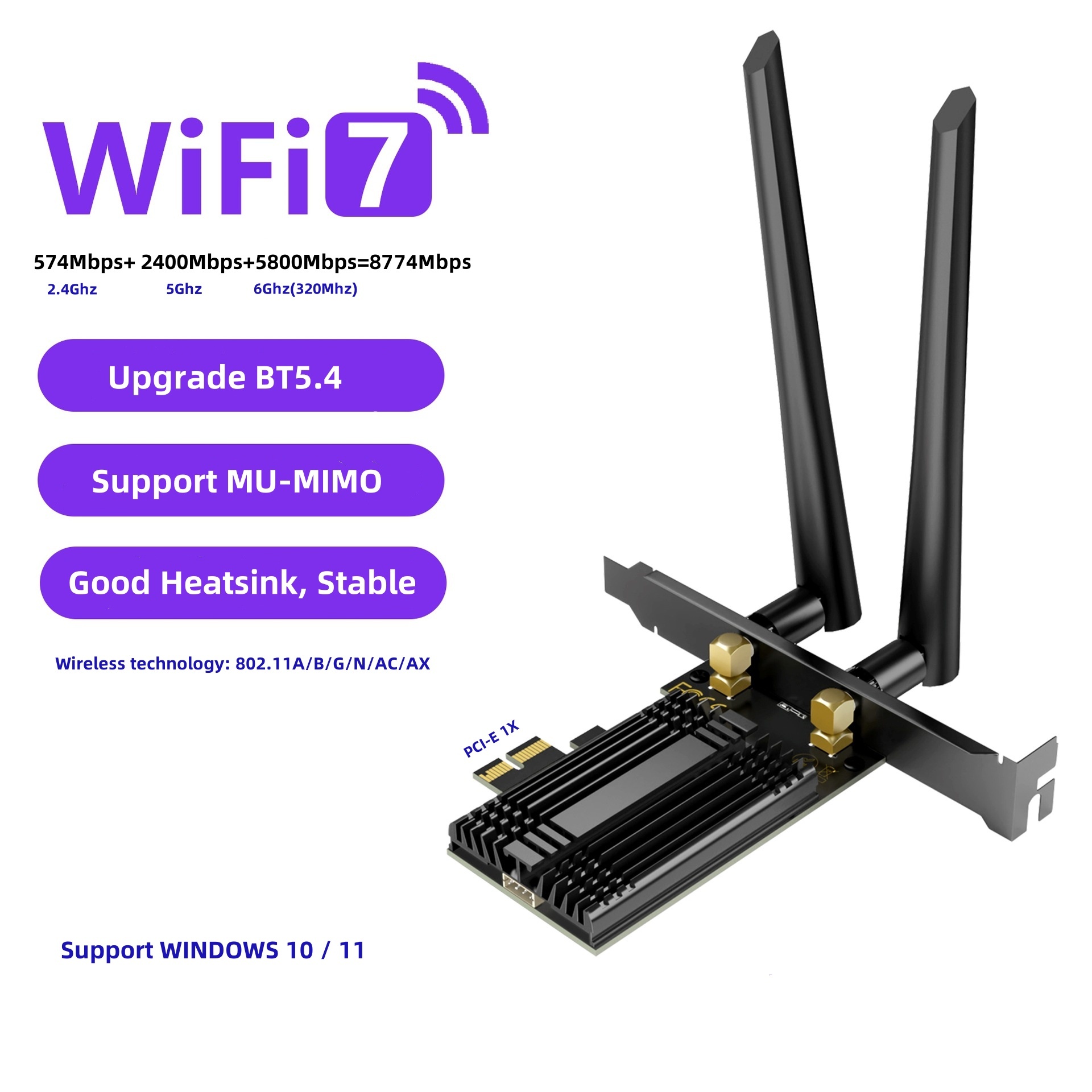

1.This Wifi 7 Card delivers higher peak data rates and up to 4x capacity in dense or congested environments. With BE200, 5800Mbps over 6Ghz, 2400Mbps over 5GHz or 574Mbps over 2 4GHz for online gaming and 8K Ultra HD video streaming, all without buffering

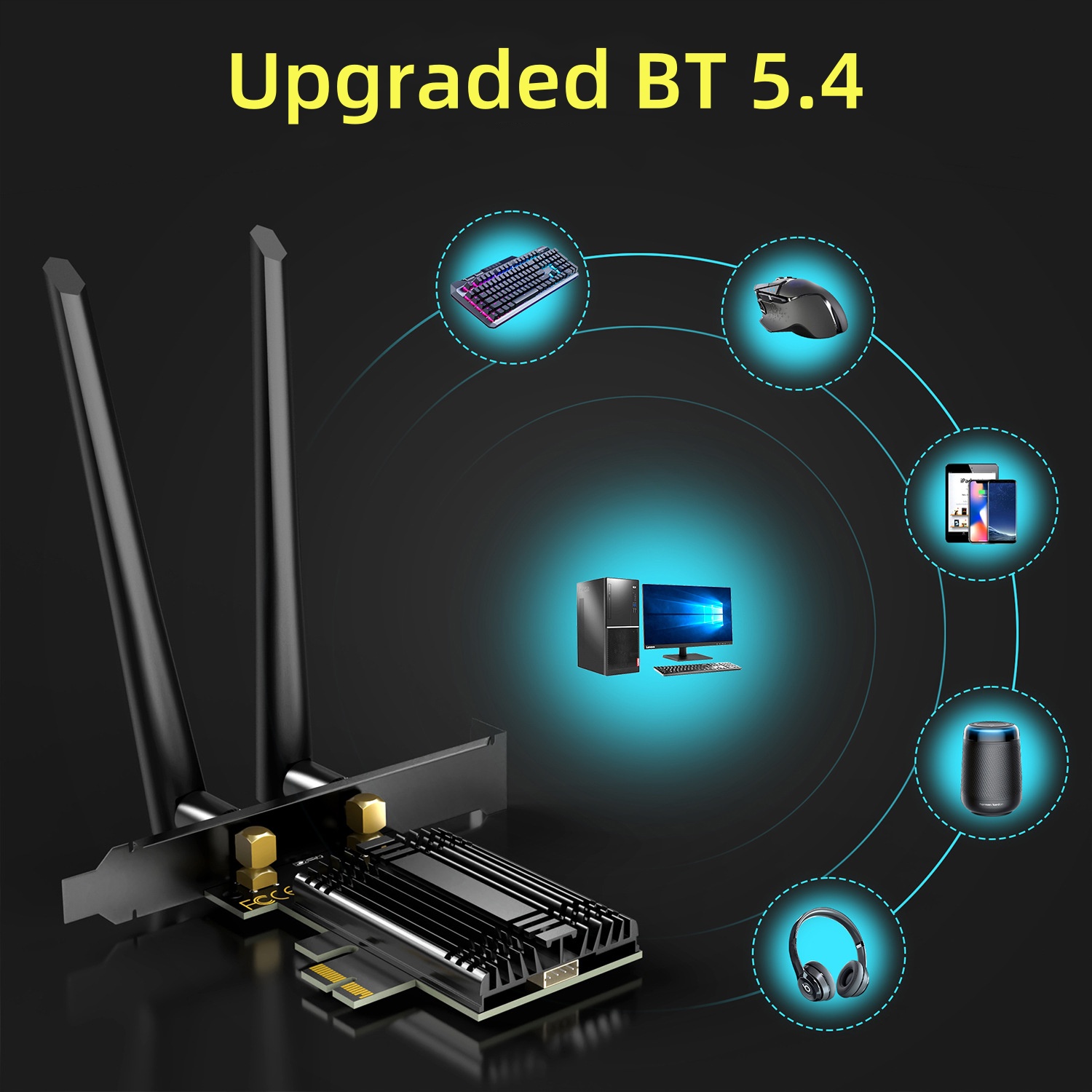

2. Our BT use brand new 5.4 technology that expand the range of 4 x BT signal, no need to worry the signal will be weak in the room and waiting long time for transport the large files, the new BT 5.4 will solve this problem, and it can connect with the mouse, earphone, keyboard and other BT devices ( Note: you have to insert the power cable to the Motherboard 9-pin interface for BT function )
3. Compatible with for Windows 10/11, Compatible with PCI-E X1 / X4 / X8 / X16 slots.
4. PCI Express WiFi Card with More Coverage The Beamforming and 2 x 6dBi high-gain antennas in the wifi 7 adapter work together to adapt your WiFi and focus signal.
5. The maximum throughput supported by the Wi-Fi 7 is a speedy up to 5800Mbps 6Ghz (Router must support 320Mhz) .
1.This Wifi 7 Card delivers higher peak data rates and up to 4x capacity in dense or congested environments. With BE200, 5800Mbps over 6Ghz, 2400Mbps over 5GHz or 574Mbps over 2 4GHz for online gaming and 8K Ultra HD video streaming, all without buffering
2. Our BT use brand new 5.4 technology that expand the range of 4 x BT signal, no need to worry the signal will be weak in the room and waiting long time for transport the large files, the new BT 5.4 will solve this problem, and it can connect with the mouse, earphone, keyboard and other BT devices ( Note: you have to insert the power cable to the Motherboard 9-pin interface for BT function )
3. Compatible with for Windows 10/11, Compatible with PCI-E X1 / X4 / X8 / X16 slots.
4. PCI Express WiFi Card with More Coverage The Beamforming and 2 x 6dBi high-gain antennas in the wifi 7 adapter work together to adapt your WiFi and focus signal.
5. The maximum throughput supported by the Wi-Fi 7 is a speedy up to 5800Mbps 6Ghz (Router must support 320Mhz) .
6. Can provide Gigabit download speed and dramatically improve your connected experience at home, work, or on the go.
Features:
Chipset: INTEL BE200
BT5.4 WIFI 7& MU-MINO
TX/RX：2x2, 320Mhz， 4096-QAM
Antenna: 2 * 6dBi un-fixed
Frequency Range: 2.4 GHz / 5.0 GHz / 6.0 Ghz
Data rate: 2.4Ghz: 574Mbps, 5Ghz: 2400Mbps, 6Ghz: 5800Mbps
Compatible with FIPS, FISMA
Standard: IEEE802.11.ax, IEEE802.11.ac, IEEE802.11.n, IEEE802.11.b, IEEE802.11.g, IEEE802.11.a
Interface: PCI Express X1 slot and USB 9Pin
Product Size : 120*87*58MM
Encryption mode: WPA3
Compatible with PCI-E X1 / X4 / X8 / X16 slots
Support OS:
Windows 11
Windows 10
Linux (kernel 6.5 or above)
Windows 10
Linux (kernel 6.5 or above)
Environment:
Operating Temperature: 0 ℃-80 ℃
Relative Humidity:50%-90%(non-condensing)
Storage Temperature: -10℃-80℃

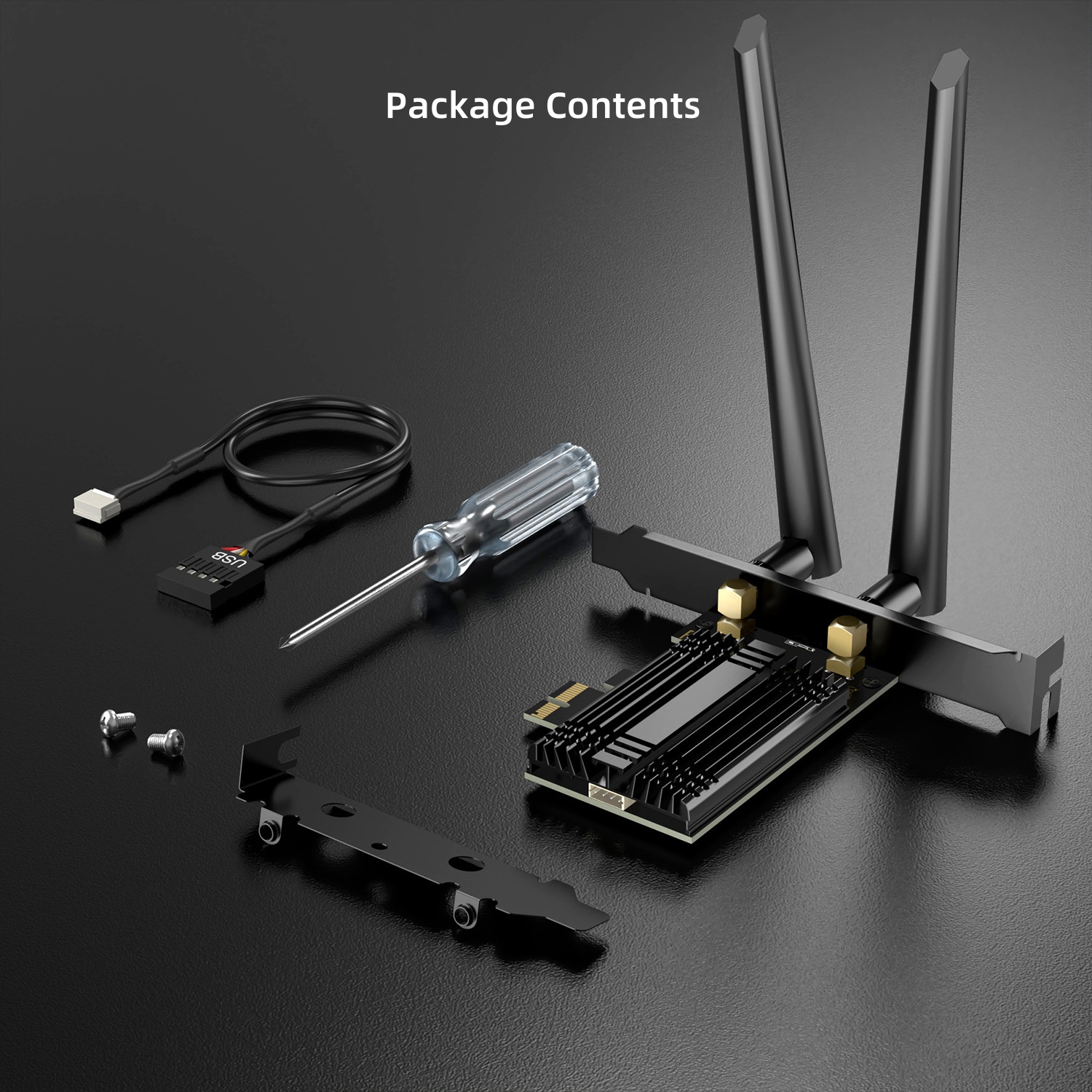

Relative Humidity: 5%-90%(non-condensing) Package Contents: 1 * Wifi PCI-E X1 Card 1 * BT 9Pin Cable 1 * Low Profile Space Bracket 2 * Screws 1 * Screwdriver 2 * Antenna Only the above package content, other products are not included. Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
