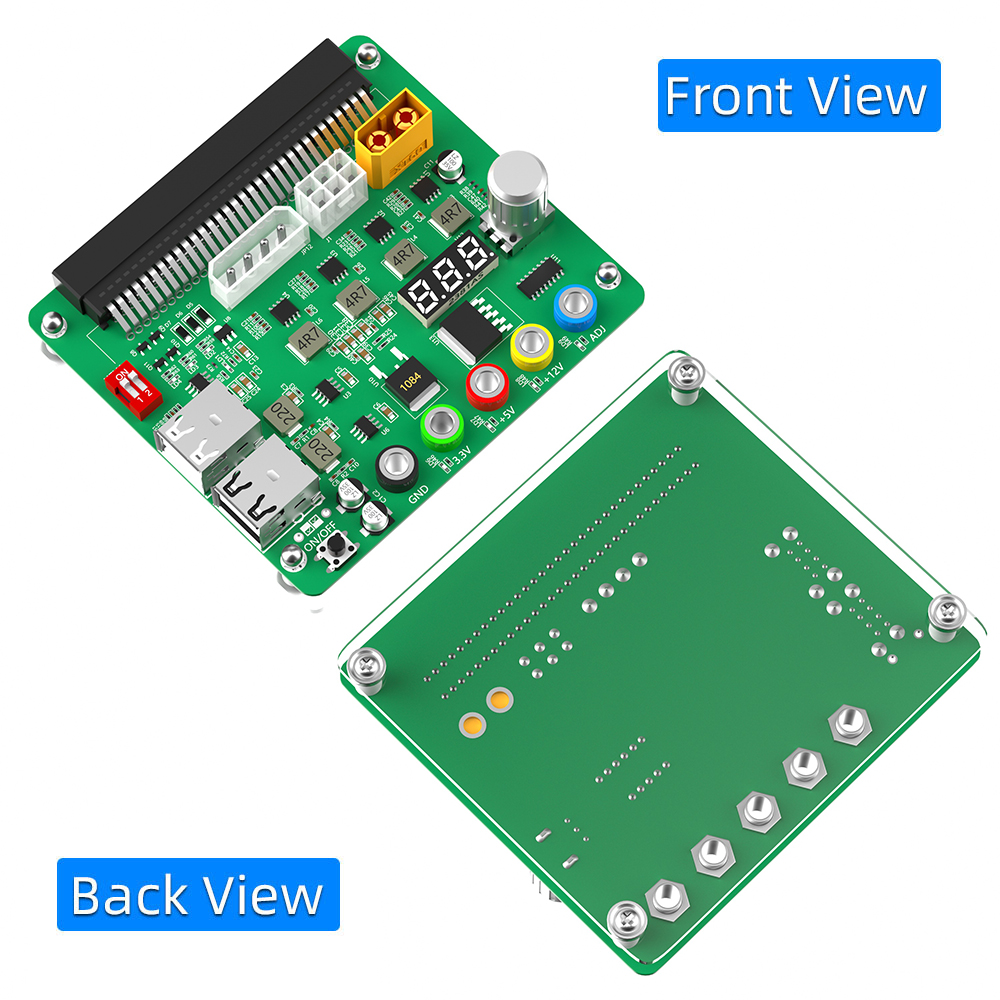

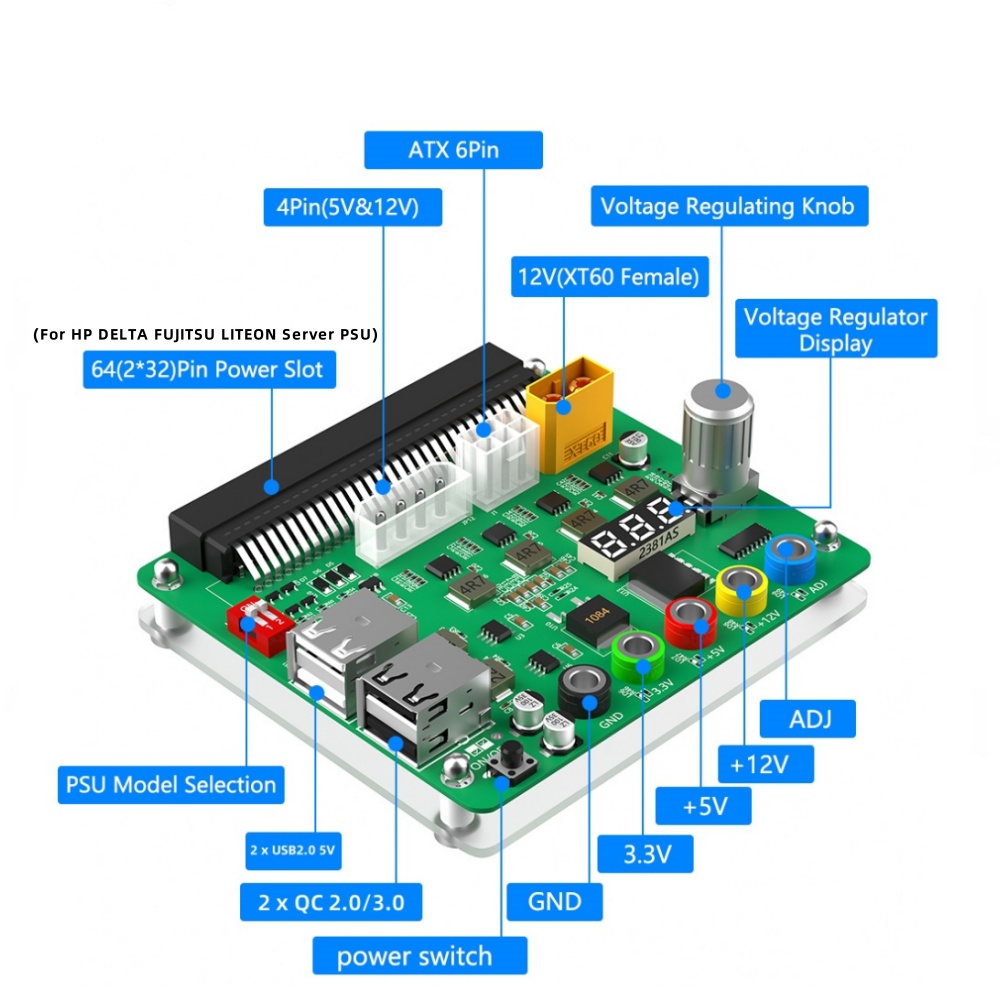

1. This power supply breakout board, with ADJ adjustable voltage knob, supports 3.3V, 5V, 12V and 1.8V-10.8V (ADJ) output voltage.
2. 4 USB 2.0 ports design, supports QC 2.0/QC 3.0.
3. The voltage output terminals correspond to each screw terminal.
4. At the same time, the bottom panel is also equipped with an acrylic case kit for easy to use.
5. Compatible with 3.3V: STM32 MCU, network communication equipment, such as Wi-Fi Bluetooth and other devices, generally for microcontrollers, and some low-power modules, etc. 5V: Raspberry Pi, Banana Pi, Tinker Board, Nano Pi, USB interface, etc.
6. Compatible with 9V: Arduino, motor drive, display driver module, etc. 12V: motor drive, LED light, vehicle equipment with power requirements less than 24w, etc.

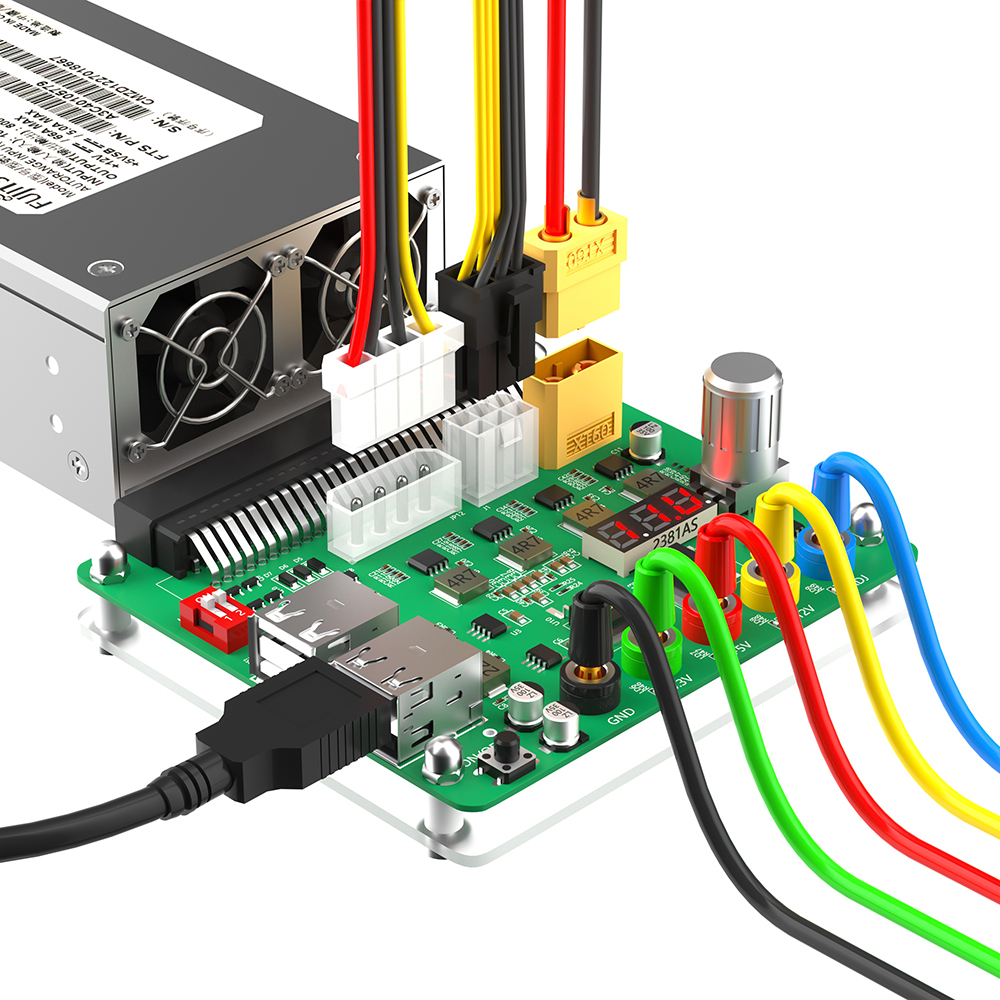

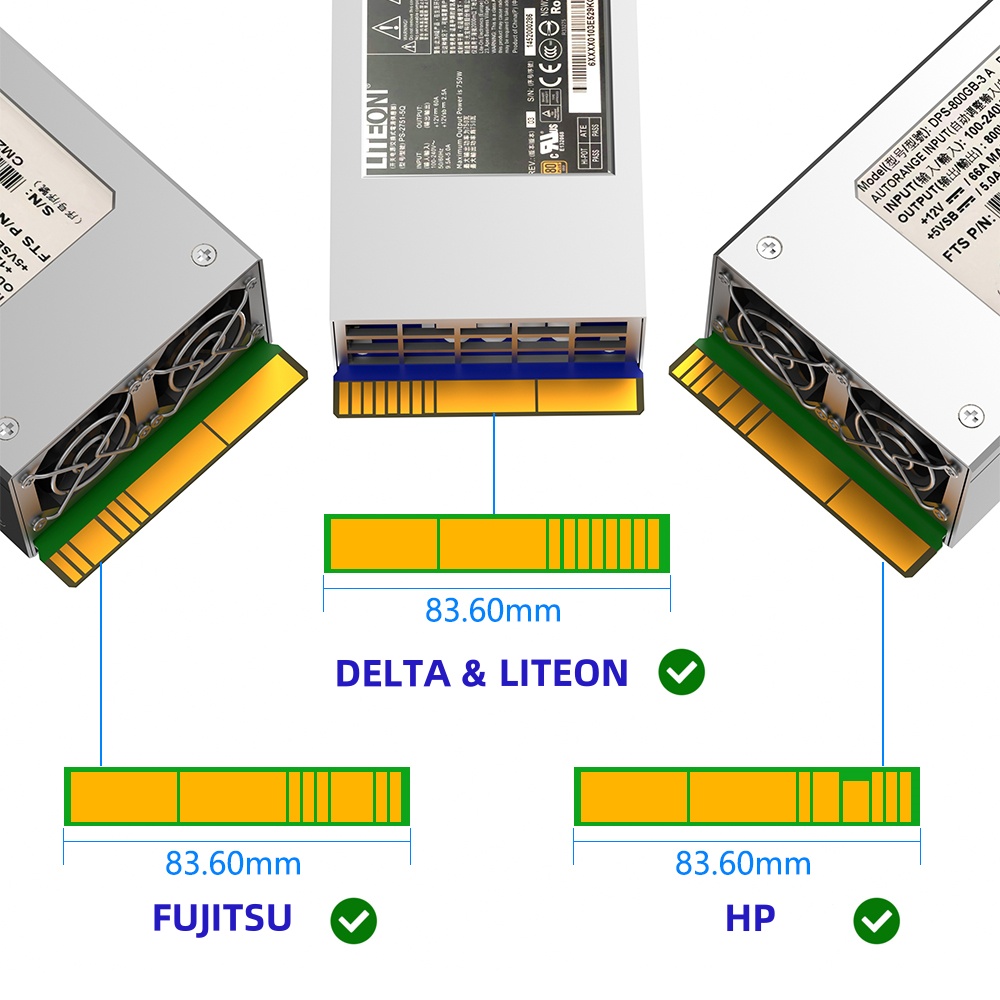

7. This Breakout Board is only suitable for the following model of HP DELTA FUJITSU LITEON server power supply
DPS-800GB A DPS-1200FB A DPS-1200QB A PS-2751-5Q PS-2751-LF-1F HSTSN-PL12 DPS-700LB D PS-2112-5L DPS-750RB A FUJITSU brand: DPS-800GB-5A / DPS-800GB-3A

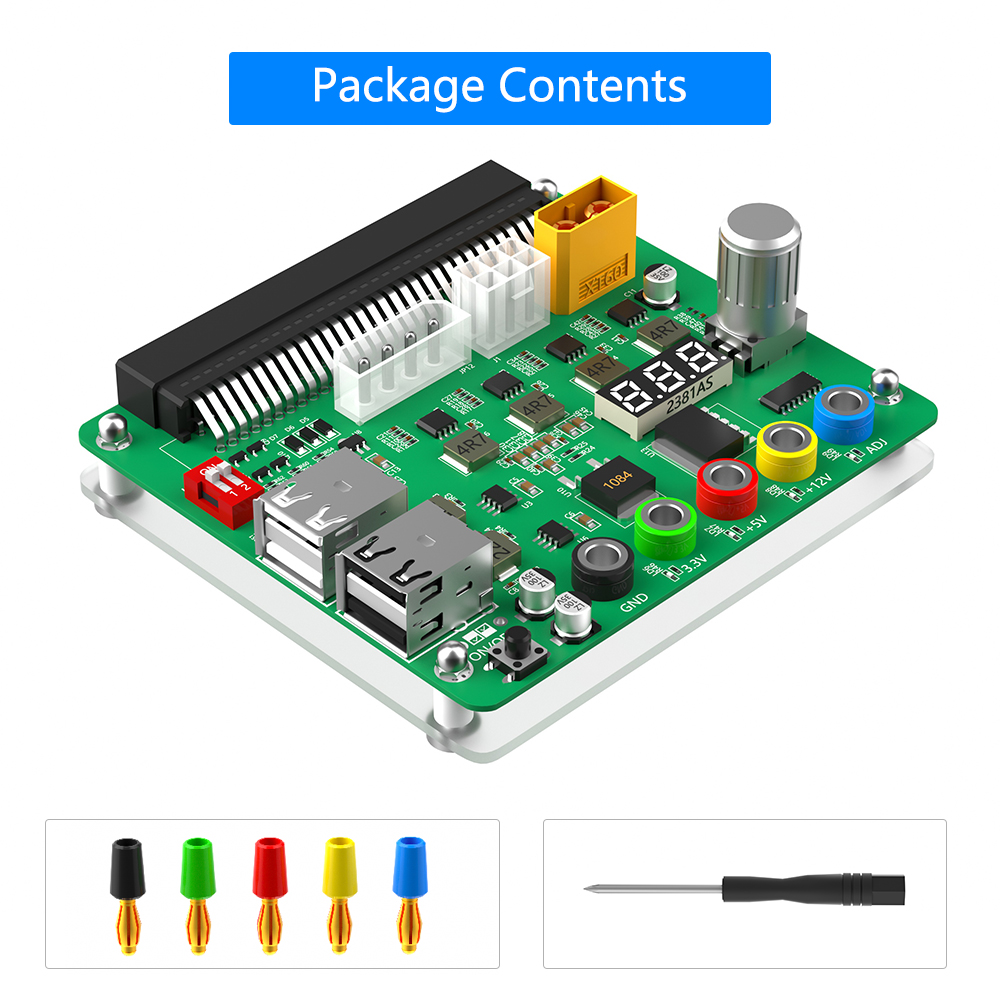

Package Contents
1 x Breakout Board Adapter
1 x Screwdriver 5 x Male Banana Plug
