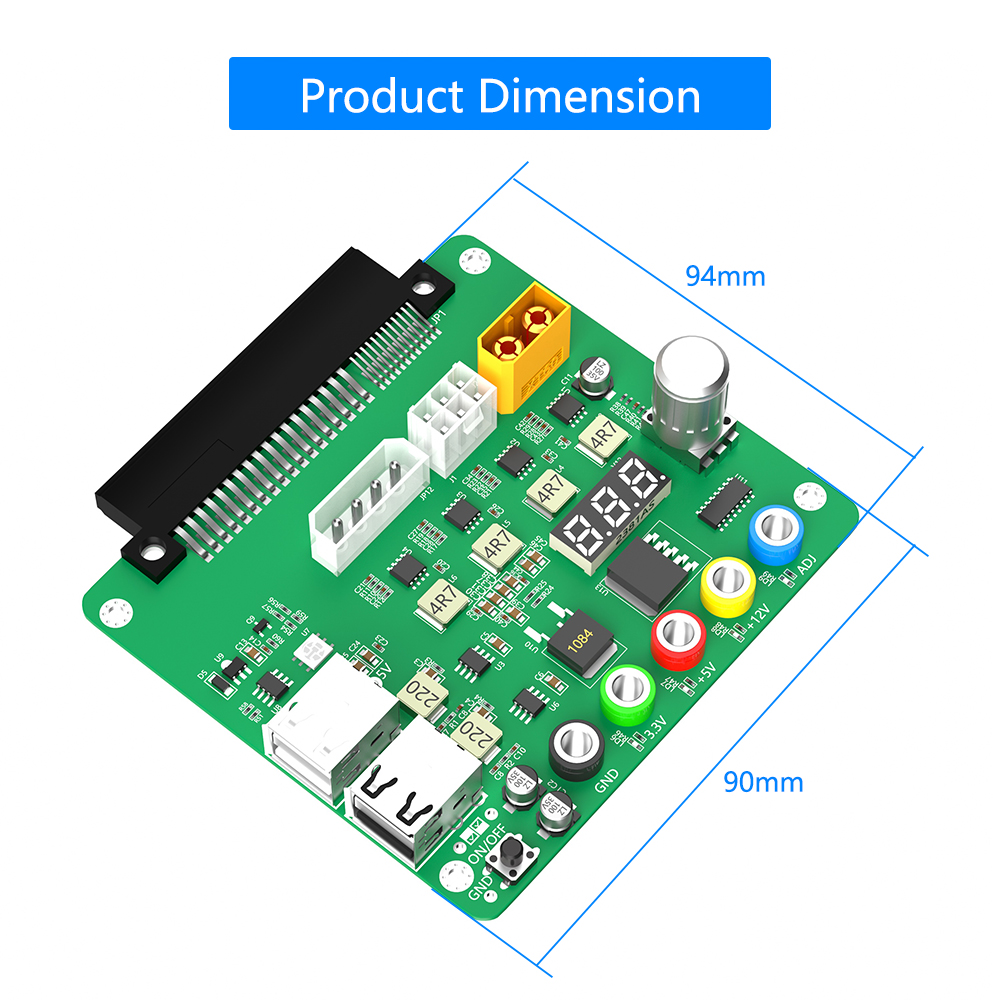

1. This power supply breakout board, with ADJ adjustable voltage knob, supports 3.3V, 5V, 12V and 1.8V-10.8V (ADJ) output voltage.
2. 4 USB 2.0 ports design, supports QC 2.0/QC 3.0.
3. The voltage output terminals correspond to each screw terminal.

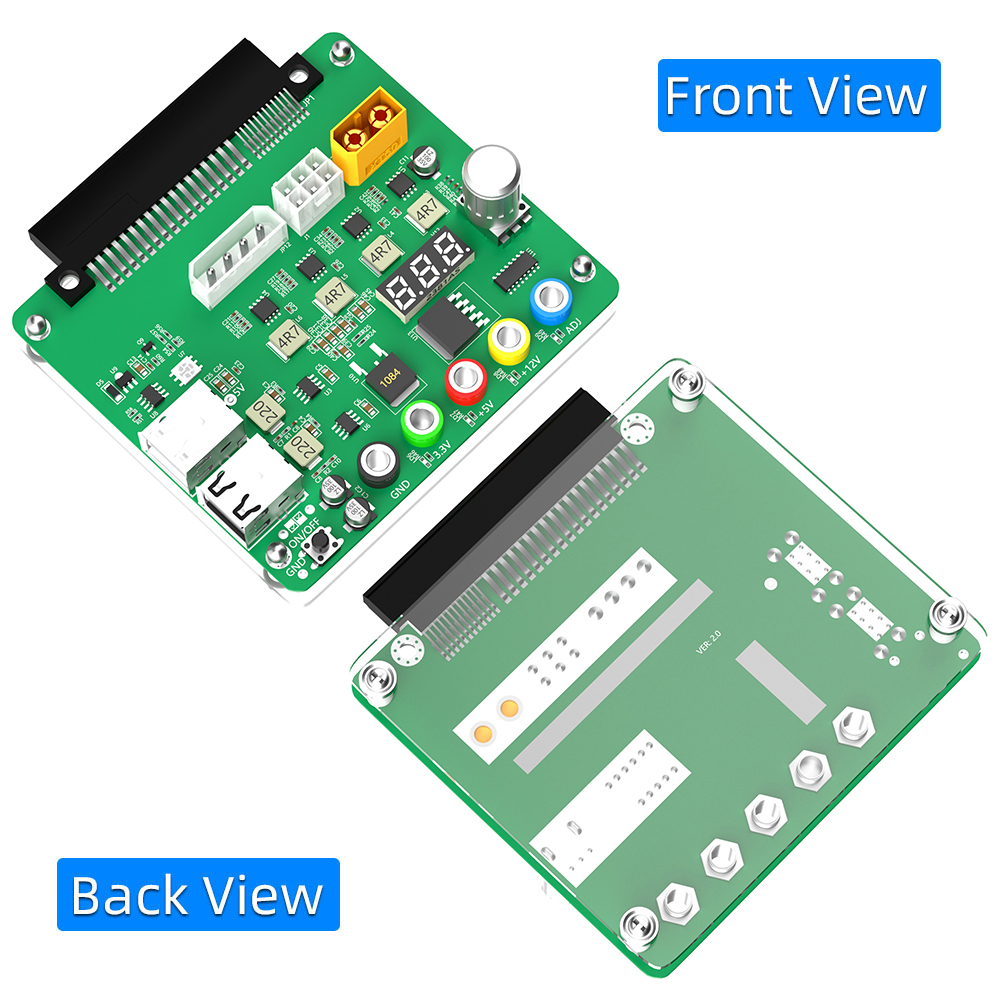

4. At the same time, the bottom panel is also equipped with an acrylic case kit for easy to use.
5. Compatible with 3.3V: STM32 MCU, network communication equipment, such as Wi-Fi Bluetooth and other devices, generally for microcontrollers, and some low-power modules, etc. 5V: Raspberry Pi, Banana Pi, Tinker Board, Nano Pi, USB interface, etc.
6. Compatible with 9V: Arduino, motor drive, display driver module, etc. 12V: motor drive, LED light, vehicle equipment with power requirements less than 24w, etc.

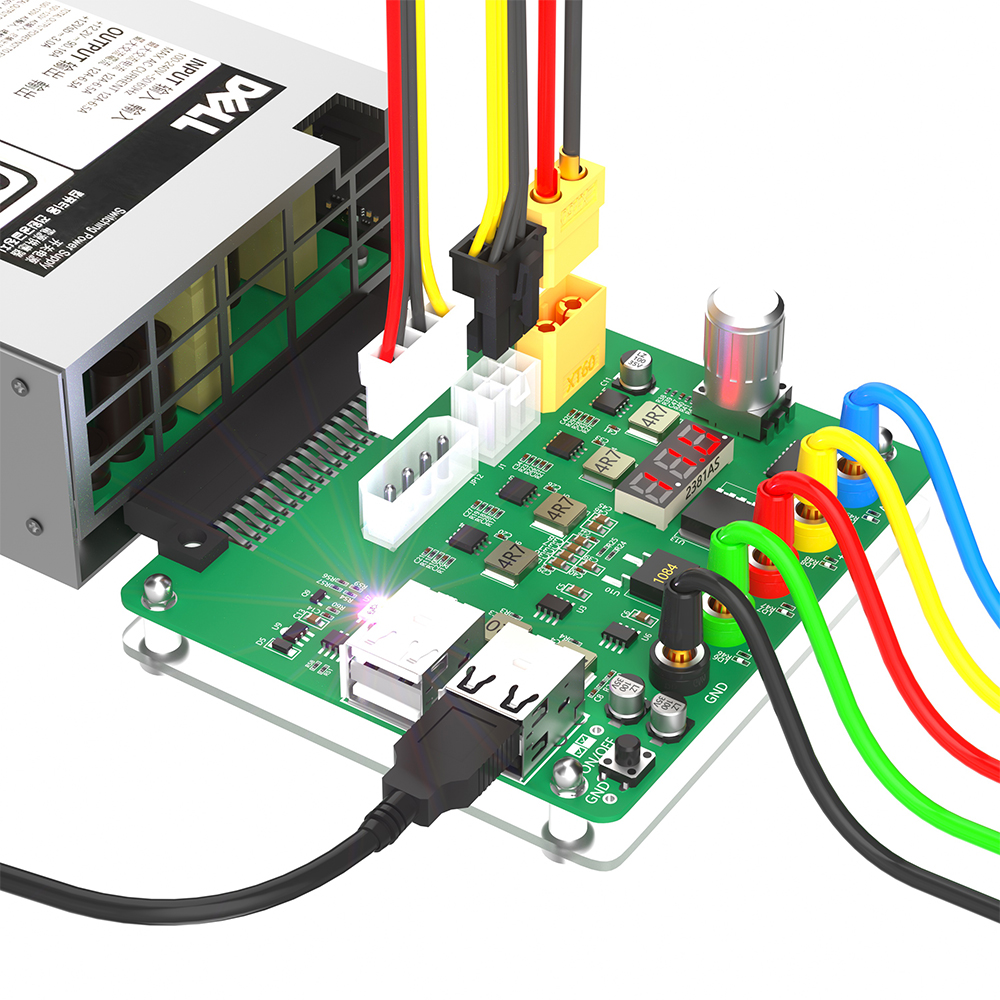

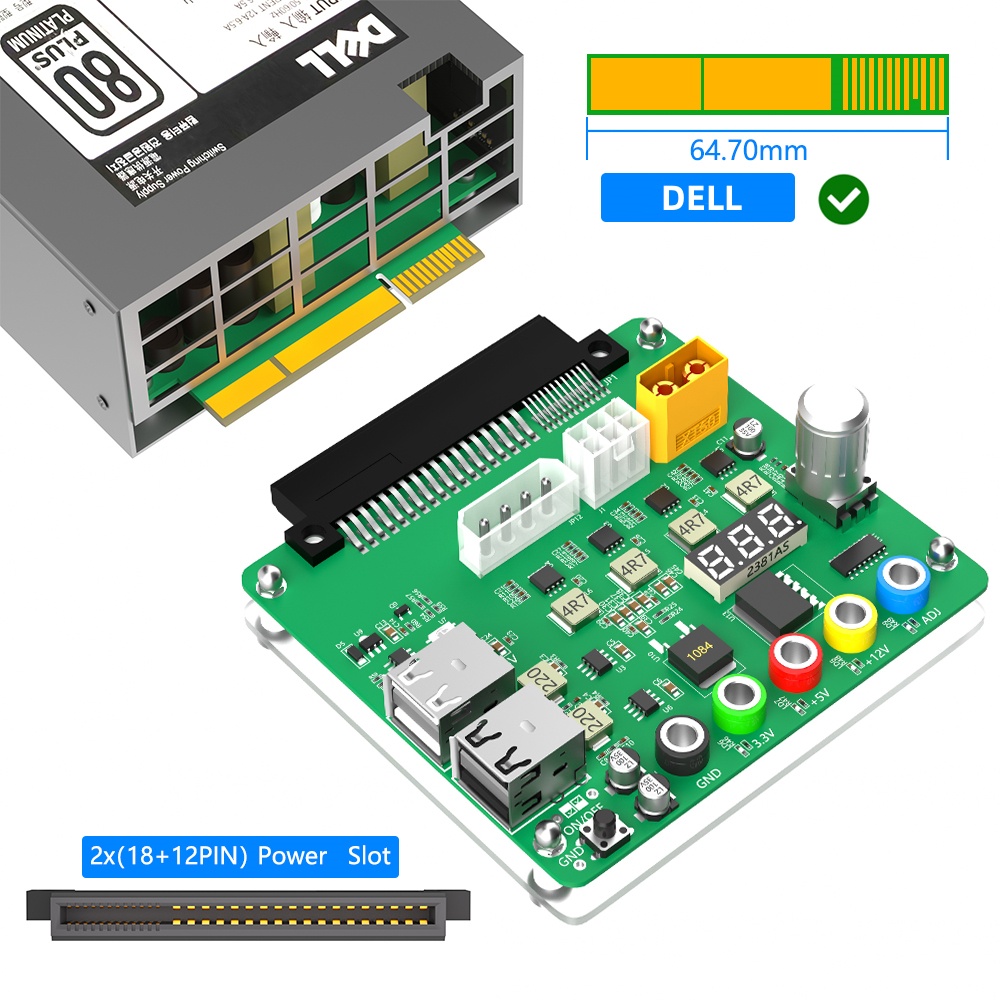

7. This board is only suitable for Dell brand PSU and the following model listed.
750 Watt Platinum Rated 94% Efficiency 110-240v:D750E-S1, DPS-750AB-2 A, 05NF18 D750E-S6, DPS-750AB-15B, 05RHVV E750E-S1, 700-013536-0100, 00XW8W F750E-S0, S-0750ADU00-101, 06W2PW L750E-S0, PS-2751-13D-LF, 0W8R3C
750w Watt Titanium Rated 96% Efficiency 200-240v:D750E-S7, DPS-750AB-17 A, 0KNHJV
1100 Watt Platinum Rated 94% Efficiency 110-240V:D110E-S0, DPS-1100BB B, 0PR21C E1100E-S0, AA26510L, 0YT39Y L1100E-S0, PS-2112-4D2-LF, 038GYJ L1100E-S1 , PS-2112-8D2, 09TMRF
1050w @ 100-120V input
1100w @ 200-240V input
2000 Watt Platinum Rated 94% Efficiency 110-240V:D200E-S2, DPS-2000EB-2 A, 0960VR
1000w @ 100-120V input
1750w @ 200-205V

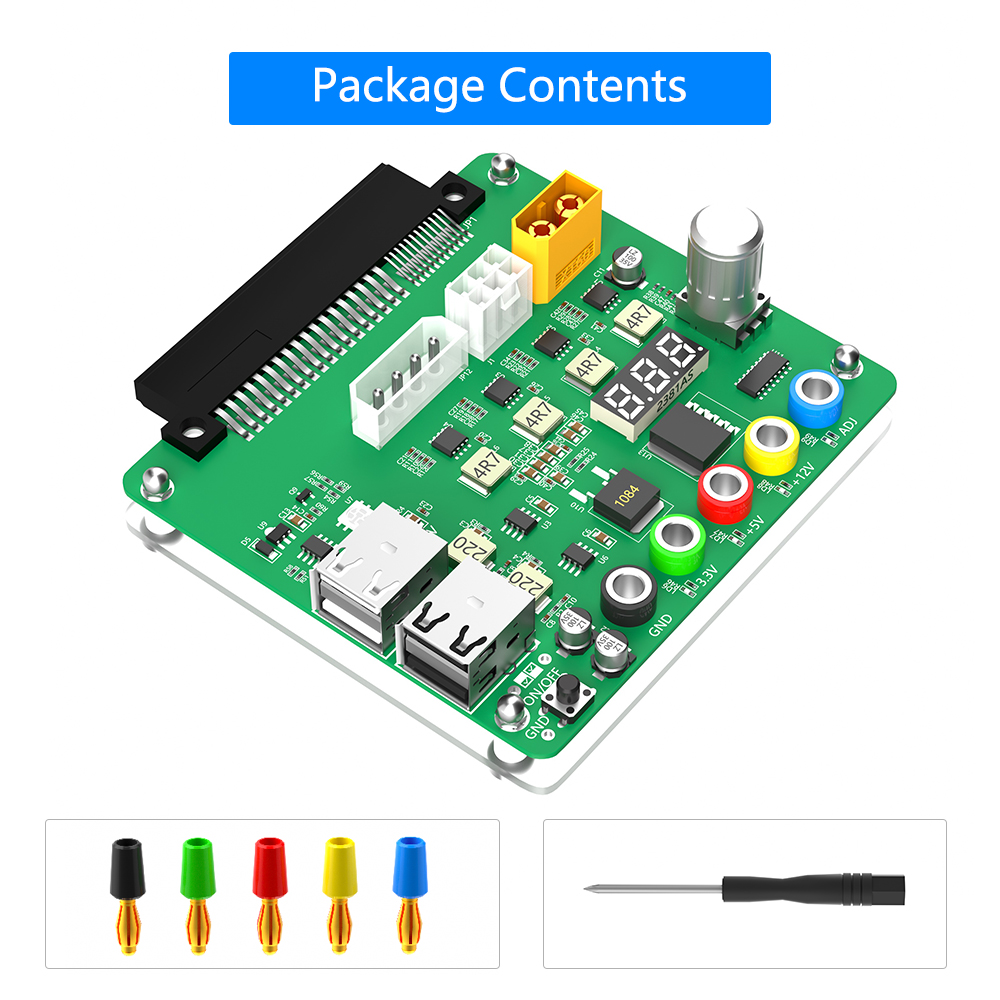

Package Contents
1 x Breakout Board
1 x Screwdriver
5 x Male Banana Plug
