Description

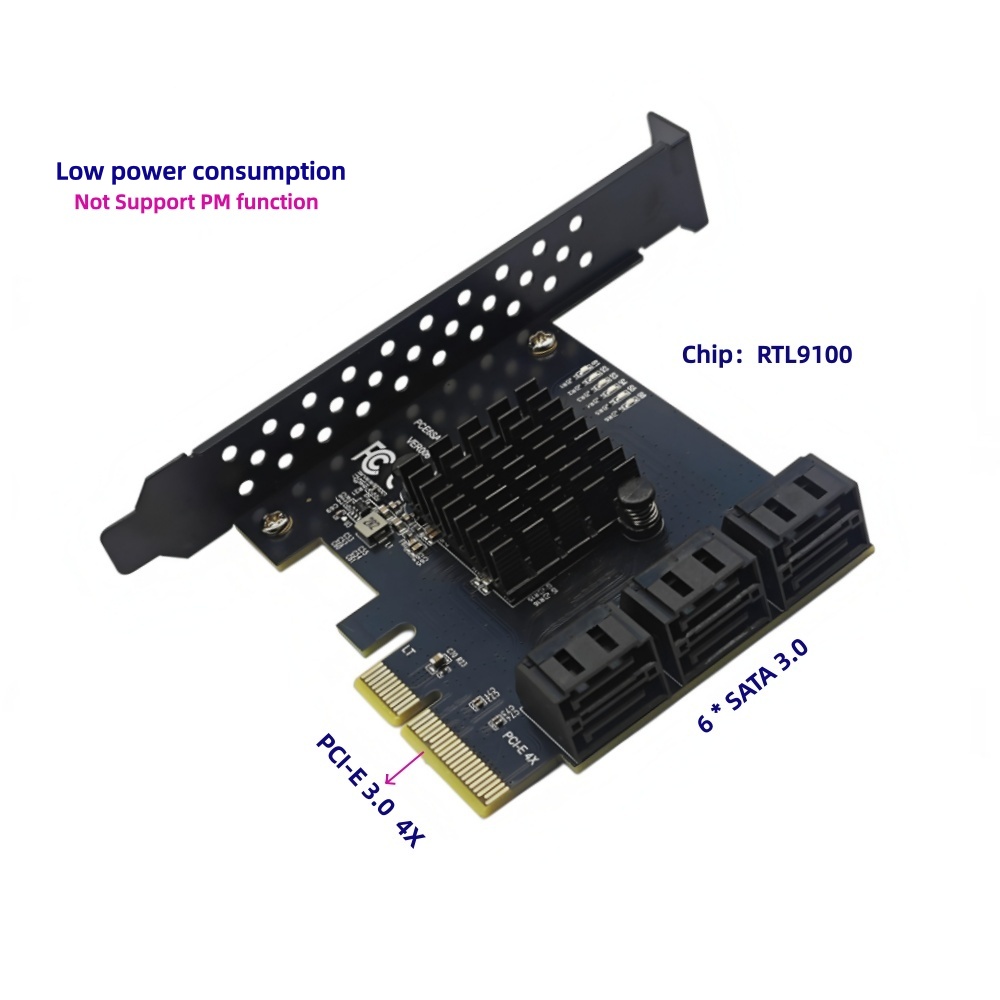

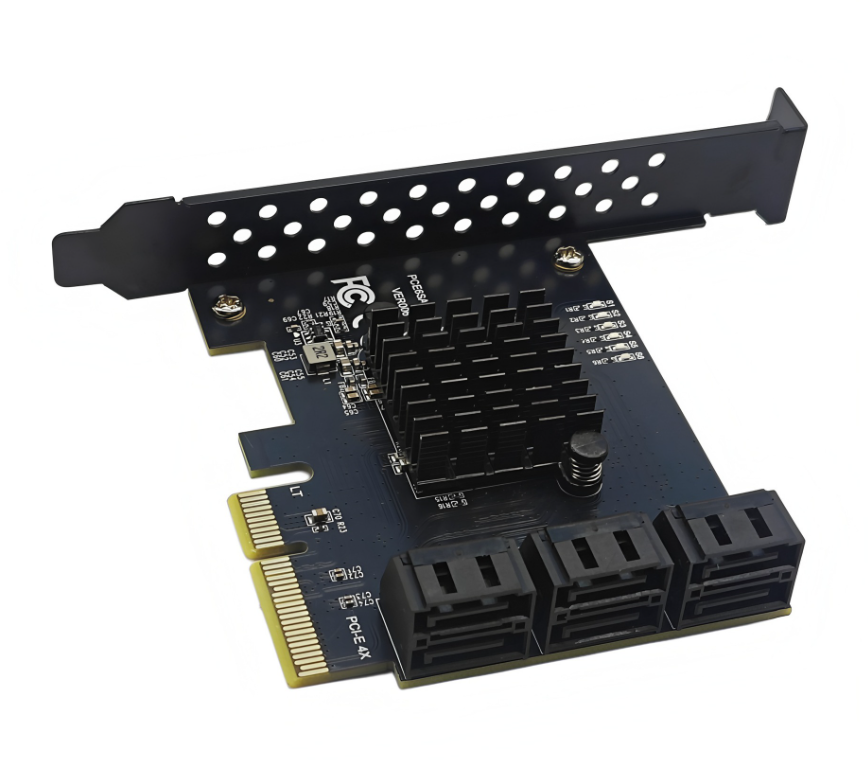

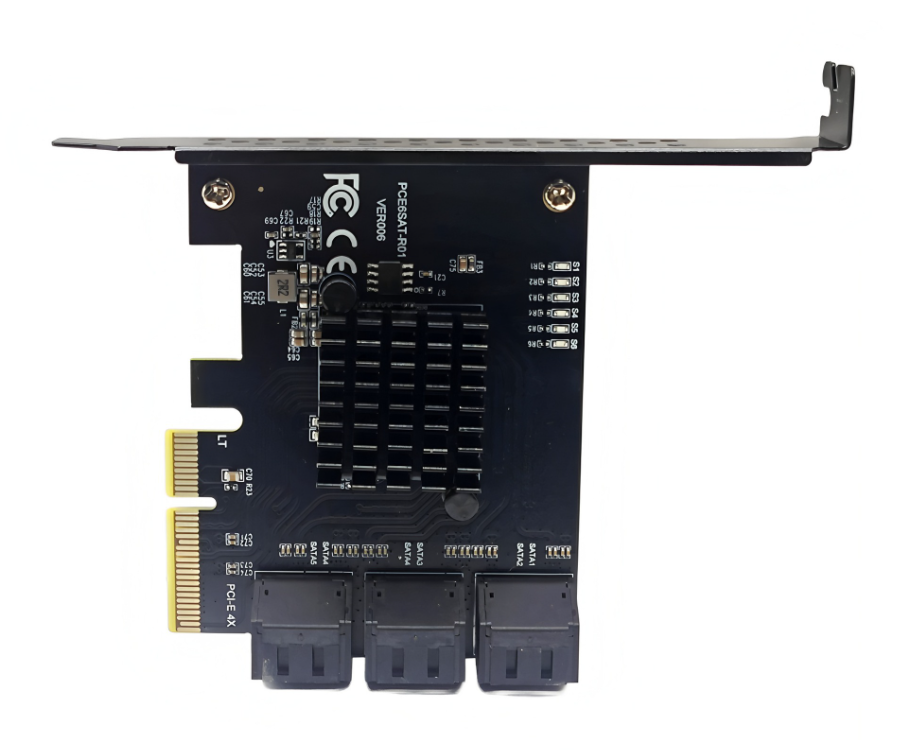

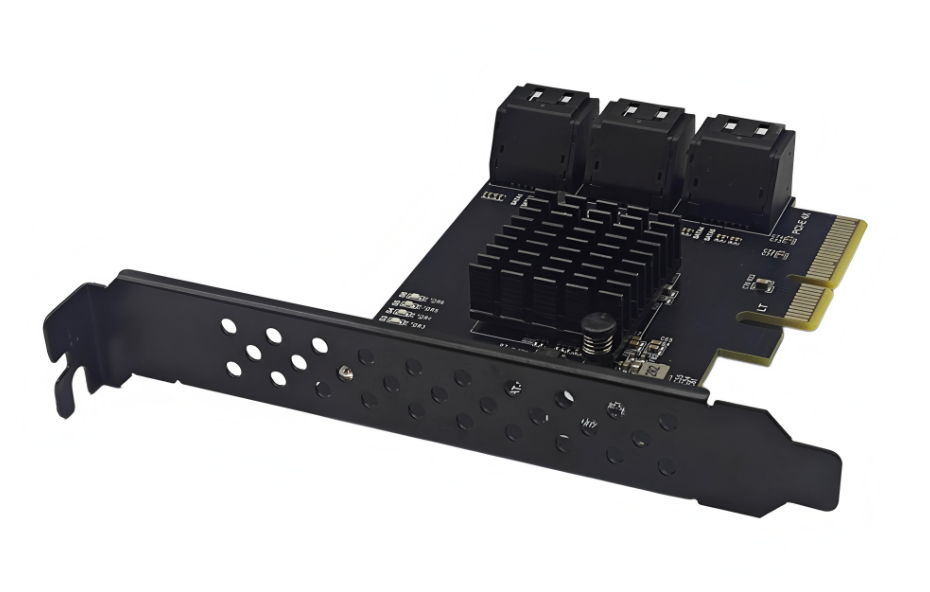

Specifications: Expansion of 6 SATA 3.0 6G interface array cards through PCI-E3.0 4X GEN3 slot Does not support hardware RAID mode, only software RAID Product Size: 120*85*67.8MM Features:
Chip: RTL9100 Compliant with PCI-Experss specification V3.0 and backward compatible PCI-Express 4X Compliant with Serial ATA Specification 3.0 The supported communication rate is 6.0 Gbps, 3.0 Gbps and 1.5 Gbps Support Max 20TB Hard Disk Hot swap and hot swap. Support native command queue (NCQ) Support FIS switch based on port multiplier switch or command. Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i
Not Support PM Function Compatible with SATA 6G, 3G and 1.5G hard drives. Can only be used in PCI Express x1, x4, x8 and x16 slots System Requirements: One PCI Express X4 Slot is Available, Supporting Both PCI-E X4/X8/X16 Operating System: Windows 11/10/8/7 (32/64 bit), Linux...etc Package Includes: 1 x 6 Ports SATA 3.0 (6Gbps) PCI-E 4x Controller Card 1 x Low Profile Bracket
