Description
Feature:
1. Compliant with Serial ATA Specification 3.1
2. Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
3. Hot plug and Hot Swap.
4. Supports Native Command Queue (NCQ)
5. Supports AHCI 1.0 programming interface registers for the SATA controller
6. Supports aggressive power management
7. Supports error reporting ,recovery and correction
8. Supports Message Signaled Interrupt (MSI)
9. Supports Programmable transmitter signal levels
10. Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i
11. Supports Port Multiplier FIS based switching or command based switching.
12. Supports 4 SATA devices
13. Supports Partial and Slumber Power Management states
14.Supports Staggered Spin-up
15. Compatible with SATA 6G, 3G and 1.5G Hard Drives.

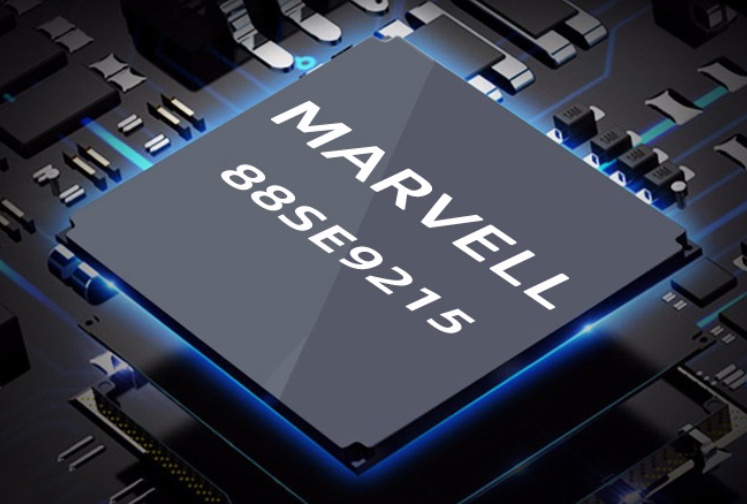

16. Marvell 88SE9215 Chip
Note: Not Supported RAID on PM

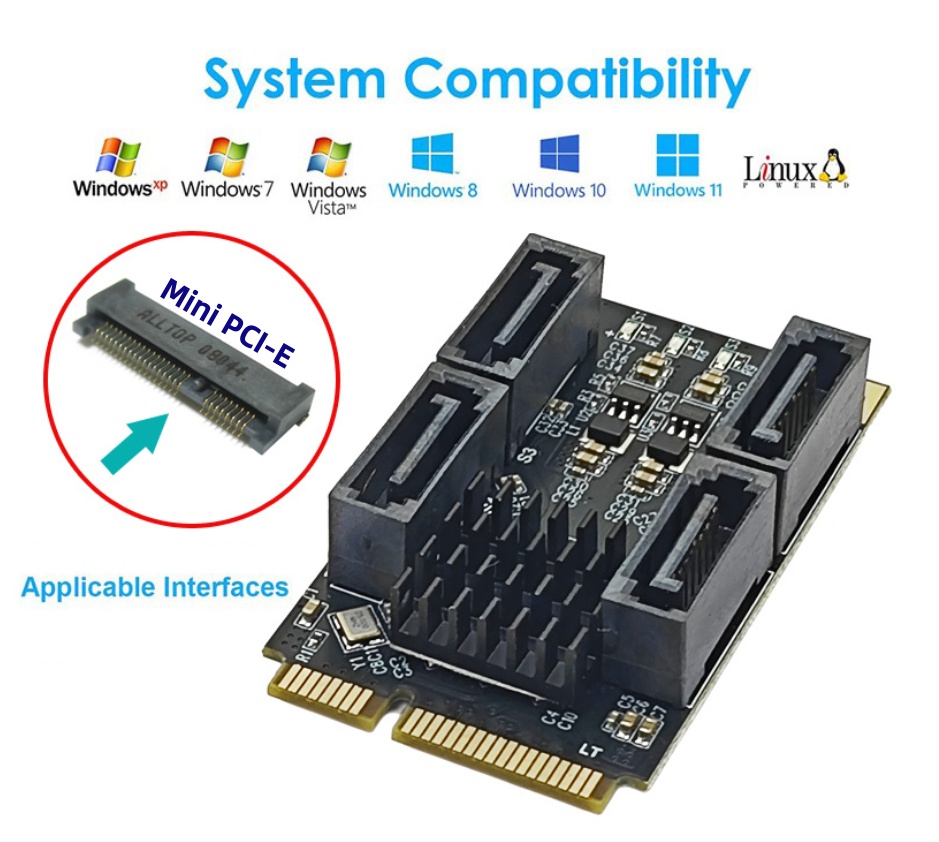

System Requirements: Supports Windows 7/8/10/11 Server 2003/2008 R2, Linux 2.6.x and above
You'll receive:

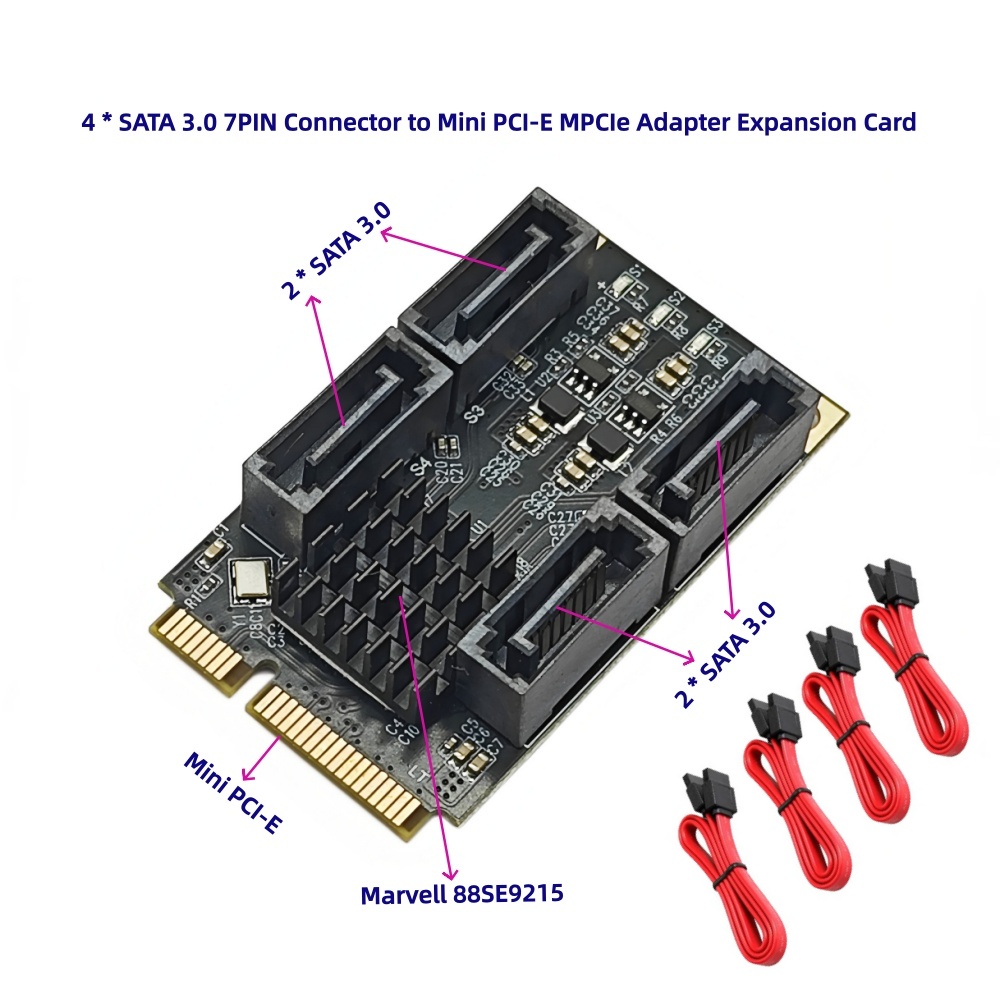

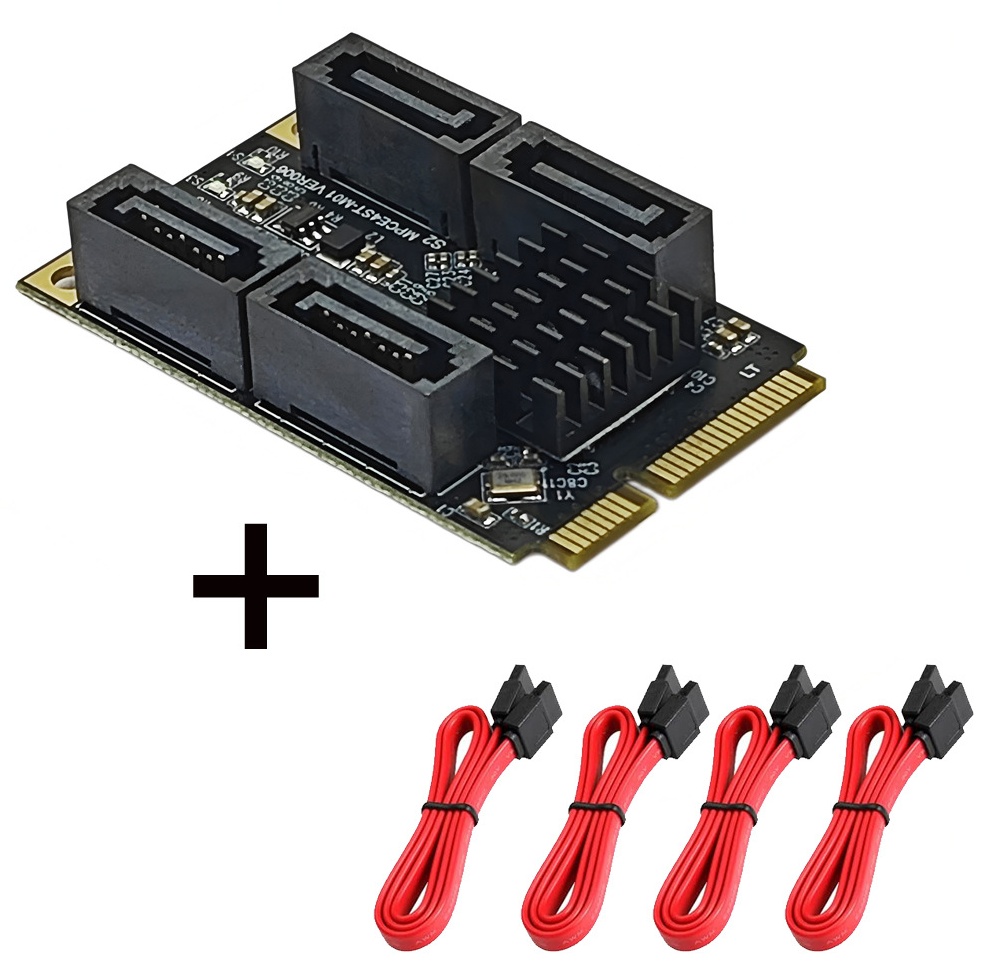

1 x Mini PCIE to 4-Port SATA3.0 Expansion Card
