Description
Tips:

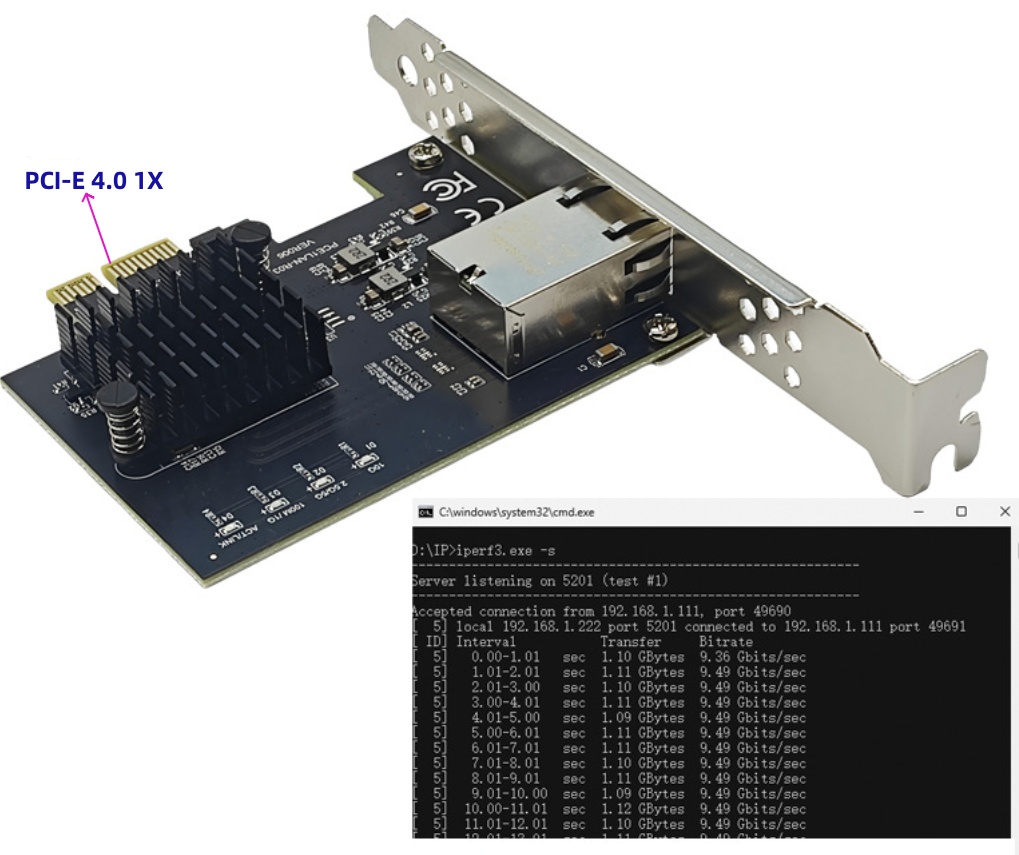

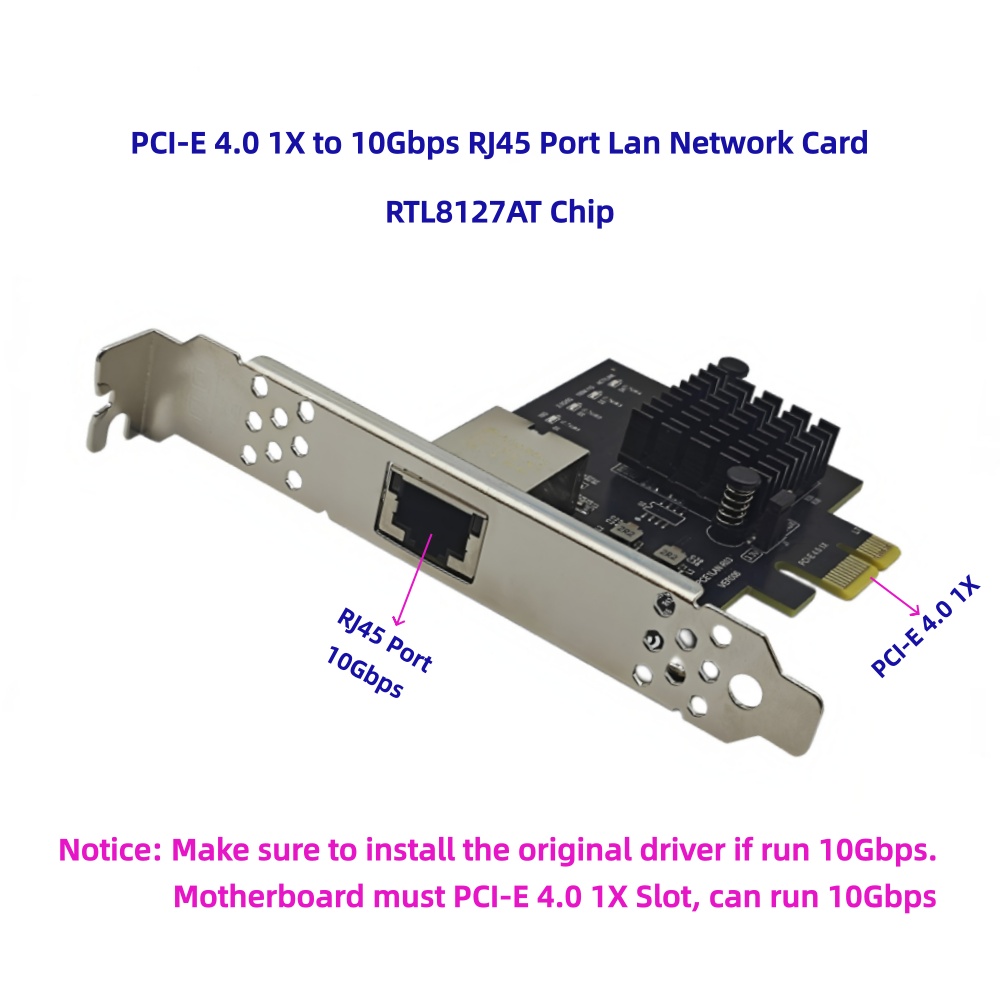

1. If you need to achieve aspeed of 10Gbps, you need to install the driver of the network card itself first, and cannot use the system built-in driver.
2. The motherboard must support PCIe 4.0 to achieve a speed of 10Gbps.
3. NOT Support XP/WIN7 System, Only Support Win10/11/Linux OS.
Feature
Chipset: Realtek RTL8127AT
Interface: PCI-E 4.0 X1
Transfer Rate: 10Gbps/5Gbps/2.5Gbps/1Gbps/100Mbps
Power Consumption (Typical): 10G(1.79W), 5G(1.37W), 2.5G(1.21W),1G(0.92W),
Supported Standards: IEEE 802.3az, 802.3an, 802.3u, 802.3ab, 802.3bz
VLAN Support: 802.1Q VLAN, 802.1ad Double VLAN, 802.1P Priority
PTP: IEEE 1588v1/v2 Precision Time Protocol
Synchronous Ethernet: Supported
Special Features: Wake-On-LAN, PTP IEEE 1588v1/v2, VLAN support, Jumbo Frame 16KB Operating
System Support: Windows 10/11, Linux 2.4.x and above
You will receive:

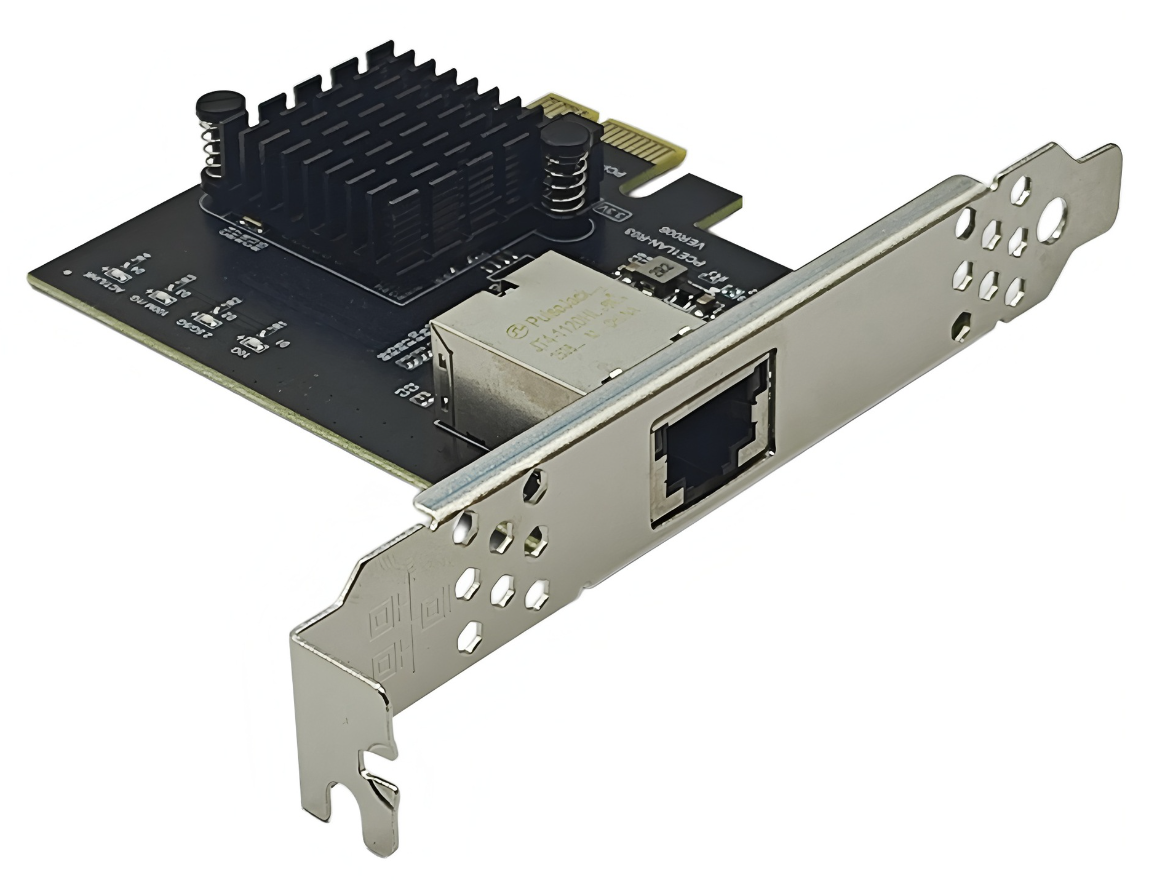

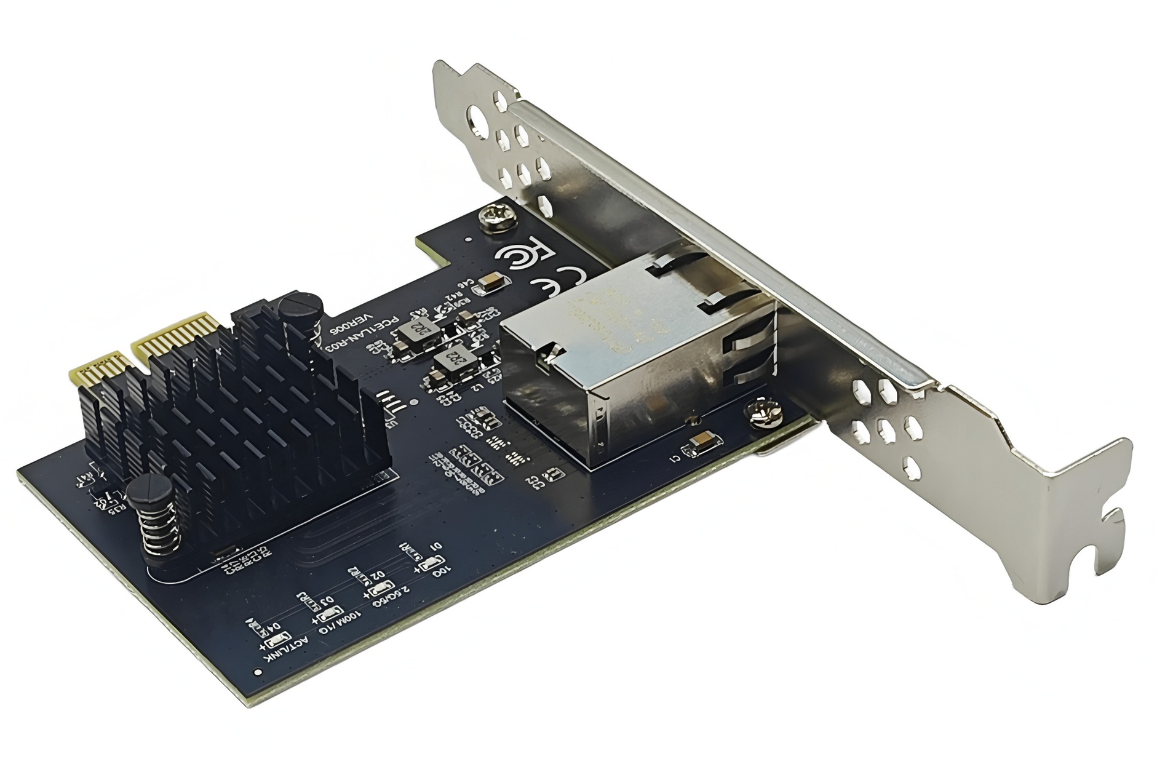

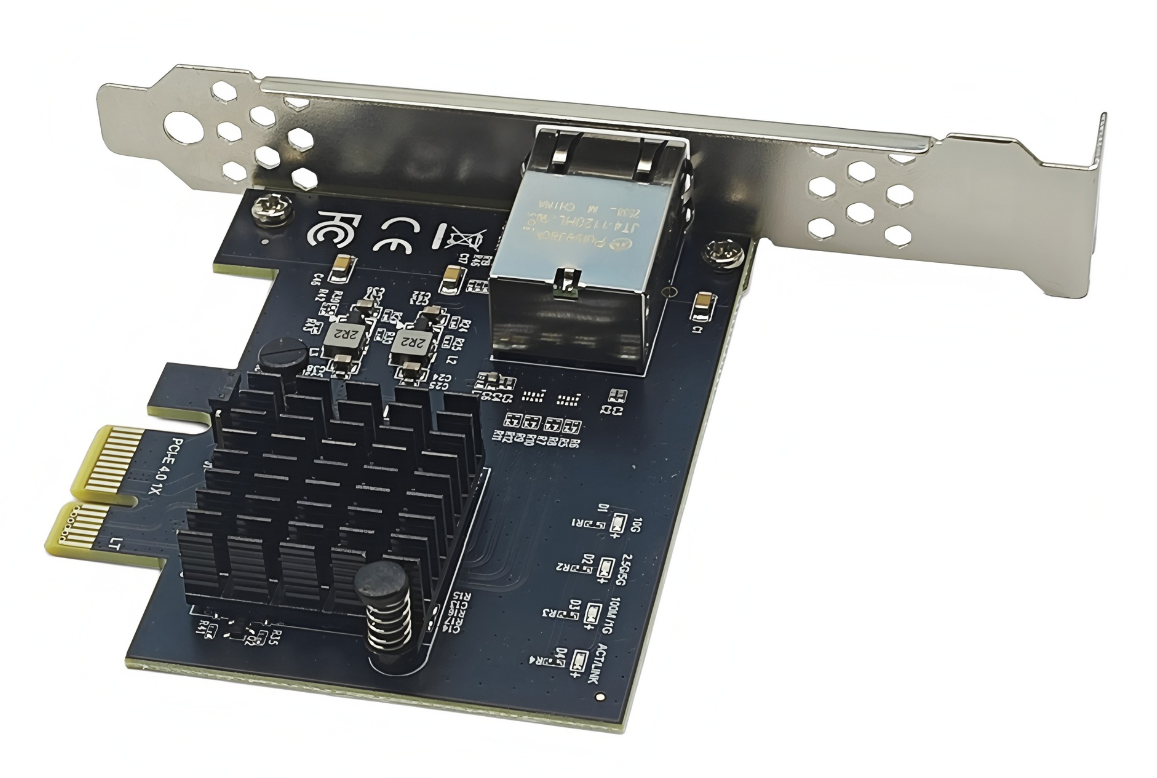

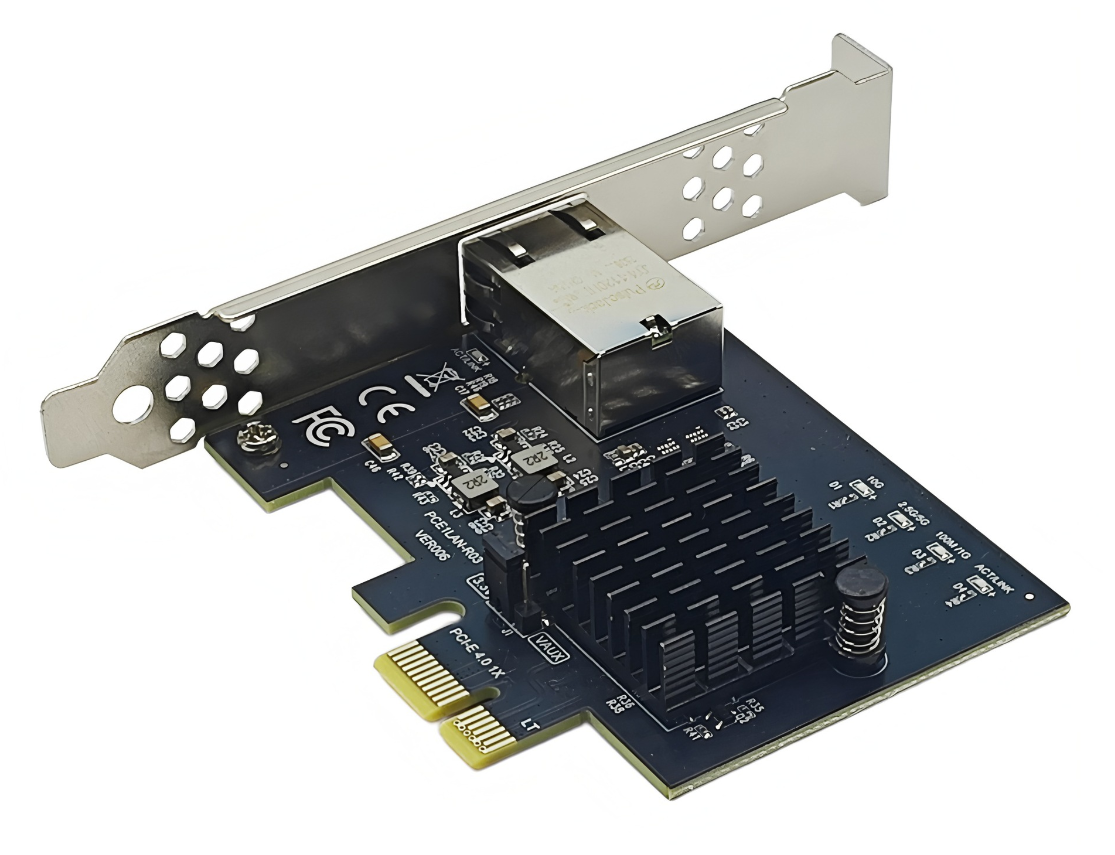

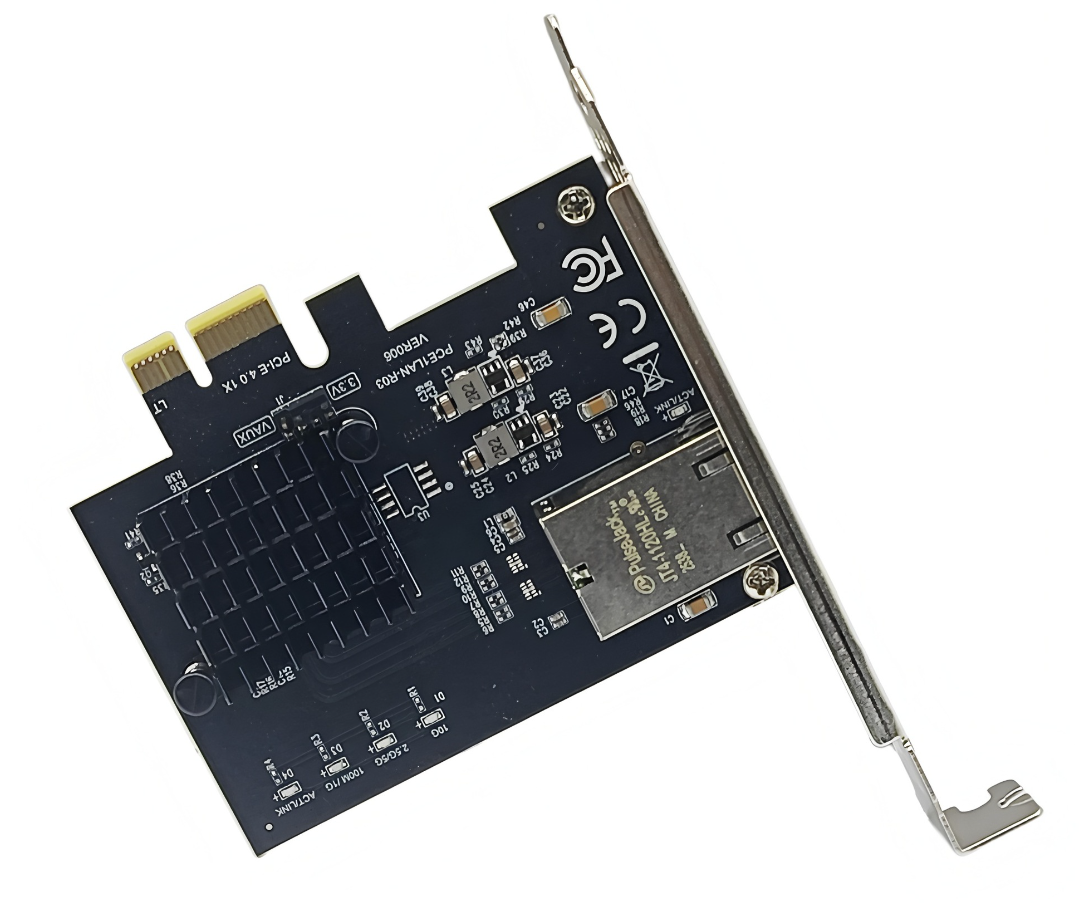

1 x PCI-E 4.0 X1 to RJ45 10Gbps Network Card
1 x Low Profile Bracket
